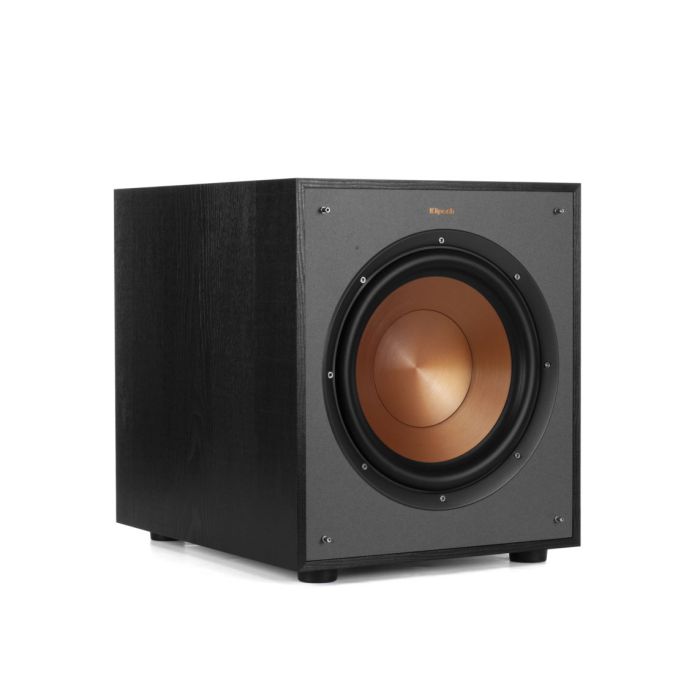

SPUN COPPER IMG WOOFER
Injection Molded Graphite (IMG) woofers are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion.
The built-in, all-digital amplifier delivers ample power with high efficiency and true-to-source accuracy in reproduction, ensuring maximum efficiency for maximum output, detail, and power.
The high-performance driver provides deep bass and room placement flexibility.
LOW PASS CROSSOVER AND PHASE CONTROL
Ensures the subwoofer’s low-frequency tones blend with other Klipsch speakers and establish the ideal level of bass for your room.
Ensures compatibility with home theater receivers.
MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless integration into any décor.
FRONT-MOUNTED LED POWER INDICATOR
Indicates when the system is on or off.
LOW PROFILE GRILLE
Adds a refined look that is acoustically transparent.
- 10" Front-Firing Spun-Copper IMG Woofer
- All-Digital Amplifier with 300 Watts Peak Power
- Volume, Low Pass Crossover and Phase Control
- Line Level/LFE RCA Inputs for Maximum Receiver Compatibility
- Dimensions: 14.5" x 12.5" x 16.4"
- Black Textured Wood Grain Vinyl
FREQUENCY RESPONSE 32Hz - 120Hz +/- 3dB MAXIMUM ACOUSTIC OUTPUT 112 dB AMPLIFIER All Digital AMPLIFIER POWER (CONT/PEAK) 150W/300W AMPLIFIER FEATURES Volume, Low-pass, 0/180 phase, Auto Power On DRIVER COMPONENTS 10” high excursion spun-copper IMG woofer ENCLOSURE MATERIAL MDF ENCLOSURE TYPE Bass-Reflex via rear-firing port INPUTS Line level/LFE RCA jacks HEIGHT 14.5” (368 mm) WIDTH 12.5” (318 mm) DEPTH 16.4” (417 mm) WEIGHT 24 lbs (10.9 kg) FINISHES Black Textured Wood Grain Vinyl BUILT FROM 2018
