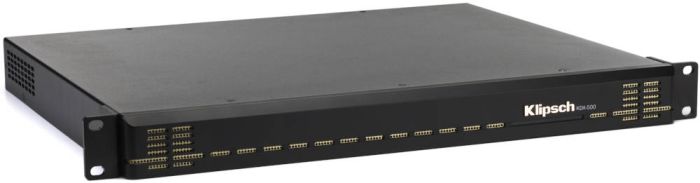

The Klipsch KDA Series DSP Amplifiers offer legendary Klipsch power and performance in a sleek, high-tech, 1 rack unit solution. The KDA- 500 offers 500W of class G/H power, for clean, dynamic power in any type of install.
HIGH PERFORMANCE POWER PLATFORM
The Klipsch KDA Series DSP Amplifiers offer legendary Klipsch power and performance in a sleek, high-tech, 1 rack unit solution. The KDA-500 offers 500W of class G/H power, for clean, dynamic power in any type of install.
70V / 100V / LOW IMPEDANCE COMPATIBILITY
From small residential systems to massive commercial installs, the Klipsch KDA-500 is designed for maximum install flexibility – offering low impedance and 70V/100V compatibility for distributed line applications. These impedance settings are fully independant from channel to channel – so an installer can run one channel low impedance with another channel 70V/100V for full customization and optimization of their system.
The KDA-500 boasts fully matrixed 4x4 I/O with fully balanced Phoenix connector inputs and Phoenix speaker outputs capable of connecting up to 12 gauge wire. For non-balanced connections, RCA inputs and outputs (throughs) are also built-in, making the
KDA-500 one of the most flexible power solutions on the market today.
STATE-OF-THE-ART DSP CONTROL AND SET-UP
The myriad I/O, impedance, and acoustic settings are fully matrixed and customizable through the web-based DSP menu - simply plug in a laptop computer to the RJ-45 port on the back panel of the amplifier, enter the assigned IP address into your favorite web browser to pull up the easy-to-use, streamlined menu page. In addition to password protected channel assignments, gain settings, EQ, and limiting, the DSP provides presets for almost every Klipsch speaker on the market – optimizing acoustic performance and power handling for these products with a single click. Accessing the DSP wirelessly with a tablet, smartphone, or computer is also quick and easy when the KDA amplifier is plugged into the network’s wireless router.
- 500W Total System Power (4 x 125W)
- High performance power platform
- 70V / 100V / Low Impedance Compatibility
- Flexible I/O
- State-of-the-art DSP control and set-up
- High Efficiency Class G/H
- 500W Total System Power
- 4x 125W per channel
- 4x Phoenix Line Level (Up to 12 AWG Wire)
- 4x RCA Line Level
- 4x Phoenix Speaker Level (Up to 12 AWG Wire)
- 4x RCA Line Level (Throughs)
- 750mV Balanced, 0dBU
- Balanced 40kohm
- <1% @ Rated Output
- -100dB Below Rated Output
- Front Face: ABS Plastic
- Case: Machine Formed Steel
- 6.82 Kgs
- Removable 1RU Rack Ears
- Removable Rubber Feet
