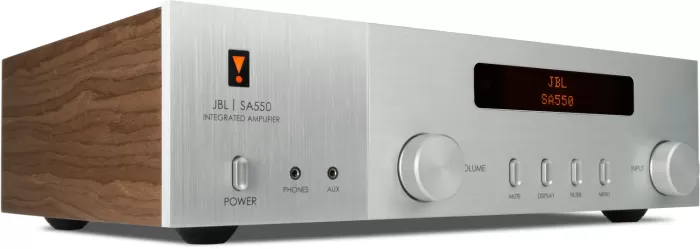

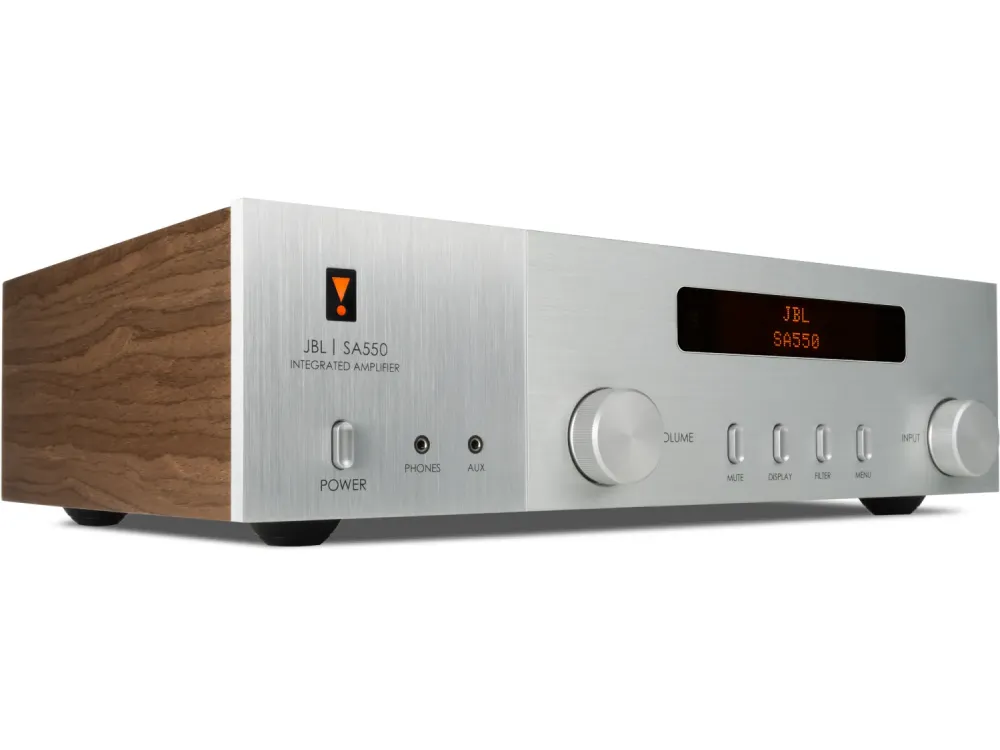

JBL SA550 Classic Integrated Amplifier

Integrated Amplifier with Bluetooth

$3,999.00

The JBL SA550 Classic is inspired by the classic JBL SA600 amplifier from the 1960’s, with retro styling and walnut veneer side panels to match JBL Classic and Studio Monitor loudspeakers on the outside. On the inside, the JBL SA550 is a music system for today using an advanced amplifier topology with high power output, inventive efficiency, and fine noise control for captivating musicality and effortless power. Straight out of the box, pair your smart phone or tablet to the SA550 Classic with Bluetooth for instant high-quality music from all your music services and libraries that you listen to everyday. The JBL SA550 Classic includes the latest Bluetooth AptX®Adaptive technology for hi-res audio over Bluetooth and low latency to ensure audio is in sync with video. All digital audio is rendered using a reference high resolution DAC with time domain jitter elimination for perfect sound, every time.

Features
  • Advanced Integrated Amplifier with Classic Styling
  • Bluetooth input with Hi-res AptX Adaptive technology
  • Walnut veneer side panels match JBL Classic and Studio Monitor loudspeakers
  • 3 Digital Inputs with Coax and Toslink connections
  • High resolution DAC with ESS ES9038K2M DAC chip
  • 4 analog inputs including MM phono stage
  • Class G amplifier topology for ultra low distortion
  • Power output 90W per channel into 8Ω, 150W into 4Ω
Specification
Power Output (2ch, 0.5% THD)
  • 90W into 8Ω x2
  • 150W into 4Ω x2
  • Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Input Sensitivity
  • 5mV (1kHz, Phono MM)
  • 1V (RCA)
Input Impedance
  • 47kΩ + 100pF (Phono MM)
  • 10kΩ
Frequency Response
  • 20Hz-20kHz ±1dB (Ref. RIAA Curve, Phono MM)
  • 20Hz-20kHz ±0.2dB (RCA)
  • 20Hz-20kHz ±0.05dB (Digital)
Signal to Noise Ratio
  • 80dB Phono (A-wtd, 50W, ref.5mV input)
  • 106dB RCA (A-wtd, 50W, ref. 1V input)
  • 115dB Digital (A-wtd, 50W, ref. 1V input)
Overload Margin
  • ref. 5mV at 1kHz
Supported Bit Depth
  • 16
  • 24
Supported Sample Rates
  • 32kHz
  • 44.1kHz
  • 48kHz
  • 88.2kHz
  • 96kHz
  • 176.4kHz (Coax only)
  • 192kHz (Coax only)
Mains Voltage
  • 110-120V or 220-240V (Swtichable)
  • 50-60Hz
Maximum Power Consumption
  • 500W PEAK
Dimensions
  • 449mm Width
  • 327mm Depth
  • 114mm Height
Weight
  • 12kg
