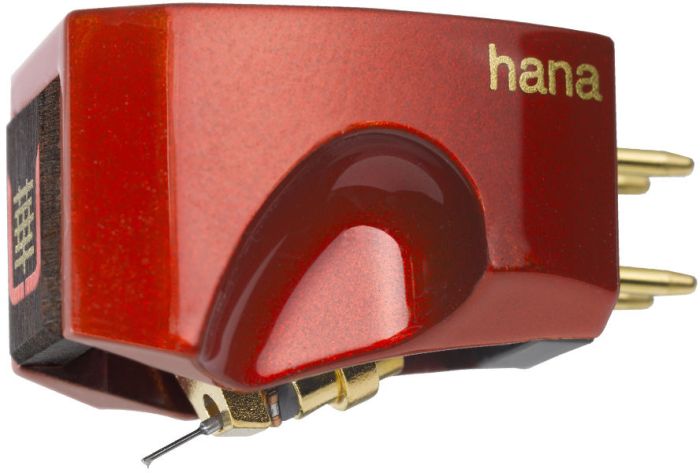

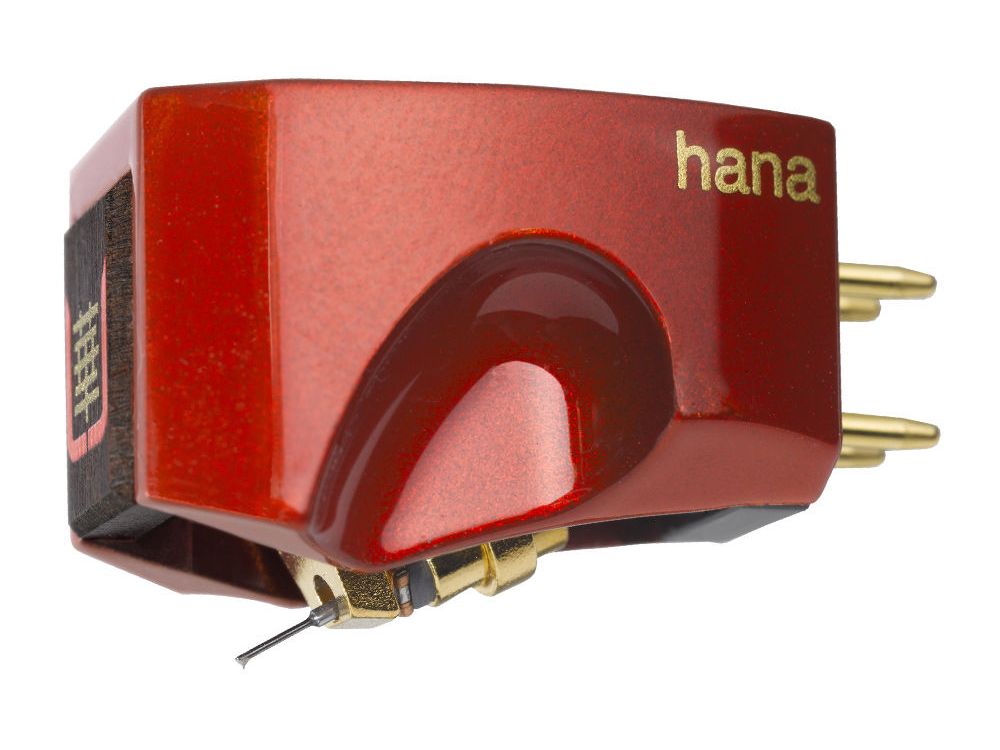

HANA UR Umami Red MC Moving Coil Cartridge

Japanese techniques with modern audio engineering.

$6,600.00

The HANA-Umami Red high-end moving coil cartridge combines brilliant materials and classic Japanese techniques with modern audio engineering. All the major parts in a HANA-Umami Red are manufactured in house by Excel Sound with its rich history spanning more than 50 years. Excel’s highly trained craftsmen skillfully hand made the HANA Umami Red ensuring an intensely musical experience furthering the HANA “Brilliant and Gorgeous” sound quality.

Specification

Body

  • Materials
    • Duralumin (A7075)
    • Ebony Wood
  • Finish
    • Gloss Urushi Lacquer/ Red

Cantilever Assembly

  • Cantilever
    • Boron
  • Stylus
    • Microline Nude Diamond
  • Armature Material
    • Permalloy
  • Armature Shape
    • Square

Magnetic Circuit

  • Parts Material:
    • Pure Iron Magnet
    • Samarium Cobalt
  • Terminal Plate:
    • PEEK (Polyether Ether Ketone)
  • Terminal Pin:
    • 24K Gold Plated

Coil

  • Coil Impedance:
    • 6 Ohm/1KHz
  • Output:
    • 0.4mv/1KHz
  •  Coil Wire Material
    • High Purity Copper
  •  Terminating Impedance:
    • > 60 Ohm

Treatment

  • Cryo-genic

Specification

  • Frequency Response:
    • 10-50,000Hz
  • Output Balance
    • 0.5dB/1KHz
  • Channel Separation:
    • >30dB/1KHz
  • Tracking Force Weight:
    • 2g
  • Trackability:
    • 70µm/2g
  • Dynamic Compliance:
    • 10 x 10(-6) cm/dyne (100Hz) Estimated: 16 x 10(-6) cm/dyne (10Hz)
  • Cartridge Weight:
    • 10.5g
