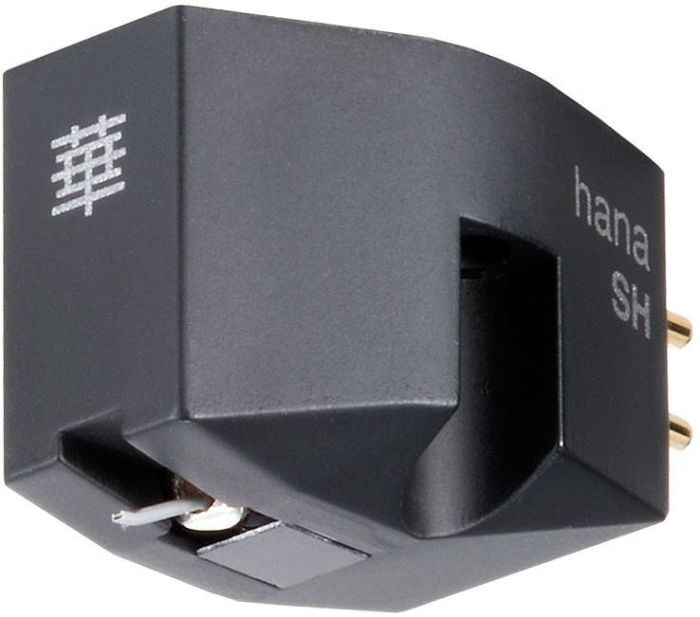

HANA SH MC High Output Moving Coil Cartridge

Low cost, high performance, high output Moving Coil cartridge with nude natural diamond Shibata-stylus.

$1,195.00

The Hana SH Moving Coil cartridge has a nude natural diamond Shibata-stylus, and use high rigidity aluminium cantilevers with cross-shaped armatures offering supreme transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in black.

The SH (Shibata High output) offers 2.0mv/1KHz output.

Specification

Model

  • Hana SH

Stylus

  • Nude Diamond Shibata

Cantilever

  • Aluminium

Output Level

  • 2mV/1kHz

Output Balance

  • <1.5dB/1kHz

Vertical Tracking Force

  • 2 gr.

Trackability

  • 70μm/2gr.

Channel Separation

  • 28dB/1kHz

Frequency Response

  • 15~32,000Hz

Impedance

  • 130Ω/1kHz

Suggested Load Impedance

  • 47kΩ

Cartridge Weight

  • 5 gr.

Body Color

  • Black
