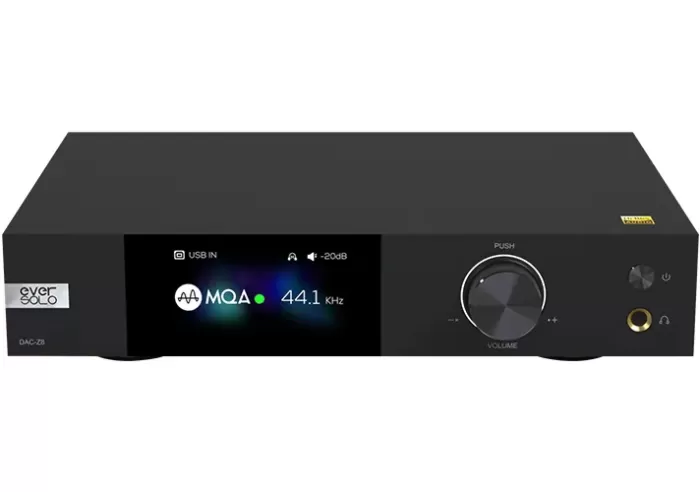

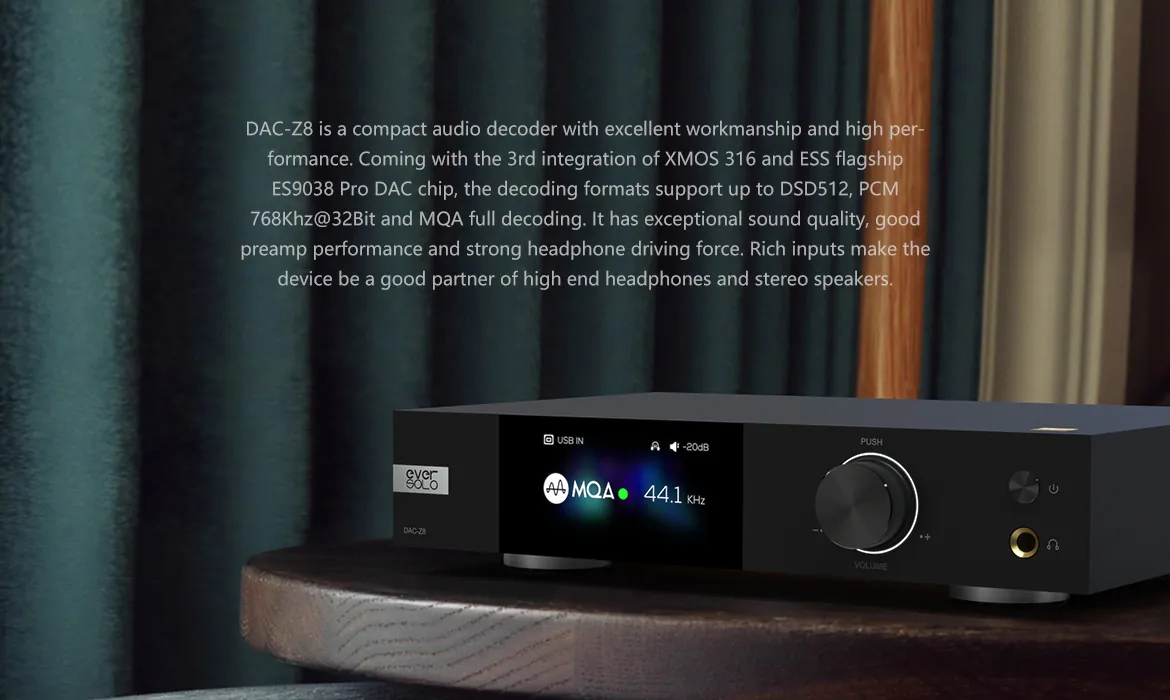

EVERSOLO DAC Z8 Digital to Analogue Converter

Digital to Analogue converter with screen, balanced output, and headphone amplifier.

$1,199.00






















Features

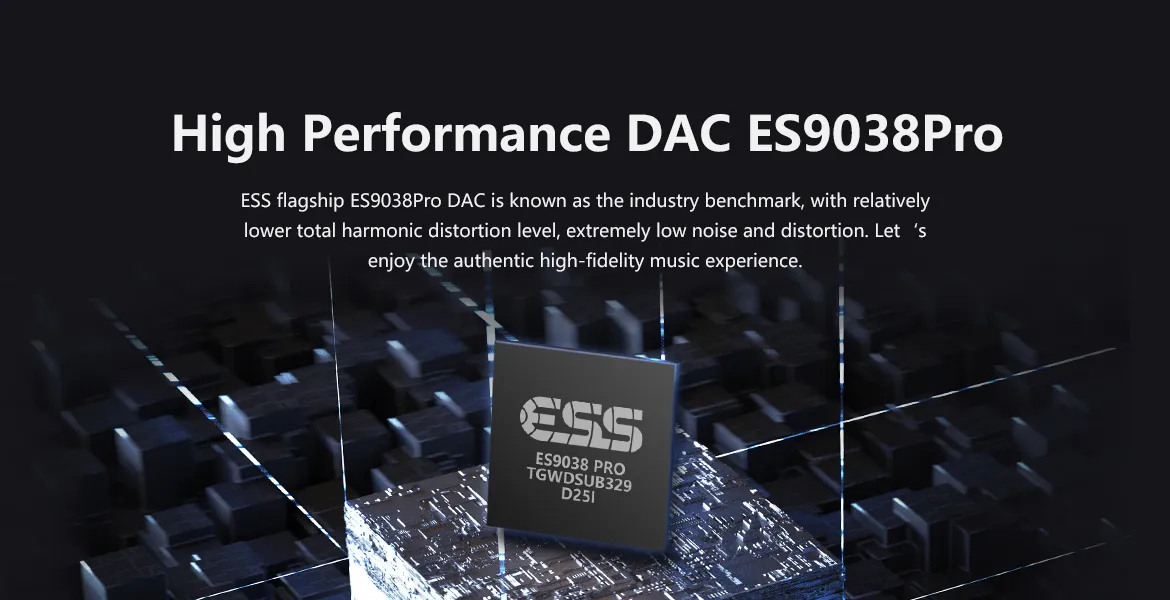

  • ESS Sabre flagship ES9038Pro 32 bits D\A converter chip.

  • The 3rd generation XMOS XU316 with higher performance and faster speed.

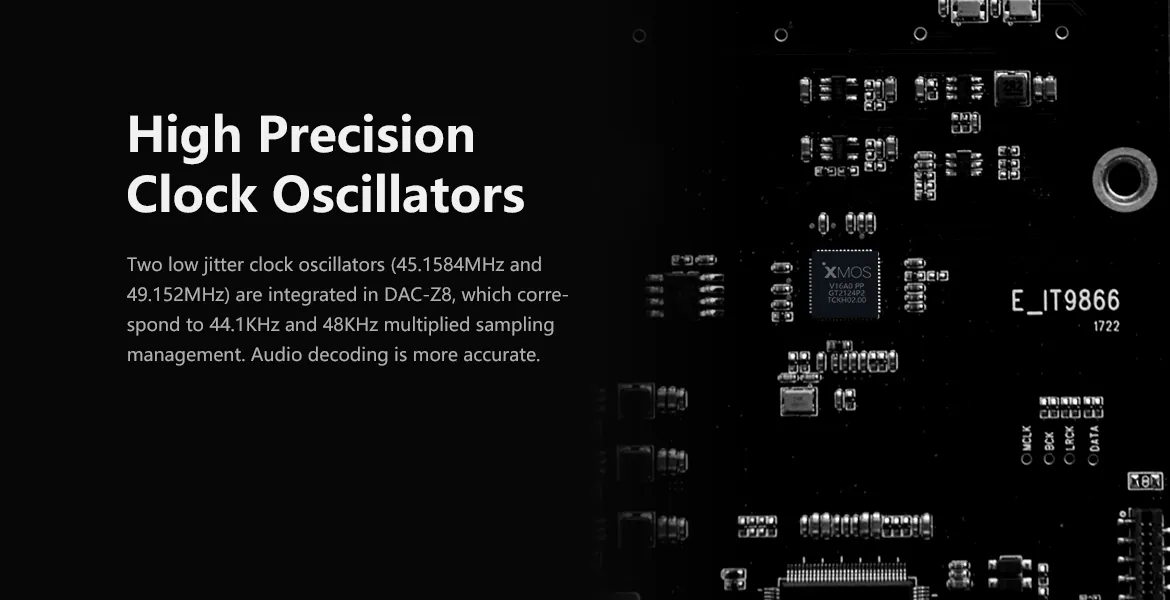

  • High precision, low jitter dual clock oscillators synchronous processing.

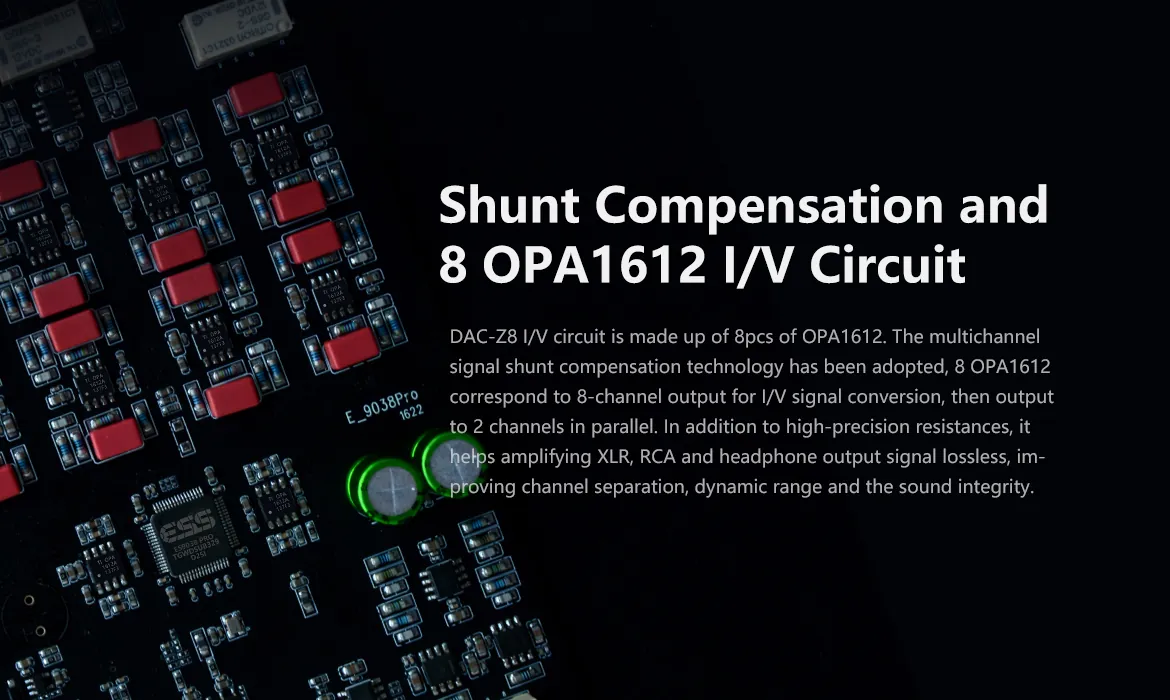

  • OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology.

  • Up to DSD512 Native, PCM768KHz@32Bit decoding.

  • Optical, Coaxial and USB support MQA full decoding and rendering.

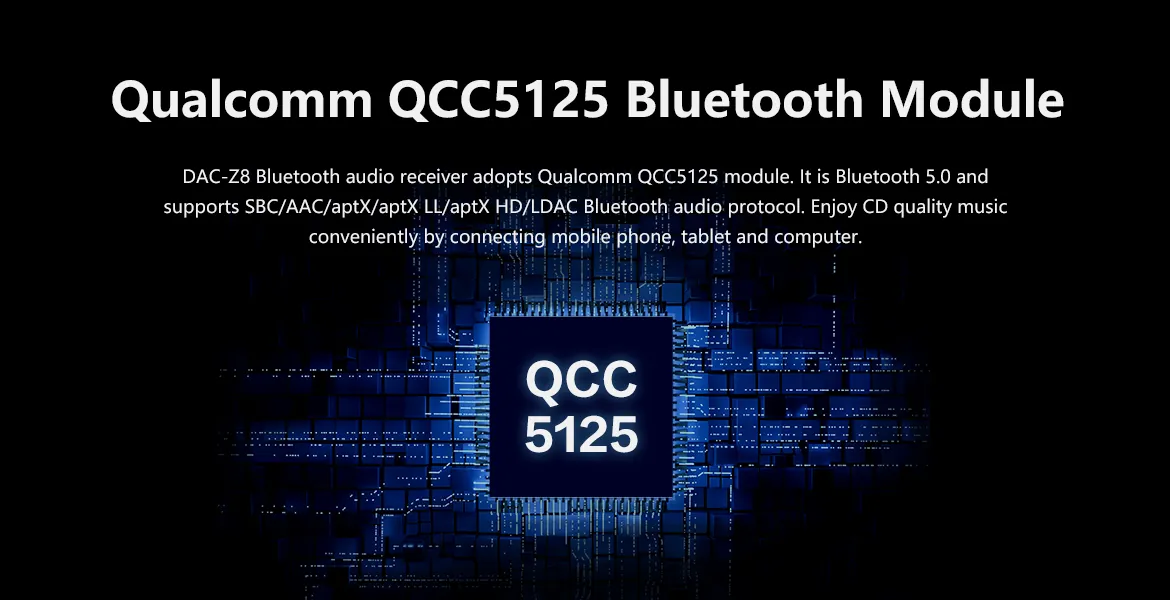

  • Qualcomm QCC5125 Bluetooth 5.0 module.

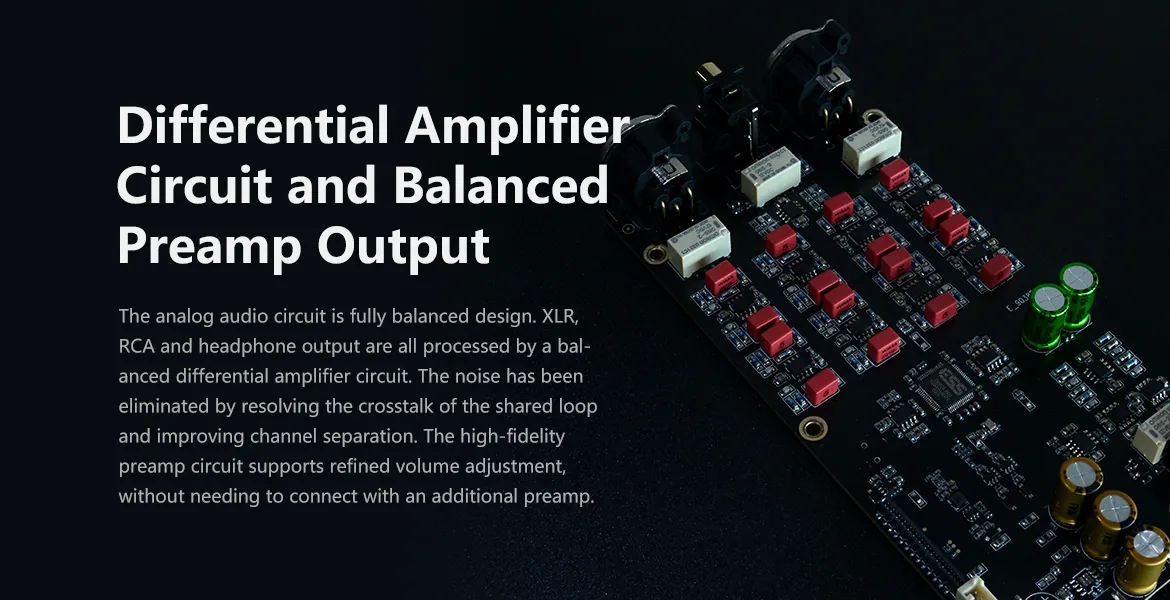

  • Fully balanced audio architecture, differential amplifier circuit and professional calibration.

  • High-performance headphone amp output, 16-300 ohm headphone driver.

  • 3-inch LCD screen, with diverse VU meter modes.

  • Low ripple power supply to ensure a purer power source.

  • Exclusive mobile phone controller APP for global control.

Specification
Display Screen
  • 3-inch LCD Screen
Chassis
  • Aviation aluminum alloy
DAC
  • ES 9038Pro
Audio Processor
  • XMOS XU316
OPA Chip
  • OPA1612*10
Power Supply
  • Low noise switching power supply
Bluetooth Audio Input
  • Qualcomm QCC5125 Bluetooth module
  • BT5.0 Support SBC/AAC Bluetooth protocol

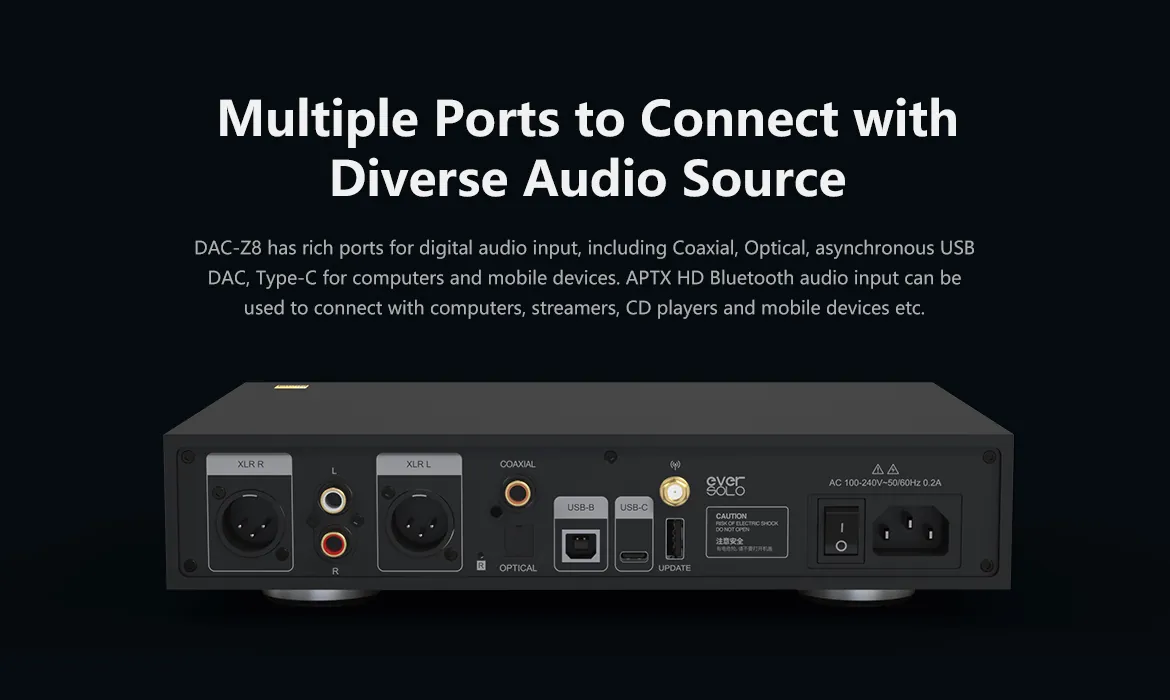

USB-B DAC Input
  • Compatible with Windows (7, 10), Mac, Android and IOS
  • Up to stereo DSD512, PCM 768KHz 32Bit and MQA
USB-C DAC Input
  • Compatible with Windows (7, 10), Mac, Android and IOS
  • Up to stereo DSD512
  • PCM 768KHz 32Bit
  • MQA
Optical Audio Input
  • Up to stereo PCM 192KHz 24Bit
  • DSD64 Dop
  • MQA
Coaxial Audio Input
  • Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

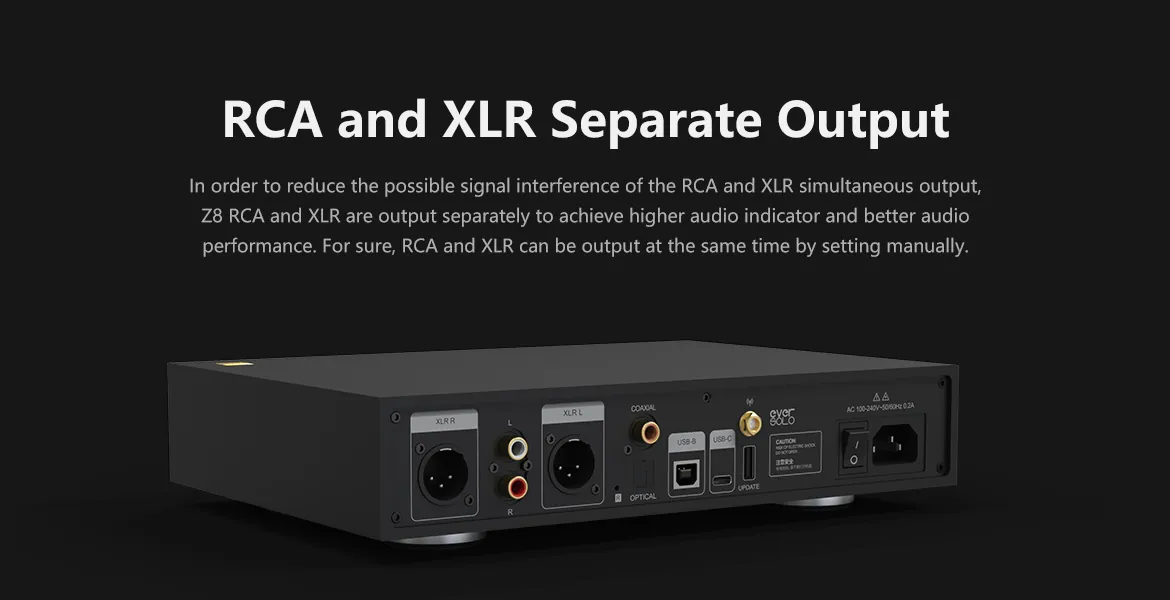

Analog Audio Output
  • Preamp output
    • XLR (balanced)
    • RCA
  • Headphone amp output
    • 6.35mm single-ended
USB Port
  • USB2.0*1(only for firmware upgrade)
Control Methods
  • Remote control
  • mobile APP control and knob control
Headphone Impedance
  • Low gain mode: 16-32Ω
  • High gain mode: 32-300Ω
XLR Audio Characteristics
  • Output level(Vrms):
    • 4.1Vrms@0dBFS
  • THD+N@A-wt:
    • 0.000062%@1kH (-124dB@1kHz)
  • THD+N@No-wt:
    • 0.000069%@1kHz(-123dB@1kHz)
  • Noise@No-wt:
    • <1.2uVrms
  • SNR @No-wt:
    • 133dB@1kHz
  • Frequency response:
    • 20Hz-20kHz(±0.1dB)
  • Crosstalk:
    • -130dB@1kHz
  • DNR @No-wt:
    • 133dB@1kHz
RCA Audio Characteristics
  • Output level (Vrms):
    • 2.3Vrms@0dBFS
  • THD+N@A-wt:
    • 0.000086%@1kHz(-121dB@1kHz)
  • THD+)@No-wt:
    • 0.000097%@1kHz(-120dB@1kHz)
  • Noise @No-wt:
    • <1.5uVrms
  • SNR @No-wt:
    • 126dB@1kHz
  • Frequency response:
    • 20Hz-20kHz(±0.1dB)
  • Crosstalk:
    • -123dB@1kHz
  • DNR@No-wt:
    • 126dB@1kHz
Headphone (Low Gain Mode)
  • Output level(Vrms):
    • 1.2Vrms@0dBFS
  • Maximum undistorted power:
    • 45 mW@32Ω
  • THD+N@A-wt:
    • 0.00015%@1kHz(-116dB@1kHz)
  • THD+N@No-wt:
    • 0.00018%@1kHz(-115dB@1kHz)
  • Noise @No-wt:
    • <2uVrms
  • SNR@No-wt:
    • 124dB@1kHz
  • Frequency response:
    • 20Hz-20kHz(±0.1dB)
  • DNR @No-wt:
    • 119dB@1kHz
Headphone (High Gain Mode)
  • Output level(Vrms):
    • 2.8Vrms@0dBFS
  • Maximum undistorted power:
    • 26 mW@300Ω
  • THD+N@A-wt:
    • 0.00016%@1kHz(-116dB@1kHz)
  • THD+N@No-wt:
    • 0.00016%@1kHz(-116dB@1kHz)
  • THD+N@No-wt:
    • 0.00016%@1kHz(-116dB@1kHz)
  • SNR@No-wt:
    • 124dB@1kHz
  • Frequency response):
    • 20Hz-20kHz(±0.1dB)
  • DNR @No-wt:
    • 124dB@1kHz
Power Input
  • AC 110~240V 50/60Hz
Rated Power
  • 9W
Dimensions
  • 270mm Width
  • 187mm Depth
  • 50mm Height
