EVERSOLO AMP F2 Power Amplifier

2 Channel Stereo Class D Power Amplifier

$1,249.00















Specification
Output Power
  • 145W RMA at 8 Ohms (1% THD)
  • 250W RMS at 4 Ohms (1% THD)
  • 280W RMS at 4 Ohms (1% THD Bridged)
  • 450W RMS at 2 Ohms (1% THD Bridged)
Gain
  • 21.5dB
Channel Quantity
  • 2 (Stereo)
  • 1 (Bridged)
Amplifier Type
  • Class D
Frequency Response
  • 10Hz-20kHz -1dB
Maimum Current Output
  • 16.5A per channel
  • 33A Bridged
Signal to Noise Ratio (SNR)
  • 110dB "A" weighted at 4 ohm 250W
THD
  • 0.003% 10W at 1kHz
Input Terminals
  • 2x RCA
  • 2x XLR
  • 1x 3.5mm Trigger (5v-12v)
Input Impedance
  • 11kOhm (RCA)
  • 22kOhm (XLR)
Input Sensitivity
  • 2.7V
Output Terminals
  • 2 Pairs Beryllium Copper Binding Posts made by Starke Sound
Output Impedance
  • 0.136 Ohms (5Hz to 100kHz)
Minimum Load Impedance
  • 0.8 Ohm
True Balance Circuit
  • Yes
Thermal Output
  • 65 BTU / hr

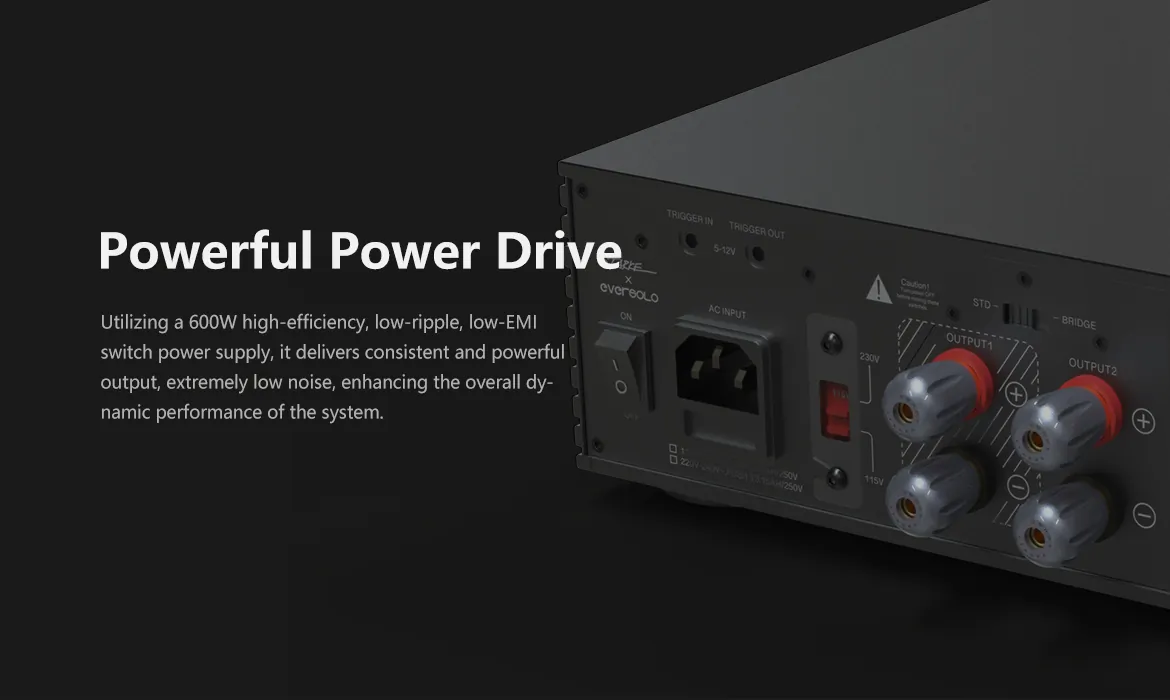

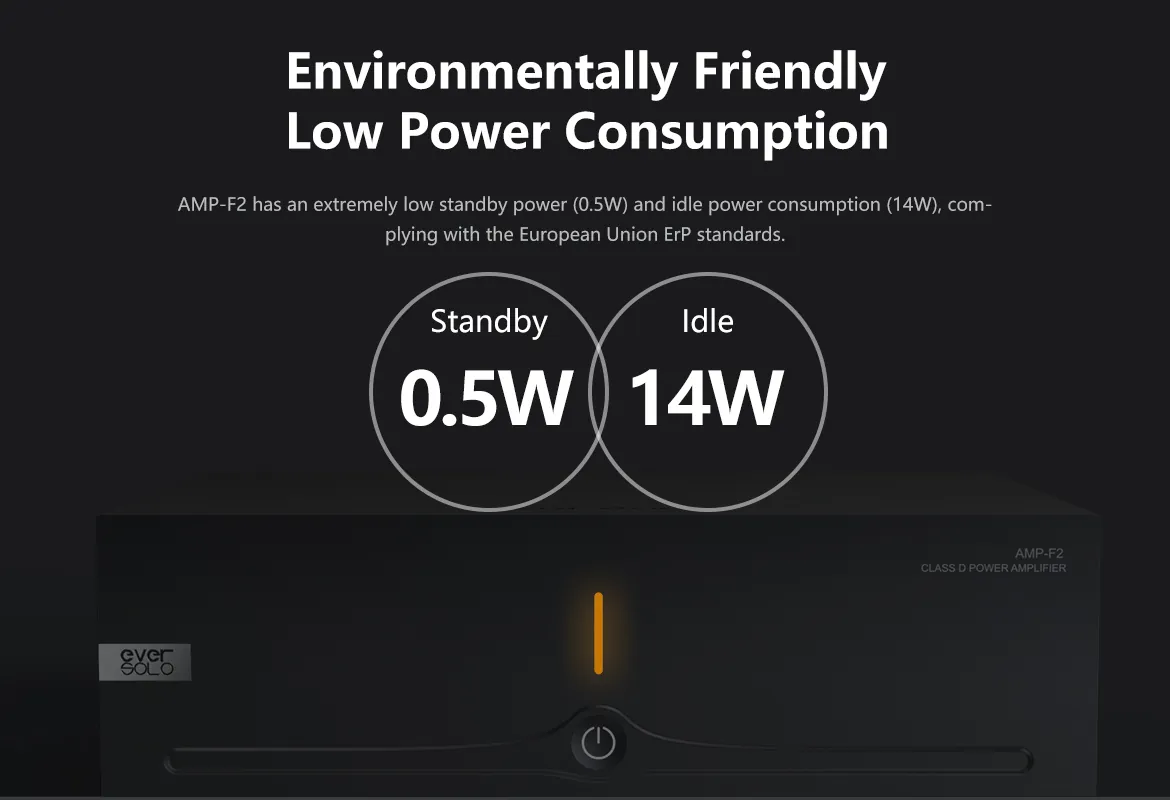

Power Consumption
  • <0.5W Standby
  • <14W Idle
  • 900W PEAK
Control Operation

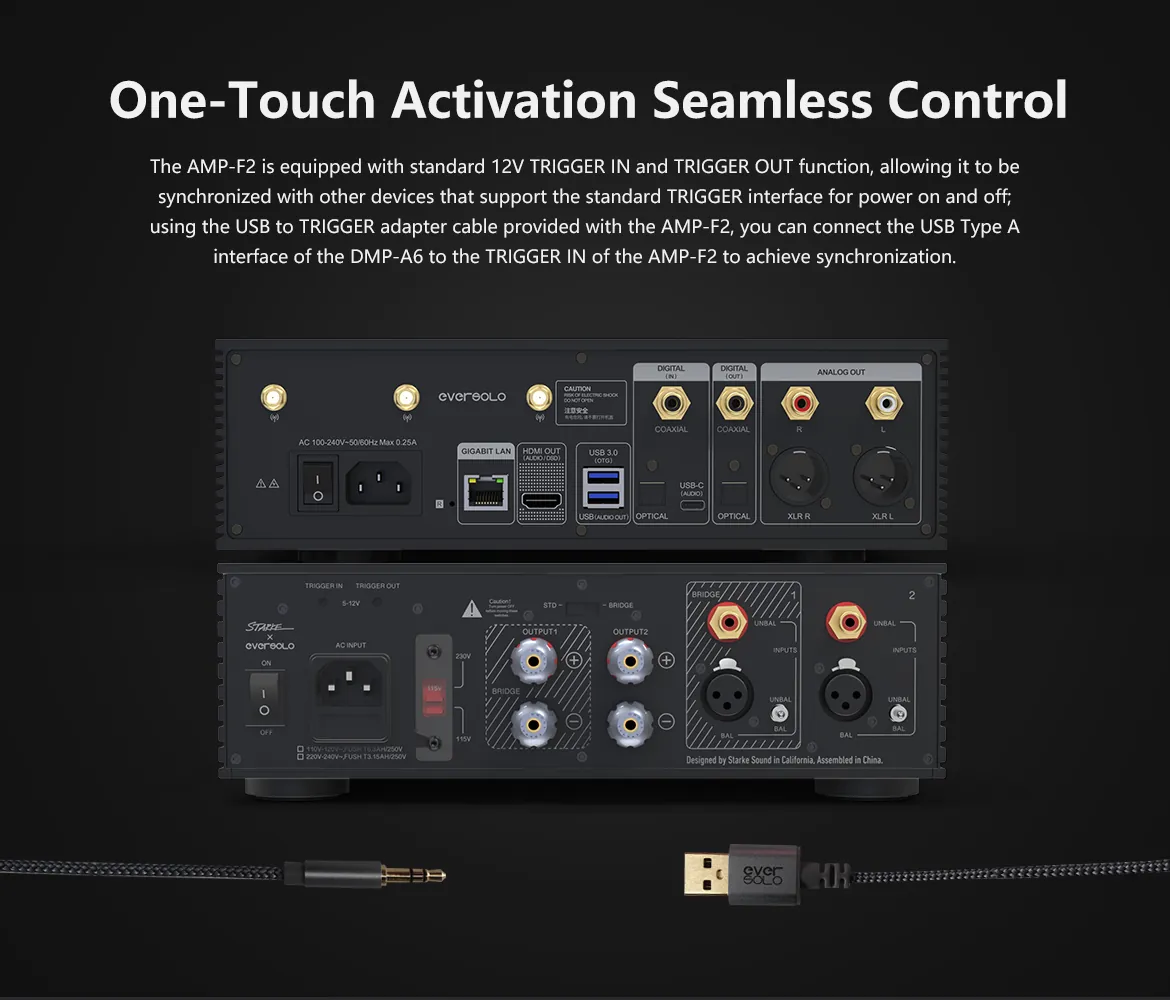

  • 3.5mm Trigger In (5V-12V)
  • 3.5mm Trigger Out

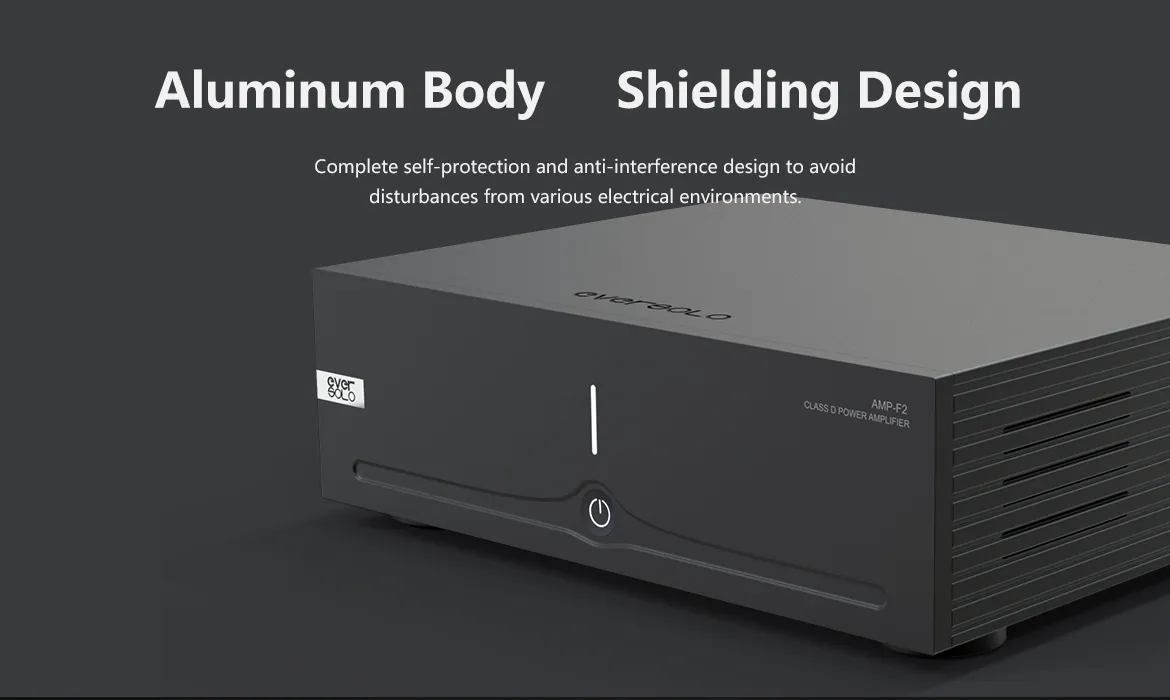

Cabinet
  • Black Aluminium
Dimensions
  • 270mm Width
  • 228mm Depth
  • 80mm Height
