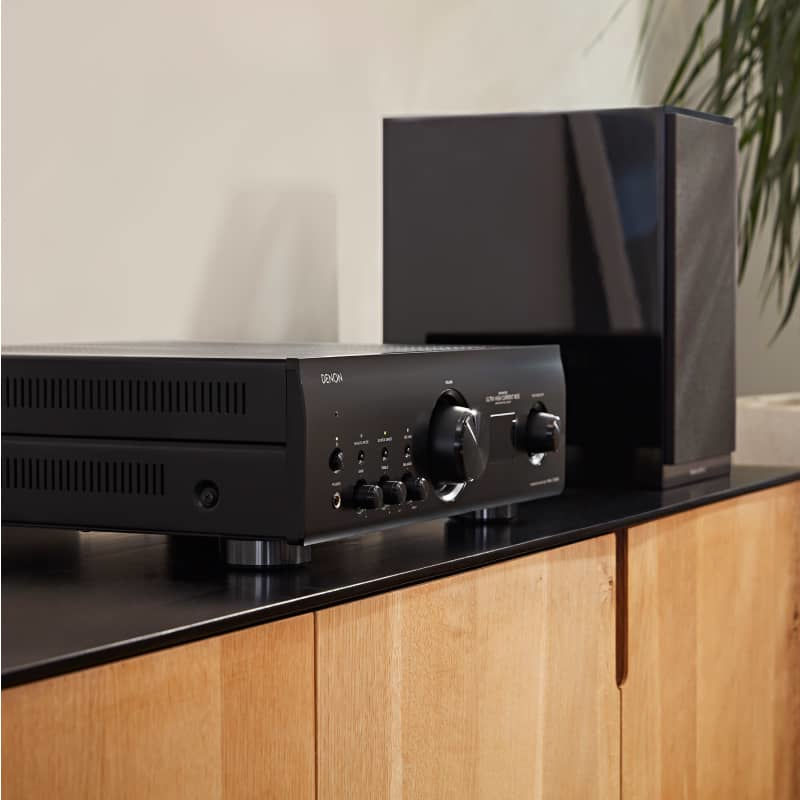

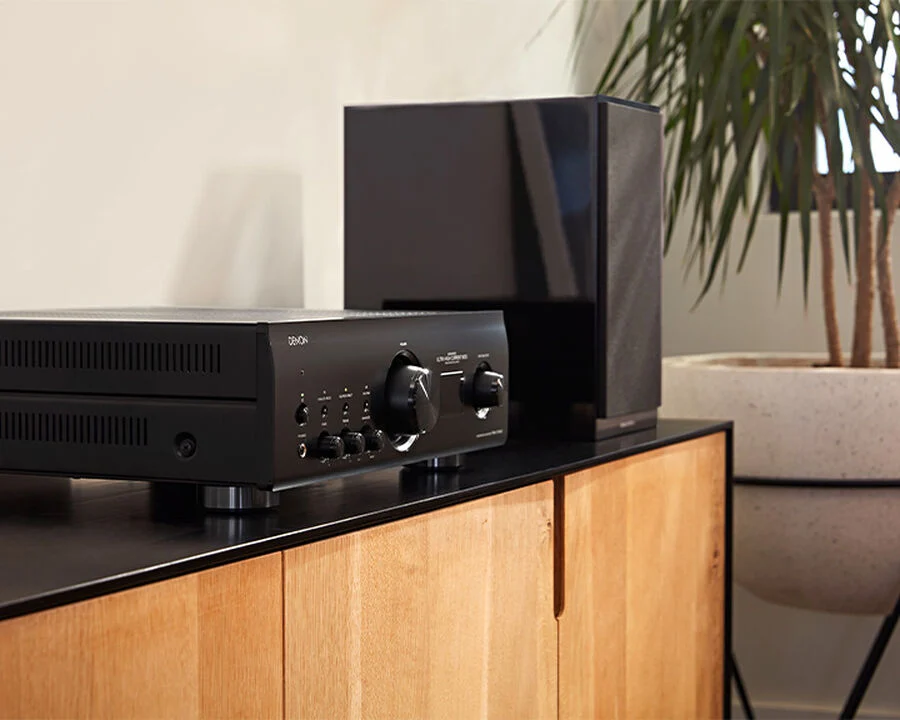

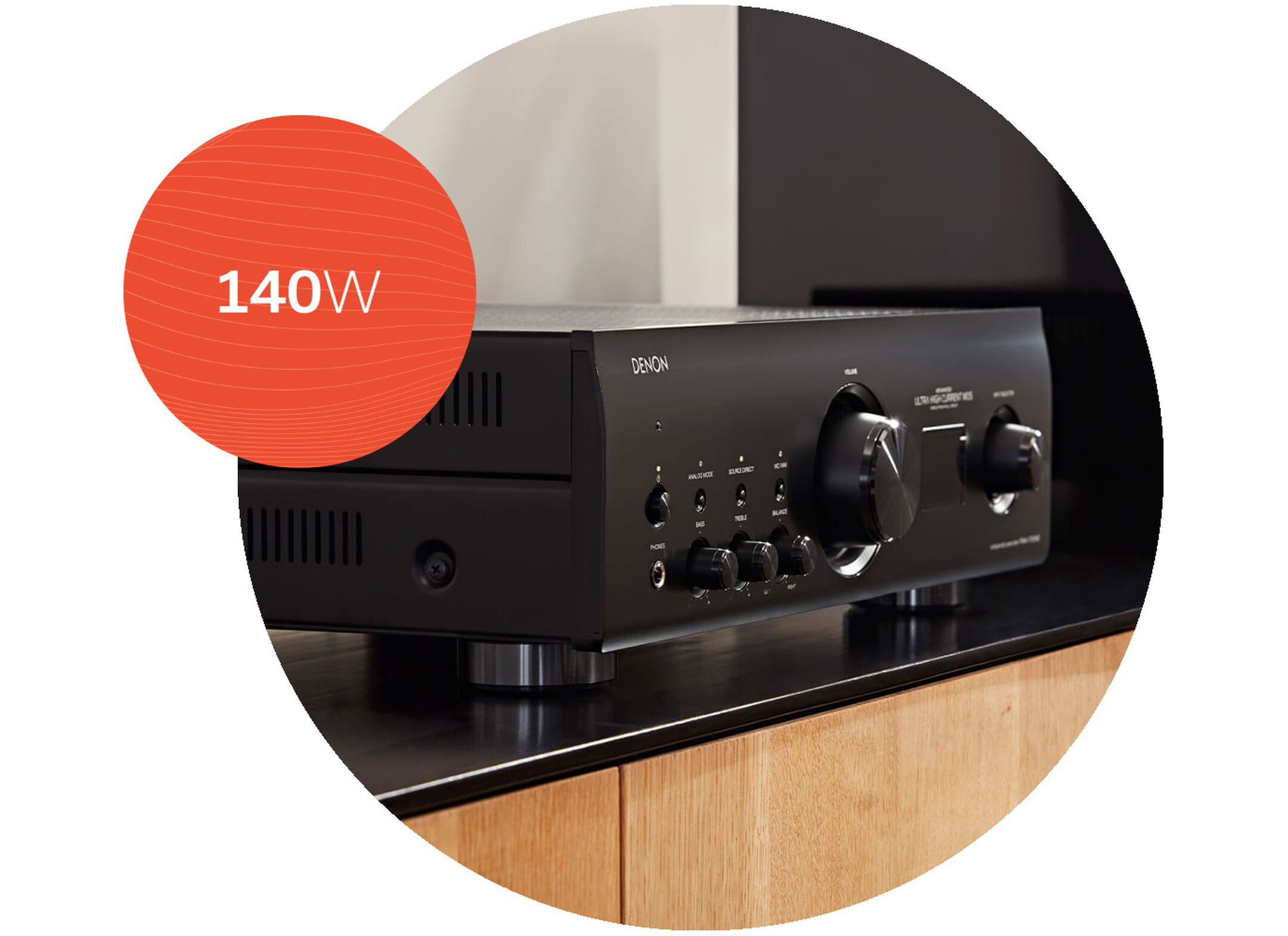

Powerful sound from an integrated amplifier

Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

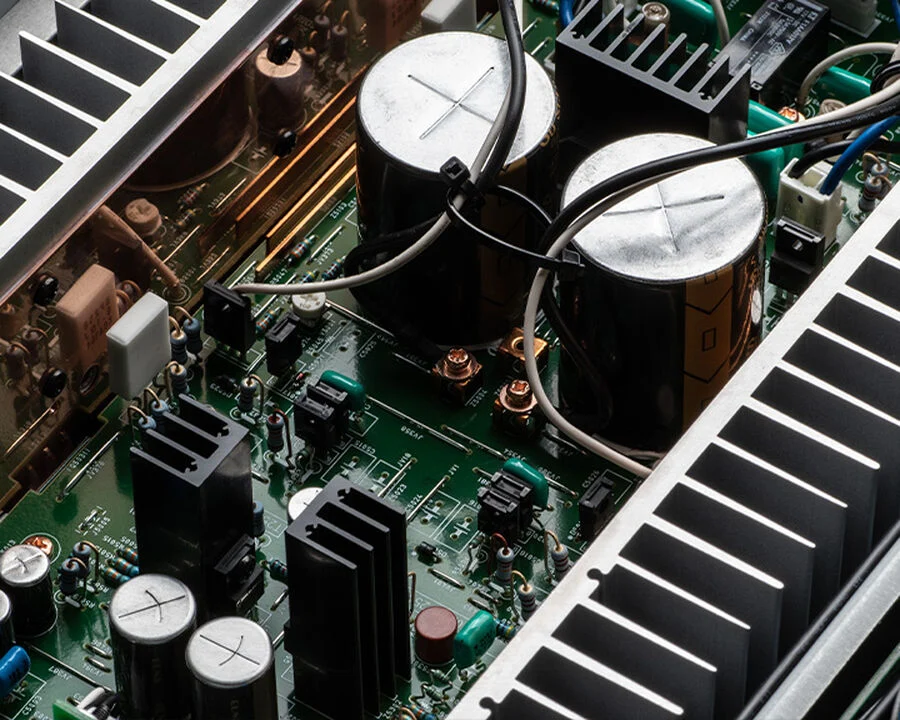

Faithful audio reproduction

Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

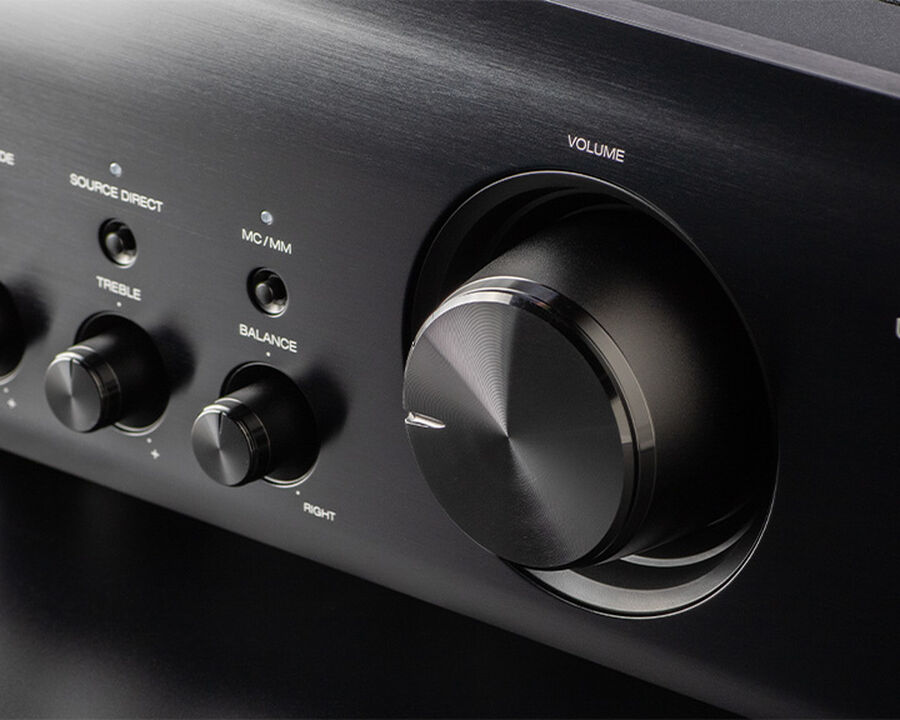

Build integrity with selected components

With more than 110 years of audio excellence, Denon products are built to last.

General

Dimensions

• 434mm Width
• 410mm Depth
• 135mm Height
• 17.6kg

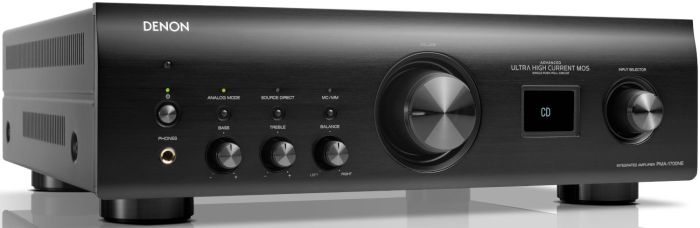

Front Panel

• Aluminium

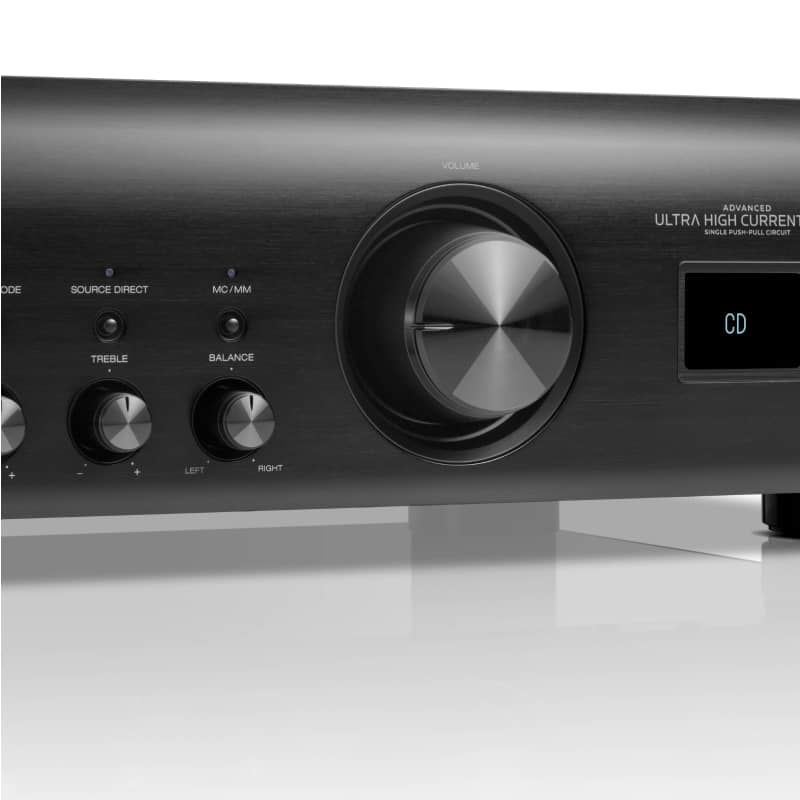

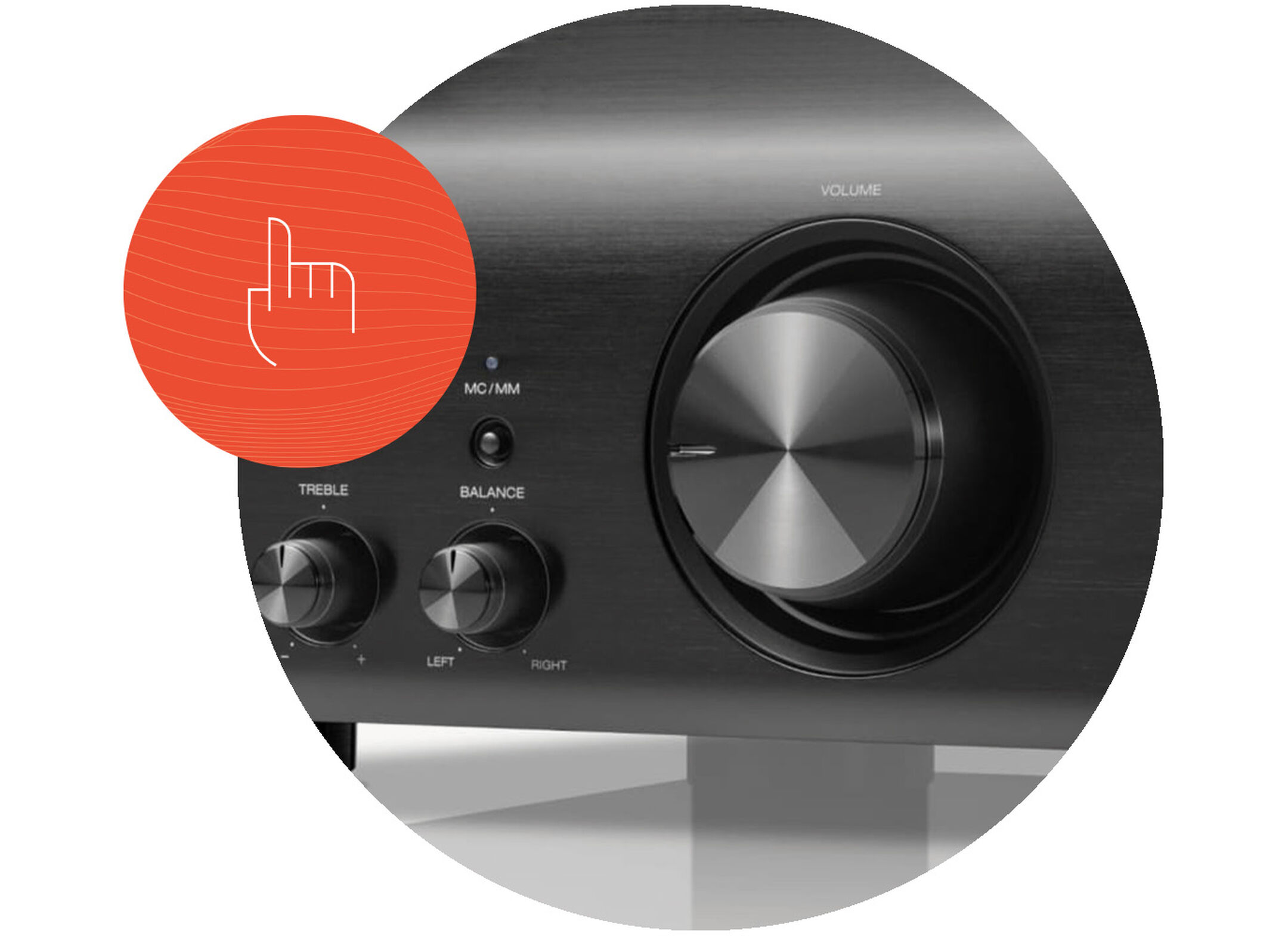

Knobs and Buttons

• Aluminium Input Selector
• Aluminium Volume Knob
• Aluminium Bass, Treble, and Balance Knobs
• Aluminium Power Button
• Loudness
• Source Direct
• Analogue Mode
• MM/MC Phono

Heatsink

• Extruded Aluminium

Specifications

Rated Power Output

• 70W + 70W (8 Ohms, 20Hz-20kHz, 0.07% THD)
• 140W + 140W (4 Ohms, 1kHz, 0.7% THD)

Speaker Impedance

• A or B : 4 ~ 16ohm

• A + B : 8 ~ 16ohm

Frequency Response

• 5Hz - 100kHz (0~ -3dB)

Total Harmonic Distortion

• 0.01 % (Rated output: –3 dB), 8 ohms, 1 kHz

Damping Factor

• 100 and over

Input Sensitivity

• MM Phono: 2.5 mV / 47 kohm

• MC Phono: 200

• 125 mV / 19 kohm Line

• 0.85V / 47kohm (EXT. PRE)

RIAA Deviation

• 20 Hz - 20 kHz ±0.5 dB (MM/MC)

Phono Maximum Input

• MM : 130mV / 1kHz

• MC : 10mV / 1kHz

Signal to Noise Ratio

Tone Control

• BASS : 100Hz ±8dB

• TREBLE : 10kHz ±8dB

Power Consumption

• 295W PEAK

• 0.2W TV autoplay off

• 0.4W TV autoplay on

Audio Feature

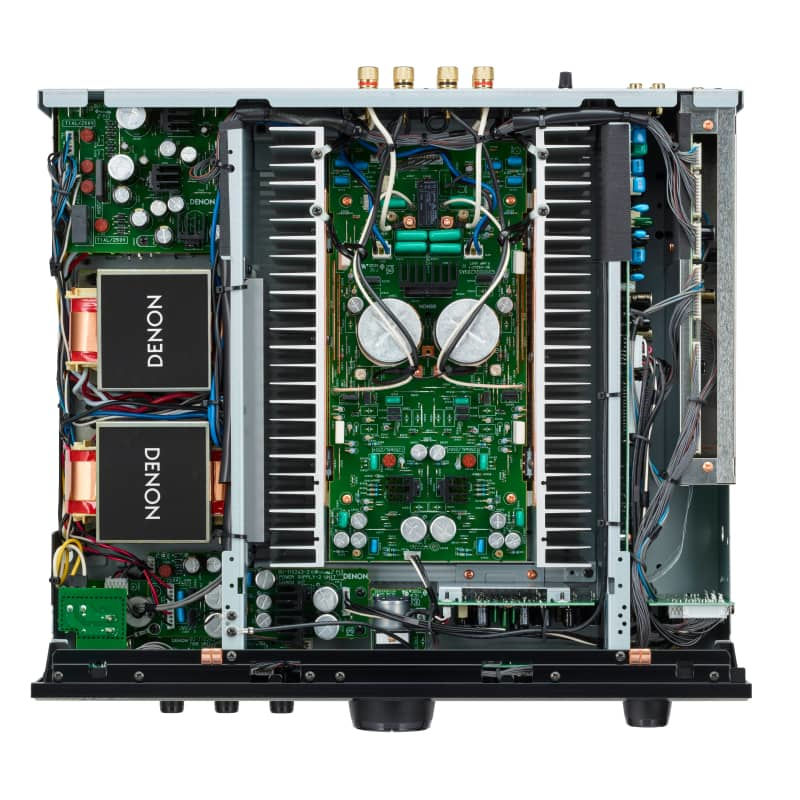

Power Amplifier Circuit

• New UHC-MOS

• Single Push Pull

Power Transformer

• Dual El Core

Pre Amplifier Circuit

• Variable Gain Preamplifier

Volume

• Electric (MUSES 72323)

Tone controls

• Electric, controlled by potentiometer
• Bass
• Treble
• Balance

Features

• Source Direct
• Analogue Only mode
• Power Amp Direct (EXT. PRE)
• DAC Master Clock Design
• Asyncronous mode (for USB-B input)
• Isolator (for USB-B input)

DAC

• PCM1795

Digital Processing

• Advanced AL32 Processing Plus

Connectivity

Analogue Inputs

• 1x Phono (MM/MC)
• 3x Stereo RCA Inputs
• Power Amp Direct In (Ext. Pre)

Digital Inputs

• 2x Optical (24bit, 192kHz)
• 1x Coaxial (24bit, 192kHz)
• 1x USB-B (32bit, 384kHz) (DSD DoP up to 11.2MHz)

Speaker Outputs

• 2 Sets Gold Plated Binding Posts
• Speakers A/B or Bi-Wiring

Headphones

• 1x 6.35mm Output
• Shuts down amplification to speakers when headphones inserted

Remote Control Bus

• Mini

Control

Remote Controller

• RC-1249 System Remote Control
• Also controls Denon CD Players and Network Streamers

Front Panel Controls

• Power Button
• Analogue Mode
• Source Direct
• MM/MC switch
• Input Selector Knob
• Volume Knob
• Bass Knob
• Treble Knob
• Balance Knob

Front Panel Display

• OLED (128x100)
• Dimmable (Bright, Dim, Dark, Off

Control Features

• Control with App via Network Player (Control Bus
• TV Auto-Play (optical/coax digital in detector)
• Auto Standby)

Onboard Technologies

Advanced ultra-highcurrent (UHC) single push-pull amplifier

Wide bandwidth captures everything from deep bass to detailed highs. The UHC design ensures drivability of a wide range of speaker types and impedances.

Hi-Res Audio certified

Able to decode high-resolution audio ALAC, FLAC, and WAV lossless files up to 24-bit/192kHz, as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD), PMA-1700NE lets you enjoy each note exactly as the artist intended.

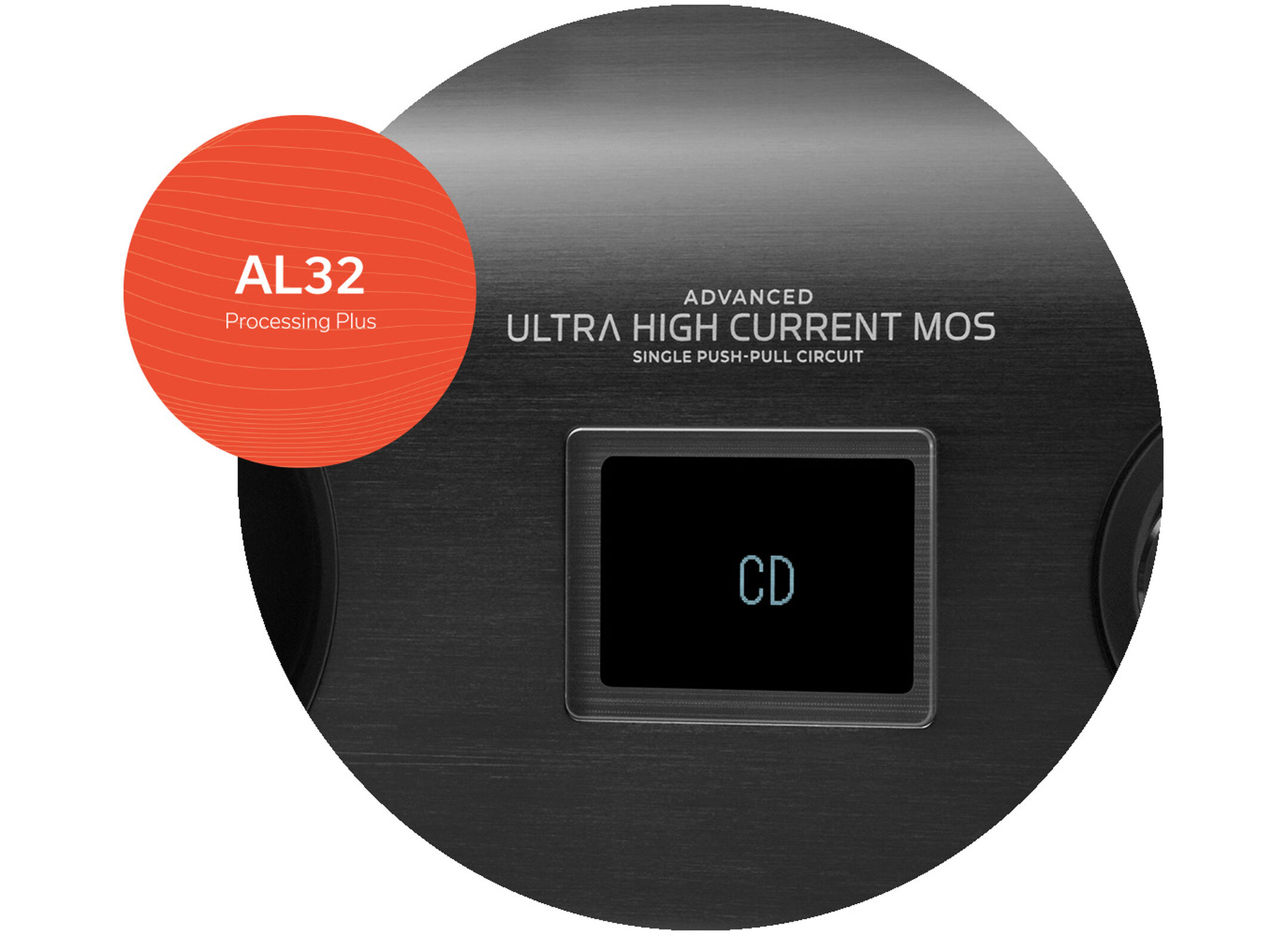

Advanced AL32 Plus

The latest in analog waveform reproduction technology, Advanced AL32 Processing Plus utilizes data interpolation algorithms, up-sampling, and bit-extension to support high-resolution audio. The resulting playback is highly detailed, free of interference, richly expressive in the lower range, and beautifully faithful to the original sound.

Built-in Phono Equalizer

Denon is well known for high-quality vinyl playback. The built-in phono equalizer allows direct connection to a turntable and supports input from MM cartridges. Some models also support input from MC cartridges.

Digital inputs

The amplifier features optical and coaxial digital inputs supporting PCM signals up to 192kHz/24 bit to improve the sound quality of your TV audio, Blu-Ray, media players, computer, and more.

110+ Years of First in Audio Technology

Founded in 1910, Denon has a deep heritage of "firsts" in audioTechnology—from Japan's first audio electronics manufacturer, to producing the world's first commercial CDs. This focused investment in audio R&D ensures you get the latest technology and highest quality with every listening experience.
