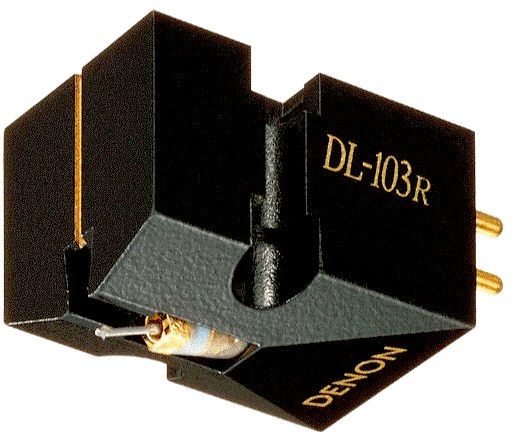

DENON DL 103 R EM Moving Coil Cartridge

The DL 103R is an updated version of the classic DL 103. Made in Japan.

$629.00

It provides improved sound by using 6N copper coils wound with precision to the cantilever shaft. Sonic improvements over the DL 103 include heightened detail extraction, more bass depth, and enhanced clarity across the frequency range.

The sound of the DL 103R is outstanding. It has the characteristic of allowing the music to come across as a composition, and not as a group of disjointed parts.

Many other cartridges will give great separation of instruments and holographic imaging and detail, but they never seem to merge as a musical whole. The DL 103R excels in this area of making the parts merge into a full musical presentation, and still retains the detail and delineation of the instruments and voices.

This is one of the major reasons why the DL 103R is such a desirable cartridge.

Specification

Principle

  • Moving Coil

Output Voltage

  • 0.25mV (1 kHz, 50mm/s horizontal direction)

Channel Balance

  • 1dB max (1kHz)

Channel Separation

  • 25dB Min (1kHz)

Electrical Impedance

  • 14 Ohms +/-20%

Compliance

  • 5 x 10-3 m/N (Using a 100Hz record)

Stylus

  • 16.5 Micron Round Tip

Tracking Force

  • 2.3 - 2.7 grams

Frequency Response

  • 20Hz - 45kHz

Mass

  • 8.5g

Load Impedance

  • 100 Ohms Min
  • 40 Ohms when using step up transformer
