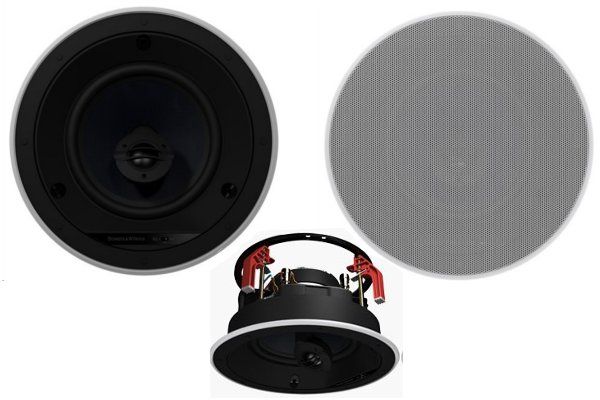

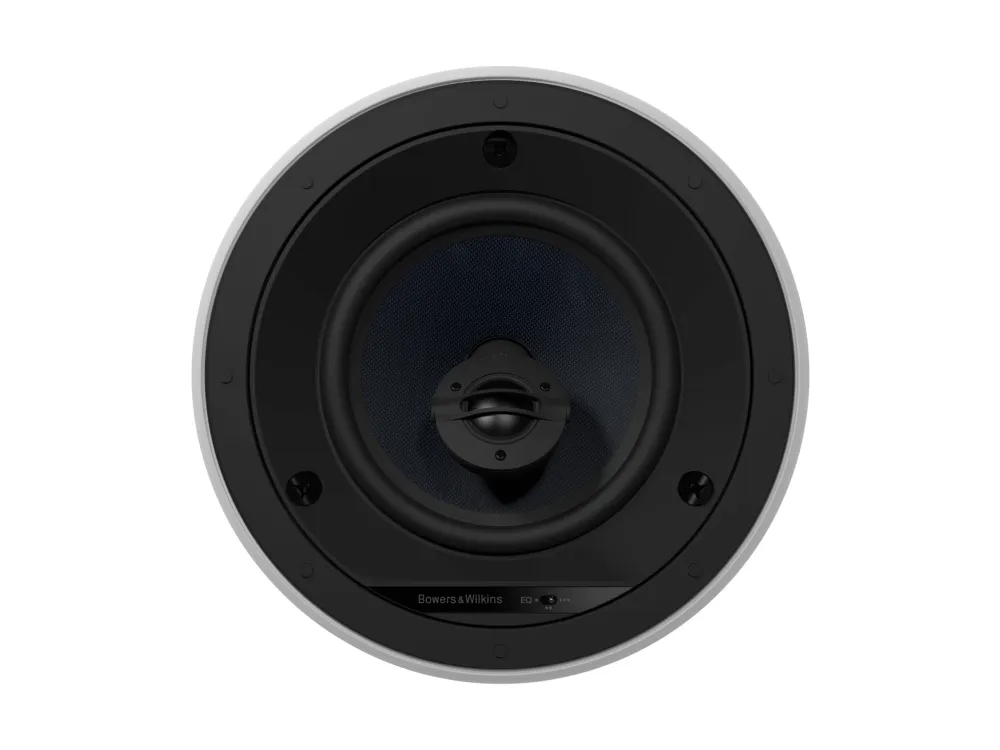

Bowers & Wilkins CCM663 Ceiling Speakers

Performance two-way in-ceiling speaker with adjustable tweeter

The CCM663 is a true high-performance ceiling-mount speaker. The tweeter has a 25mm (1in) aluminium dome and its housing pivots for adjustable off-axis treble response. The bass/midrange driver’s die-cast chassis provides extra rigidity, which results in a cleaner, faster bass, and a three-position EQ switch for a better off-axis response.

$999.00

Warranty Period : 5 years

Sold as : One Pair

Warranty Period : 5 years

Sold as : One Pair

The CCM663 is a true high performance ceiling-mount speaker. The tweeter has a 25mm (1in) aluminium dome and its housing pivots for adjustable off-axis treble response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass, and a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Specification
GENERAL SPECIFICATIONS
Product Type
  • In-Ceiling Speaker
System Type
  • 2-Way In-Ceiling System
Frequency Range
  • 45Hz - 50kHz (-6dB)
Sensitivity
  • 88dB SPL (2.83V, 1m)
Impedance
  • 8Ω (Nominal)
  • 4.5Ω (Minimum)
Tweeter Adjustment
  • Pivoting Housing for Off-Axis Adjustment
Equalisation
  • 3-Position EQ Switch
Bass/Midrange Chassis
  • Die-Cast
Mounting System
  • QuickDogs™
Finish
  • White
DRIVERS
Tweeter
  • 1 x 25mm Nautilus™ Swirl-Loaded Aluminium Dome Tweeter
Bass/Midrange Driver
  • 1 x 150mm Aramid Fibre Cone Bass/Midrange Driver
INSTALLATION SPECIFICATIONS
Frame Diameter
  • 240mm
Cut-Out Diameter
  • 202mm
Depth Behind Surface
  • 133mm
Protrusion
  • 4mm
Pre-Mount Kit
  • C6
Back Box
  • 6C
