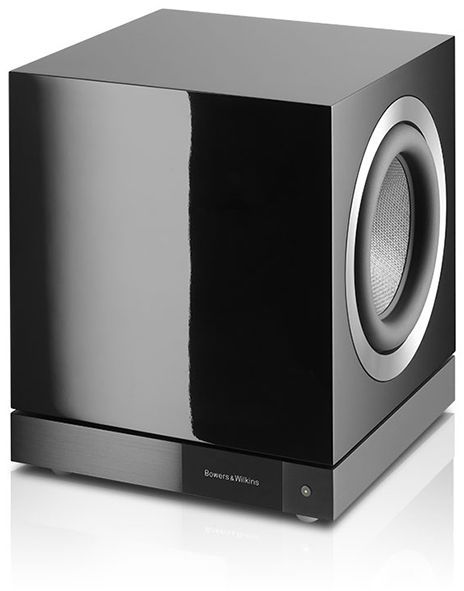

Bowers & Wilkins DB3D Subwoofer

High-performance 8-in subwoofer

Despite its compact dimensions, DB3D delivers astonishingly powerful, controlled bass thanks to its twin 8-in Aerofoil™ drivers, amplifier and digital signal processing.

$4,399.00

Warranty Period : 2 years

"Completely belying its compact dimensions, the DB3D is a miniature powerhouse and plumbs depths of LF that no box of these dimensions has any right to. The performance is super-tight, very fast and carries a weighty punch with LFE and two-channel stereo music alike."

essentialinstall.com - 5 Stars



702 S3

Floor-standing speaker

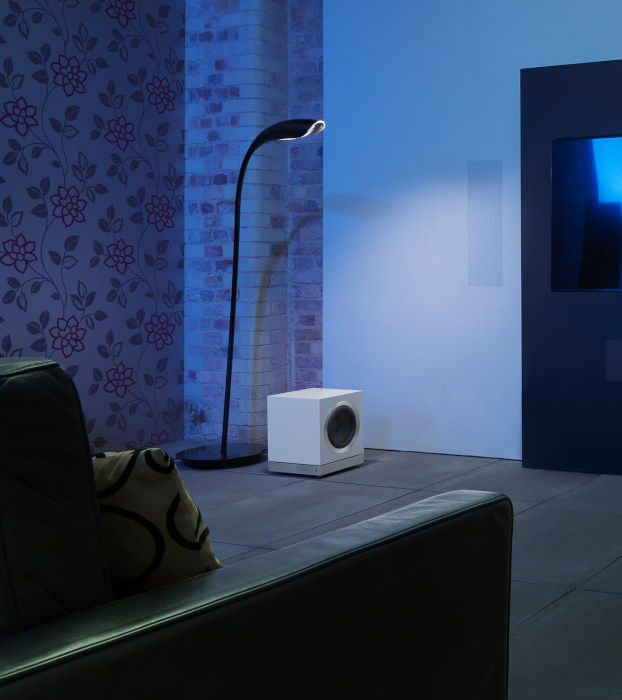

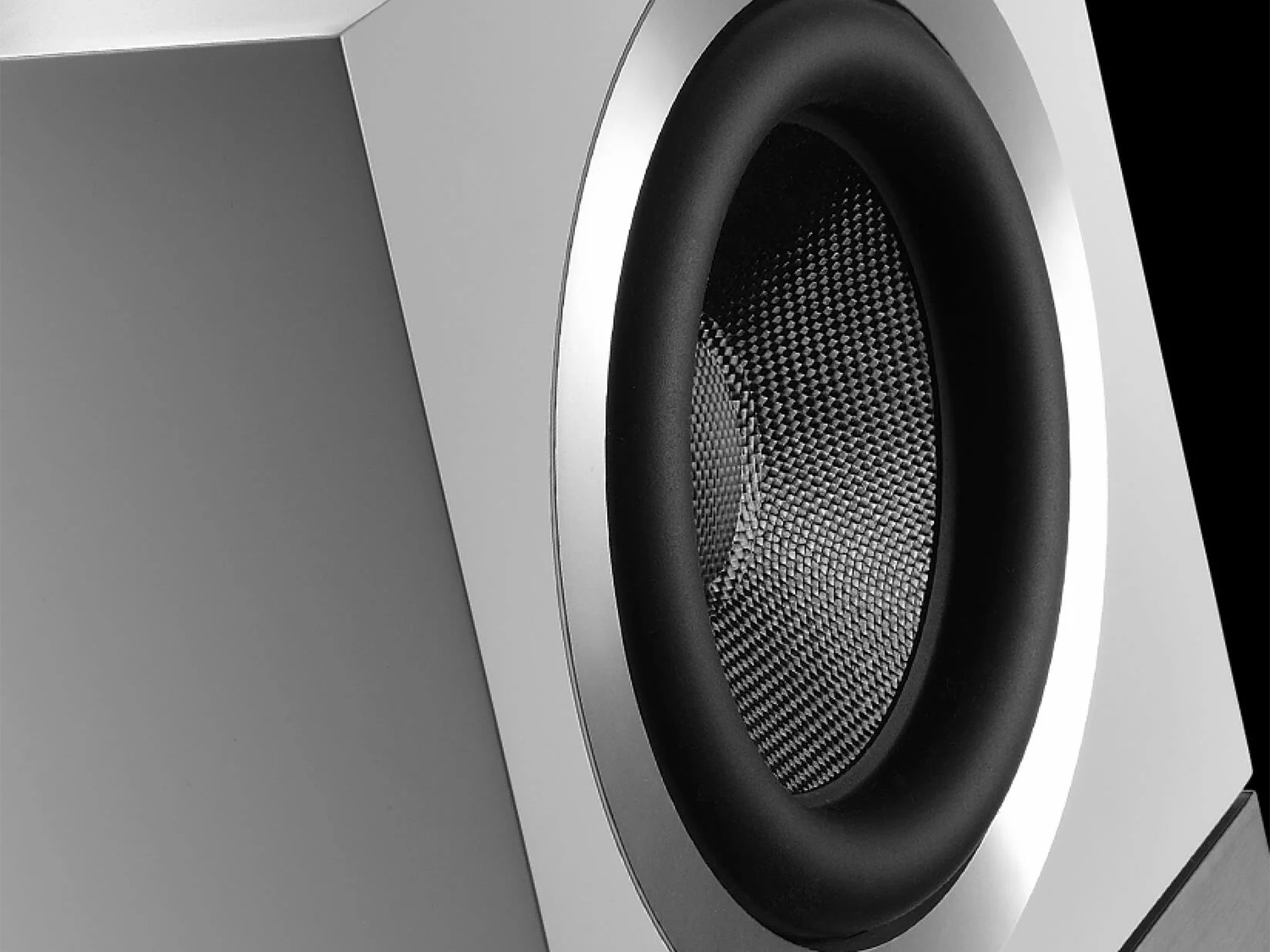

More bass, less space

Compact model packs a mighty punch. Controllable, dramatic bass from a subwoofer so small it fits almost anywhere: DB3D is a space-saving high-performance design.

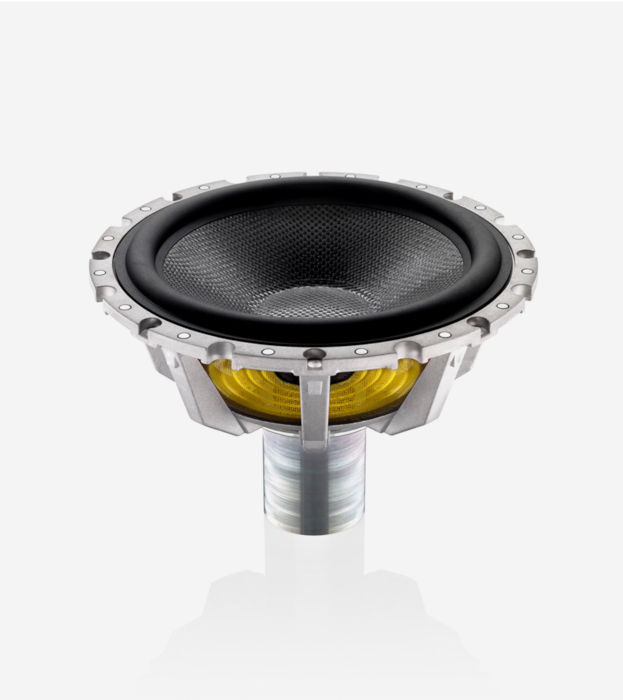

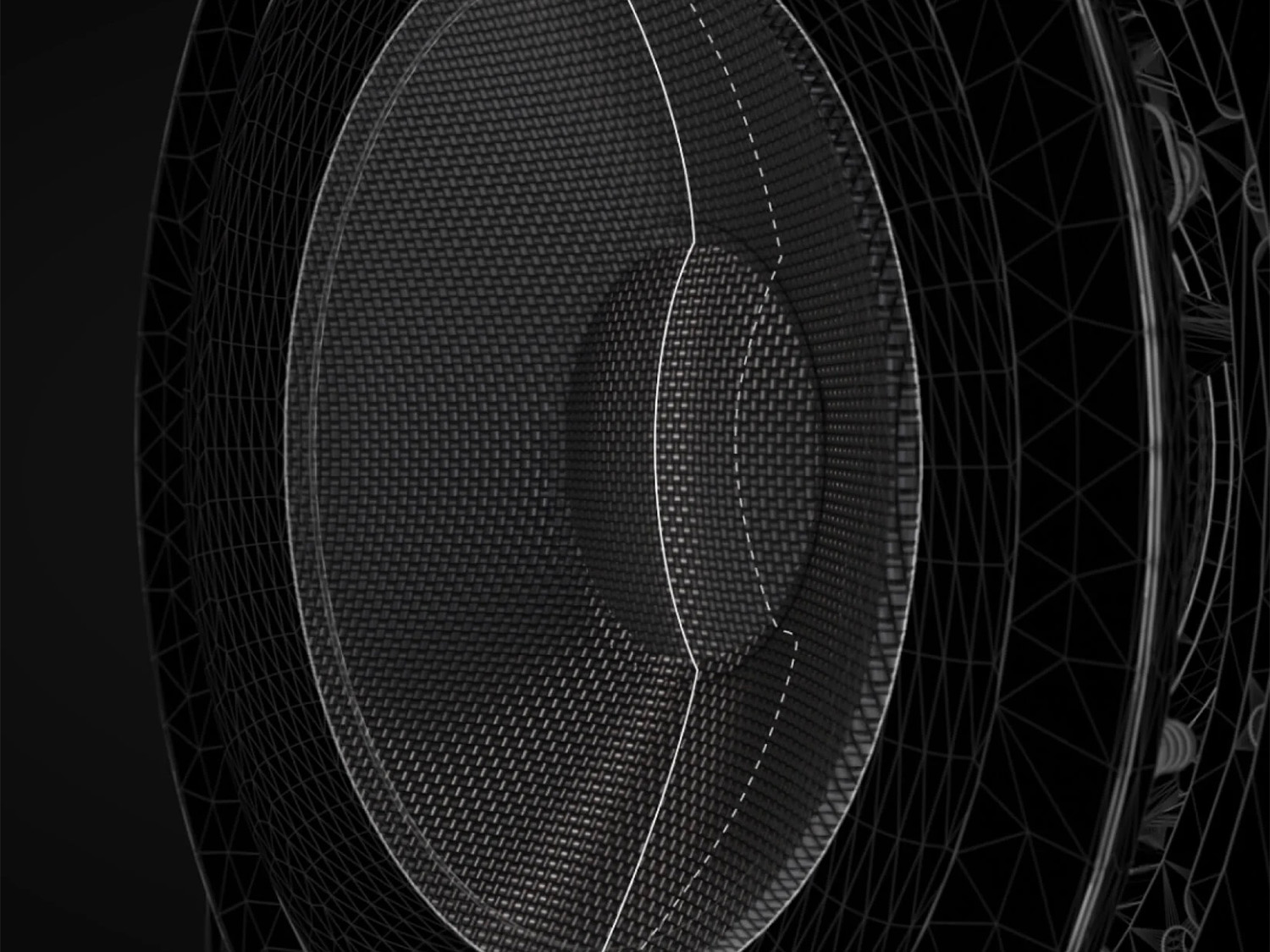

Nimble and powerful

Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil™ cone.

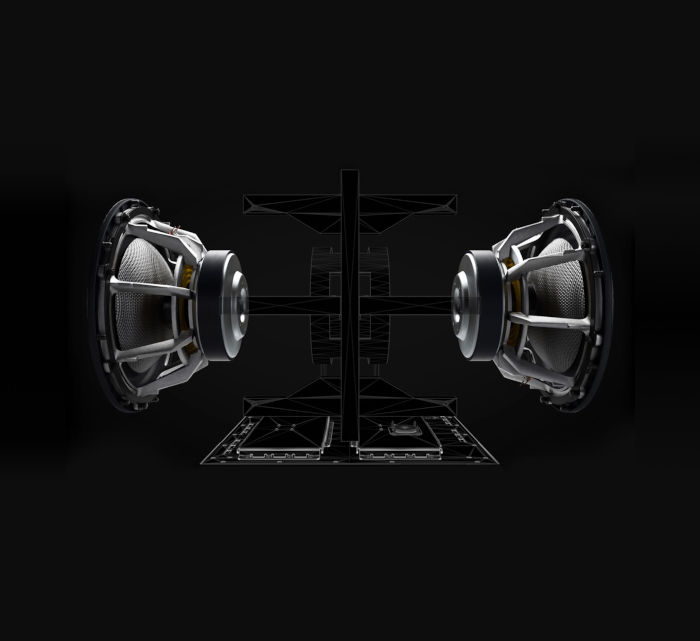

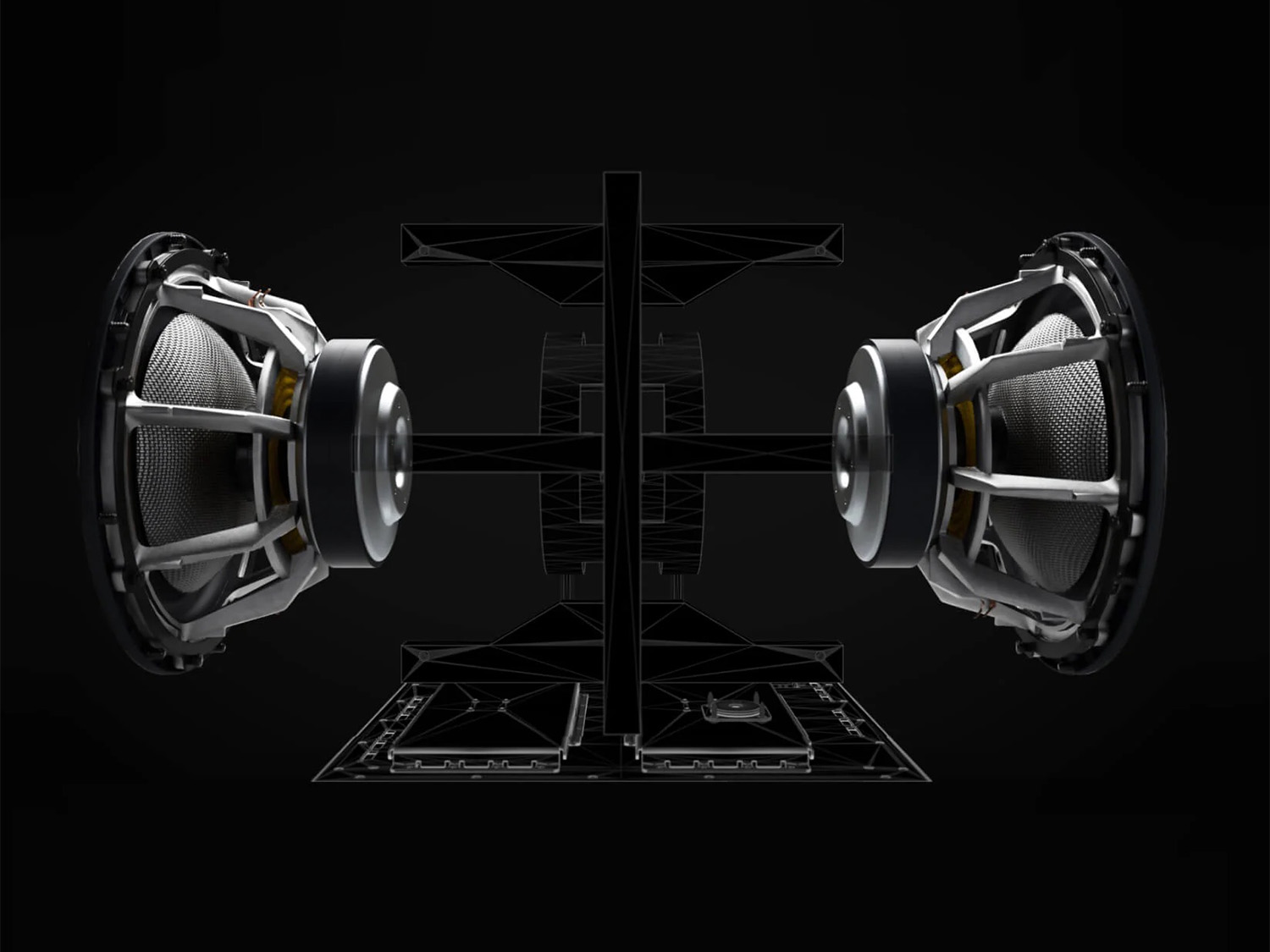

A question of balance

The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.

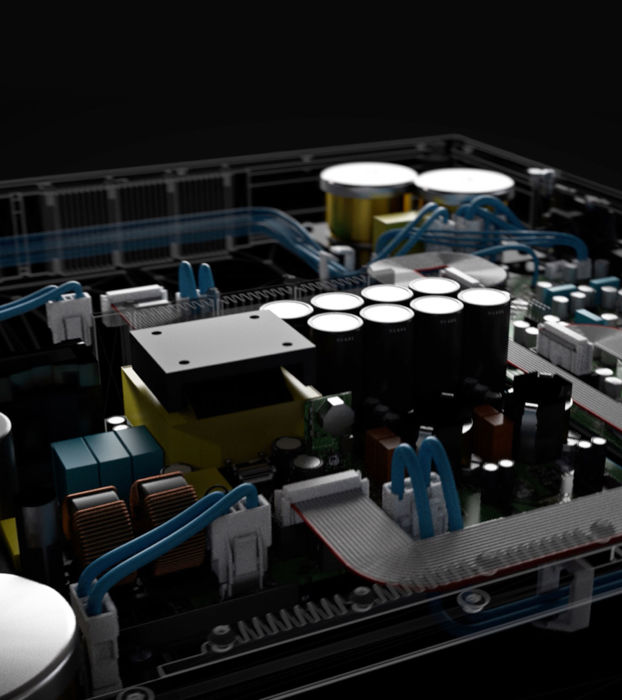

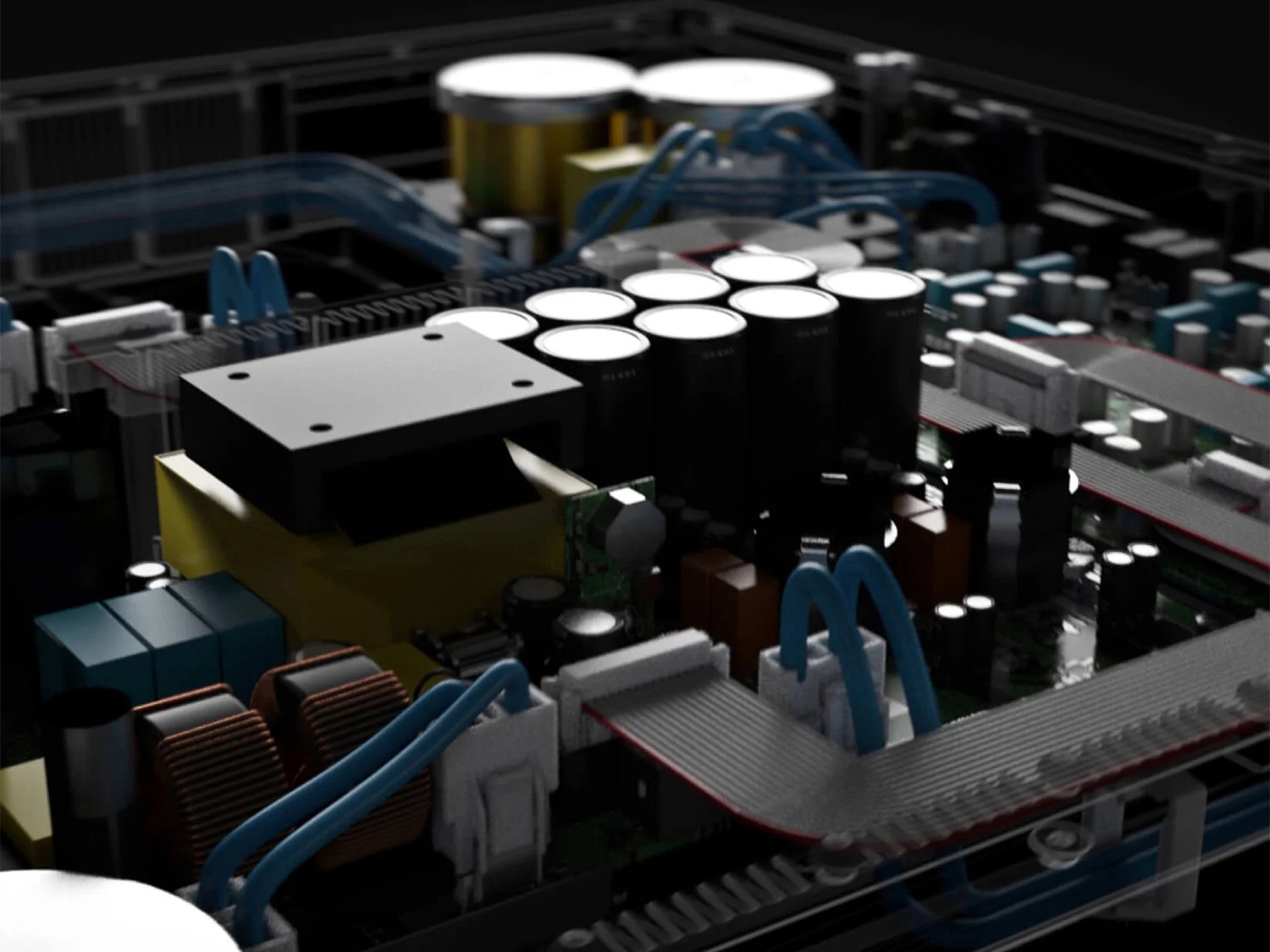

The digital advantage

Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.

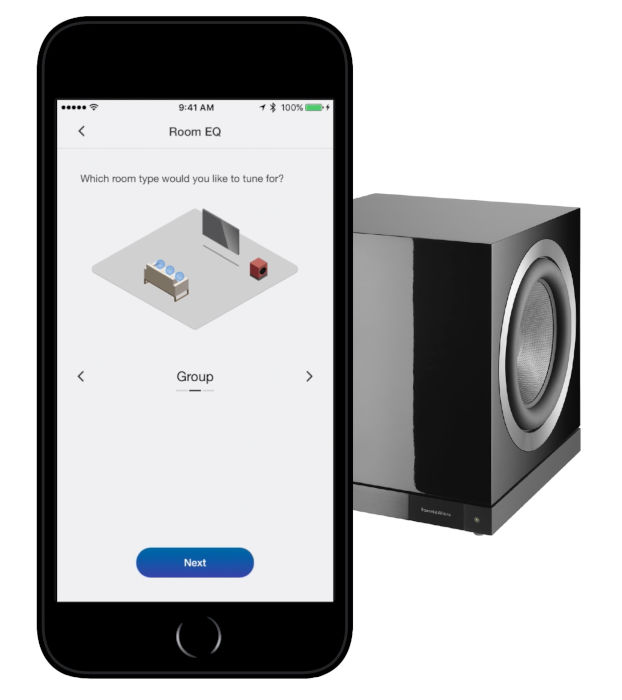

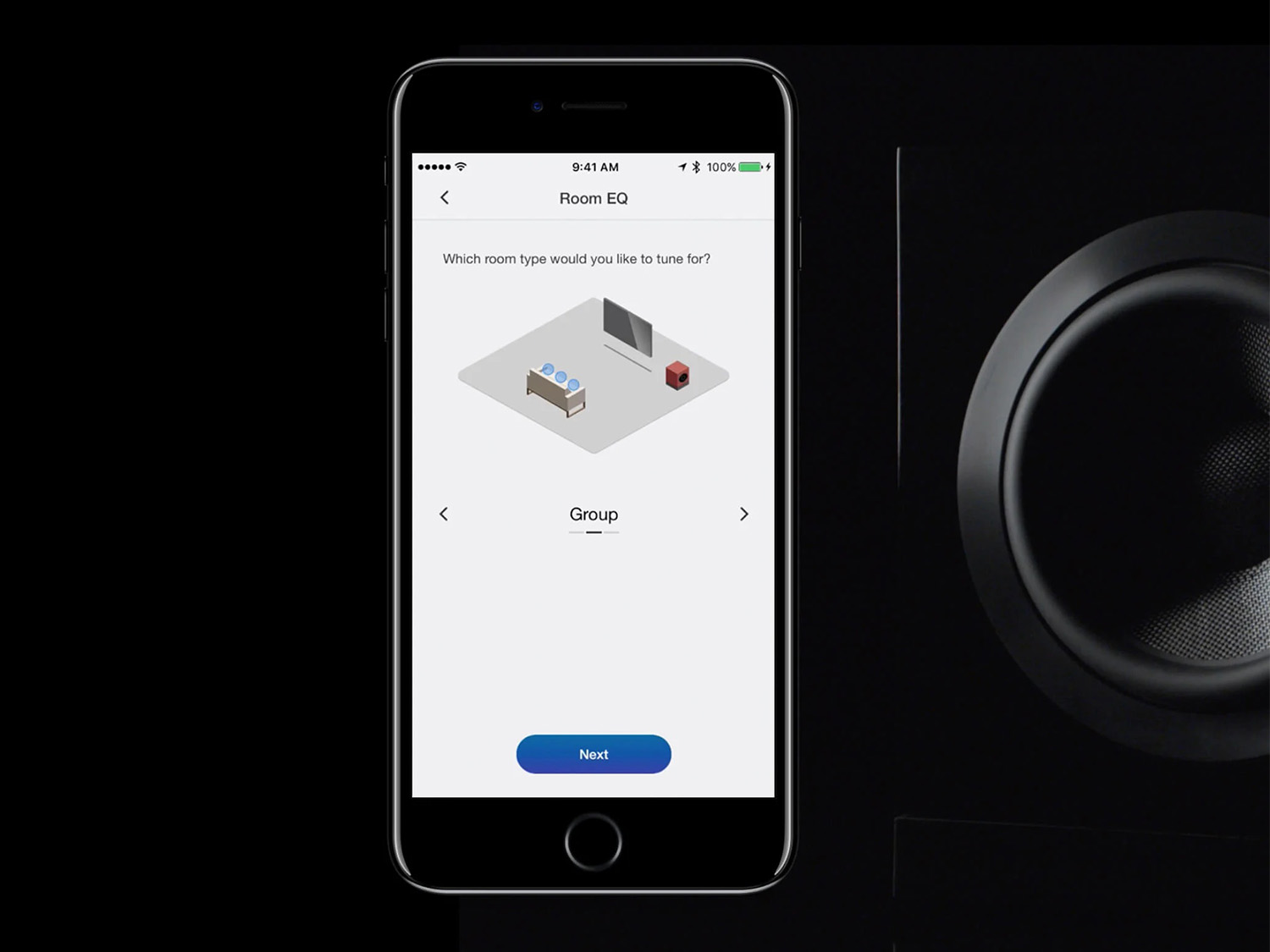

Take control

By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximize your sound quality.

Features
  • 1000w Class D Hypex amplifier
  • 2 x 200mm (8in) Aerofoil™ cone drive units in a balanced configuration
  • Digital preamplifier with Dynamic EQ
  • App-based set-up and BT-LE control
Specification
GENERAL SPECIFICATIONS
Product Type
  • Active Subwoofer
Driver Configuration
  • Balanced Opposed Driver Configuration
Frequency Range
  • 8.5Hz - 500Hz (-6dB)
Frequency Response
  • 10Hz - 350Hz (-3dB, centred on level at 100Hz)
Signal-to-Noise Ratio
  • 82dB
Finish
  • Gloss Black
    • Black Grilles
  • Satin White
    • Grey Grilles
  • Rosenut
    • Black Grilles
AMPLIFIER SPECIFICATIONS
Amplifier Type
  • Class D Hypex
Maximum Power Output
  • 1000W
AUDIO PROCESSING
Preamplifier
  • Digital Preamplifier
Equalisation
  • Dynamic EQ
Setup and Control
  • App-Based Setup
  • Bluetooth Low Energy (BT-LE) Control
DRIVERS
Bass Drivers
  • 2 x 8" (200mm) Aerofoil™ Cone Drivers
  • Balanced Opposed Configuration
ANALOGUE INPUTS
RCA Inputs
  • 2 x RCA
  • 10kΩ Input Impedance
Balanced Inputs
  • 2 x XLR
  • 20kΩ Input Impedance
CONNECTIVITY
12V Trigger
  • 2 x 3.5mm
RS-232
  • 1 x 9-Pin D Connector
POWER
Power Consumption
  • 195W (Rated)
Standby Power Consumption
  • <0.5W
DIMENSIONS AND WEIGHT
Dimensions
  • 320mm Width
  • 300mm Depth
  • 360mm Height
Weight
  • 25kg
