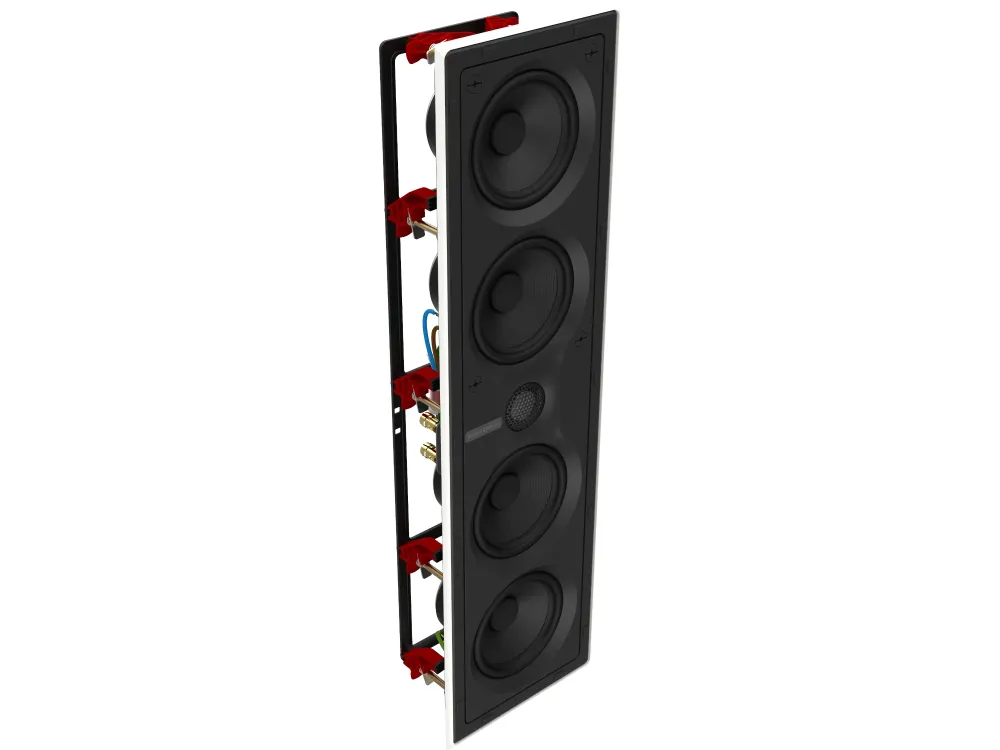

Bowers & Wilkins CWM7.4 S2 In Wall Speaker

Reference 2.5-way in-wall speaker

Designed for wall-mounted left, centre and right speaker positions in a discreet home cinema system, CWM7.4 S2 can also be mounted beside, above or below the screen. Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones.

$1,499.00

Warranty Period : 5 years

Sold as : 1 Unit

Warranty Period : 5 years

Sold as : 1 Unit

See nothing, hear everything

Designed for wall-mounted left, centre and right speaker positions in a discreet home cinema system, CWM7.4 S2 can also be mounted beside, above or below the screen, ensuring crystal-clear dialogue and dramatic special effects. Thanks to Bowers & Wilkins unique QuickDogs™ fixing method, installation is simple, requiring no tools. Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones.

Features
  • Carbon Dome Tweeter
  • Continuum Midrange
  • Aramid Fibre/Paper bass cones
Specification
GENERAL SPECIFICATIONS
Product Type
  • In-Wall Speaker
System Type
  • 2.5-Way In-Wall System
Frequency Range
  • 43Hz - 33kHz (-6dB)
Frequency Response
  • 45Hz - 28kHz ±3dB
Sensitivity
  • 86dB SPL (2.83Vrms, 1m)
Harmonic Distortion
  • <1% (2nd and 3rd harmonics, 90dB, 1m, 80Hz - 33kHz)
  • <0.5% (2nd and 3rd harmonics, 90dB, 1m, 120Hz - 33kHz)
Impedance
  • 8Ω (Nominal)
  • 4.9Ω (Minimum)
Mounting System
  • QuickDogs™
Finish
  • White Grille
DRIVERS
Tweeter
  • 1 x 25mm Carbon Dome Tweeter
Midrange Drivers
  • 2 x 100mm Continuum™ Cone Mid/Bass Drivers
Bass Drivers
  • 2 x 100mm Aramid Fibre/Paper Profile Bass Drivers
INSTALLATION SPECIFICATIONS
Pre-Mount Kit
  • PMK CWMC7
DIMENSIONS AND WEIGHT
Dimensions
  • 175mm Width
  • 92.5mm Depth (behind surface)
    • 8mm Protrusion (in front of surface)
  • 625mm Height
Cut-Out
  • 149mm Width
  • 599mm Height
Weight
  • 6.2kg
