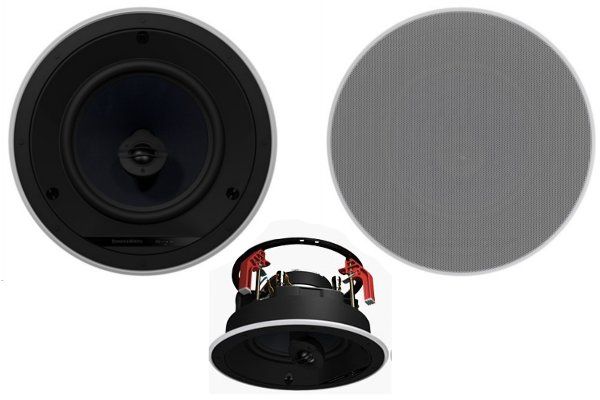

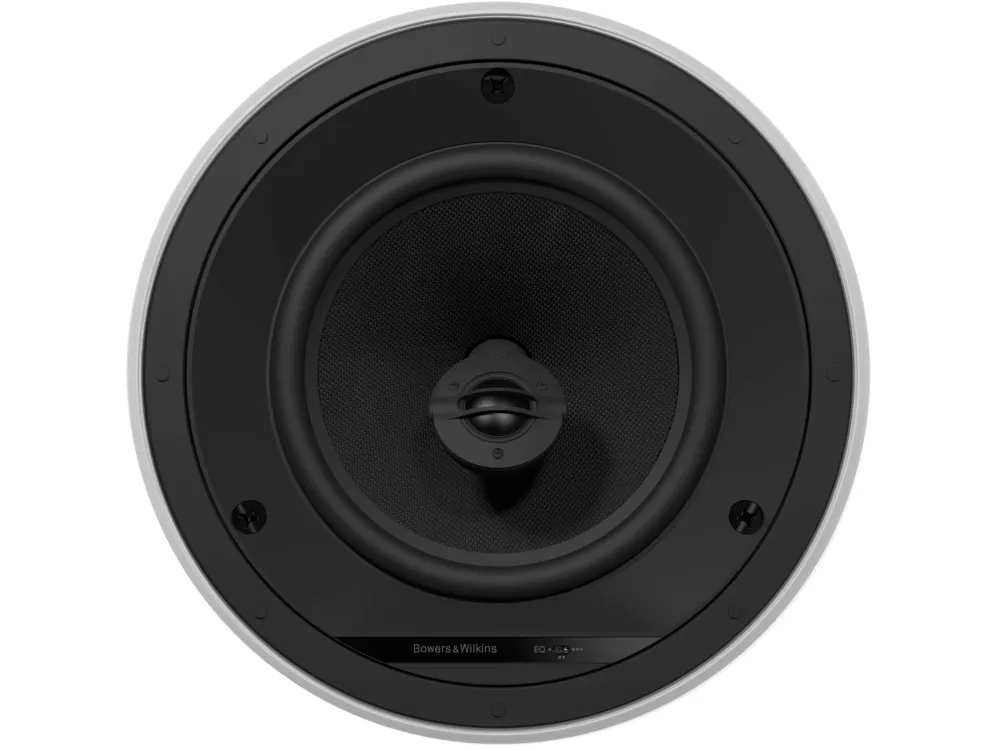

Bowers & Wilkins CCM684 Ceiling Speakers

Performance two-way in-ceiling speaker

The CCM684 is a high-performance ceiling speaker that’s simple to install and use. Its two-way design features a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. Plus, the tweeter housing pivots for an adjustable off-axis treble response.

$1,099.00

Warranty Period : 5 years

Sold as : One Pair

See nothing, hear everything

The CCM684 is a high performance ceiling speaker that’s simplicity itself to install and use. A two-way design, featuring a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogs™ and a plug-and-play functionality it is quick and easy to install.

Specification
GENERAL SPECIFICATIONS
Product Type
  • In-Ceiling Speaker
System Type
  • 2-Way In-Ceiling System
Frequency Range
  • 35Hz - 35kHz (-6dB)
Sensitivity
  • 88dB SPL (2.83V, 1m)
Impedance
  • 8Ω (Nominal)
  • 4.5Ω (Minimum)
Tweeter Adjustment
  • Pivoting Housing for Off-Axis Adjustment
Equalisation
  • 3-Position EQ Switch
Mounting System
  • QuickDogs™
Finish
  • White
DRIVERS
Tweeter
  • 1 x 25mm Soft Dome Tweeter
Bass/Midrange Driver
  • 1 x 200mm Glass Fibre Cone Bass/Midrange Driver
INSTALLATION SPECIFICATIONS
Frame Diameter
  • 290mm
Cut-Out Diameter
  • 250mm
Depth Behind Surface
  • 133mm
Protrusion
  • 4mm
Pre-Mount Kit
  • C8
Back Box
  • 6C
