BLUESOUND POWERNODE EDGE N230

Compact Wireless Music Streaming Amplifier

$1,199.00

Compact Wireless Music Streaming Amplifier

The POWERNODE EDGE is the perfect segue into “just add speakers” HiFi for the streaming age, combining streaming sources, control and amplification in a sleek and affordable device.

MEET THE POWERNODE EDGE

JUST ADD SPEAKERS.

All you need to do is connect a pair of passive speakers to experience an incredible all-in-one HiFi solution. Easily connect wired sources, like a TV or turntable, with HDMI eARC or the combo analog/digital input. Add the PULSE SUB+ Wireless Subwoofer for a powerful but compact 2.1 stereo system or even use the POWERNODE EDGE to power the rear channels of a wireless Bluesound surround sound setup. Using the BluOS Controller App, select songs from popular streaming services like Spotify, Tidal, Qobuz, SiriusXM, from your own music library through Apple Airplay2, aptX™ HD Bluetooth®, or even a network-connected drive or USB hard drive.

COMPACT POWER

Bring your speakers to life with the powerful, punchy 2 x 40 watts DirectDigital™ amplifier in the POWERNODE EDGE, able to handle hi-res, 24 bit/192 kHz files and MQA-encoded tracks with ease. Enjoy clarity in playback of everything from densely-layered heavy metal tracks to whisper-quiet dialogue in movies and TV shows. The POWERNODE EDGE decodes Dolby® Digital content on its own and can also be used to power the rear channel speakers of a wireless home theater system.

SPACE SAVING

Your sonic oasis doesn’t have to take up all your real estate. With the POWERNODE EDGE, gone are the days of bulky, oversized amplifiers. Comparable in size to the average hardcover book, this small yet mighty HiFi system transforms any space into a high-fidelity haven.

HI-RES FOR EVERY CORNER

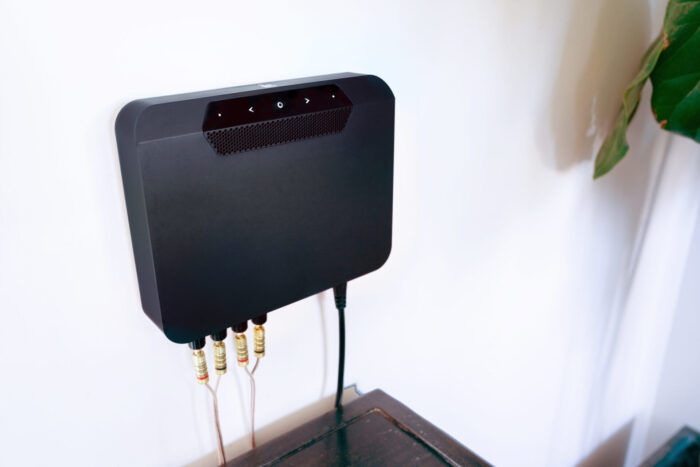

The sleek and compact form factor of the POWERNODE EDGE makes it ideal for secondary rooms like offices and back porches. Equip speakers in every corner of your house with power plus streaming and hide the POWERNODE EDGE away from sight in nooks like closets or behind sofas using the included multi-orientation wall-mount bracket.

INTUITIVE CONTROL

Control is always at your fingertips via the BluOS Controller app for iOS, Android, Mac, PC, or using the elegant capacitive touch panel for quick-access controls like Play, Pause, and Volume Up/Down, and Previous/Last Track. The POWERNODE EDGE connects to your home network via Wi-Fi or Ethernet. Hands-free control is possible with voice assistants like Siri, Alexa, and Google Voice. For professional smart home installers, full-feature drivers are available for Lutron, Crestron, RTI, Elan, and other popular control systems.

Features
  • Easily power a pair of passive speakers
  • 40 Watts per channel of DirectDigital™ amplification technology handling 24 bit/192 kHz files
  • A state-of-the-art Quad-Core 1.8GHz ARM® Cortex A53 Processor
  • HDMI eARC connectivity
  • Digital optical and analog input options, subwoofer output, and Bluetooth® wireless headphone output
  • Dolby® Digital decoding
  • Dual-band Wi-Fi, Gigabit Ethernet and support for 2-way Bluetooth® aptX™ HD
  • Stream hi-res content from internet radio stations, cloud music services or your own local music players
  • Intuitive control with the BluOS Controller app
  • Elegant capacitive touch panel for quick-access controls (Play, Pause, Volume Up/Down, Previous/Next Track)
  • Includes an easy-to-install, multi-orientation wall-mounting bracket
  • IR remote learning capability – optional control using the RC1 Remote Controller
  • Connect with the BluVoice skill to enable voice assistants like Alexa, Google Assistant and Siri to control Players around the home.
  • AirPlay 2 lets you play music or podcasts from wireless stereo components throughout your house — all in sync.
Specification

AUDIO

Supported Audio File Formats

  • MP3
  • AAC
  • WMA
  • WMA-L
  • OGG
  • ALAC
  • OPUS

Supported Hi-Res Audio File Formats

  • FLAC
  • MQA
  • WAV
  • AIFF
  • MPEG-4 SLS

Supported Multi-Channel Audio Formats

  • Dolby Digital

Processor

  • ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Native Sampling Rates

  • up to 192 kHz

Supported Network File Sharing

  • Server Messsage Block (SMB) up to 200,000 files

Bit Depths

  • 16 - 24

Performance

  • SNR -91dBA
  • THD+N, 0.008%

Amplification

  • DirectDigital™

Rated Power Output

  • 40W x 2 (8 Ohms)

IHF Dynamic Power

  • 80W (4 Ohms)
  • 50W (8 Ohms)

SOFTWARE & INTEGRATIONS

Operating System

  • BluOS

App Controller Operating Systems

  • iOS
  • Android
  • Windows (Vista, 7, 8, 10)
  • macOS 10, 11

Network File Sharing

  • SMB up to 200,000 track index

Album Art Supported

  • JPG
  • PNG

Internet Radio

Music Services

Voice Control

  • Amazon Alexa Skills
  • Actions on Google

3rd-Party

  • AirPlay 2
  • Spotify Connect
  • Tidal Connect
  • Roon Ready

Control Systems

  • Control4
  • Crestron
  • URC
  • RTI
  • ELAN
  • Lutron

USER INTERFACE & CONTROLS

Status Indicator

  • LED

Play/Pause Button

  • Touch LED

Volume Control Buttons

  • Touch LED

Previous/Next Track Buttons

  • Touch LED

Preset Buttons

  • In-App

GENERAL

Finish

  • Black Matte Satin Paint
  • White Matte Satin Paint

Included Accessories

  • 230V AC Power Cord
  • Ethernet Cable
  • TOSLINK Optical to 3.5mm Mini Adaptor x 2
  • Safety/Warranty Guide
  • Quick Setup Guide
  • Metal Mounting Bracket
  • Metal Mounting Screw
  • Rubber Mount Attachment

Max Power Consumption

  • 210W

Storage Environment

  • -10°C to 50°C
  • 20% to 80% relative humidity

Operating Environment

  • '0°C to 40°C

Product Weight

  • 1.37kg

Product Dimensions

  • 219mm Width
  • 44.5mm Height
  • 193mm Depth

Shipping Weight

  • 2.62kg

Shipping Dimensions

  • 300mm
  • 300mm
  • 95mm

CONNECTIONS

Network

  • Wi-Fi 5 (802.11ac, 2.4/5GHz)
  • Ethernet RJ45, GigE 1000 Mbps

Audio Input

  • Mini TOSLINK/3.5mm Stereo combo
  • HDMI eARC

Audio Output

  • 5-Way Binding Post Speaker Terminals

Bluetooth

  • Bluetooth 5.0 aptX HD
  • Two-Way (transmit & receive)

Headphones

  • Wireless Bluetooth Out

Subwoofer

  • RCA
  • Network Pairing to PULSE SUB+

USB

  • Type-A Port for external drive connection (Fat32 formatted)

IR Remote

  • IR Sensor Built In - front panel with IR Remote Learning
  • 3.5mm IR Input Jack
  • Universal bi-pin AC cord input (100-240AC)
