If you’re looking for uncompromising cinema sound that fits easily into your life, look no further than our flagship Mini Theatre system. The MT-60D system comprises of M-1 (mk2) speakers with the stunning power and control of a PV1D subwoofer to create a sound
that will keep you gripped, right up until the final frame.

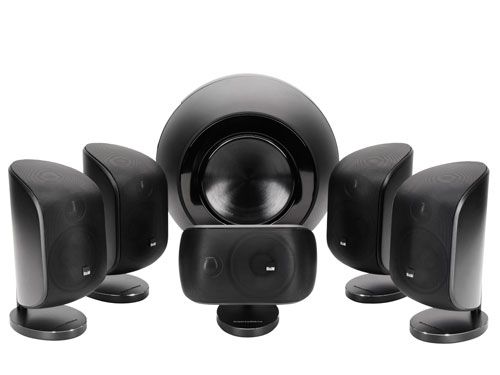

System consists of:
5x B&W M1 (mk2) Satellite Speakers
1x B&W PV1D Active Subwoofer
B&W M1 (mk 2) Satellite Speakers
Sleek, compact, yet packing a powerful punch, the M-1 satellite speaker can be used on its own, with a subwoofer in a 2.1 system, or as the backbone of our Mini Theatre systems. From the inside out, the M-1(mk 2) was conceived as a unified system. Its design has evolved in a totally integrated way, from the custom-made crossover to the two-piece clamshell cabinet.
And now, following a complete technological overhaul, including all-new drive units designed in-house, it sounds better than ever. Dispersion has increased. Imaging is pin-point accurate. Performance is now full range. In fact, the improvement is such that a single pair of M-1s could happily take on the role of your dedicated stereo speakers.
The speaker’s versatility allows it to adapt perfectly to any home environment, no matter how awkward the space. You can put the M-1 on a bookshelf. Or mount it on a wall. Or position it on its own floor-length stand. It can even swivel to a horizontal position, for when you want to use one as a centre channel speaker. Available in a choice of Matte Black or Matte White finishes, its clamshell cabinet is formed from just two interlocking, continuously curving sections. It all adds up to stunning sound, whatever you are listening to.
Drive units 1x ø25mm (1in) metal dome high-frequency
1x ø100mm (4in) woven glass fibre cone bass/midrange
Sensitivity 85dB spl (2.83V, 1m) Nominal impedance 8ohm (minimum 4ohm) Crossover frequency 4kHz Recommended amplifier power 20W – 100W into 8ohm on unclipped programme Height 248mm (9.8in) Width 114mm (4.5in) Depth 162mm (6.4in) Net weight 2.3kg (5lb) including table stand Cabinet Matte White or Black Grille Matte White or Black perforated steel to match
PV1D Active Subwoofer
When you’ve pushed the boundaries of technological design further than anyone thought possible, what do you do? Simple: you keep pushing. The PV1 has long been regarded as something of an icon in domestic subwoofer design, both for its striking shape and superlative sonic performance. But by introducing a digital dimension for the upgraded PV1D, we think we’ve gone one better.
The PV1D’s inherent stability means it can be pushed just that bit further. The symmetrical mounting of its twin drive units keeps the subwoofer perfectly balanced and anchored to the floor. So there’s no rattle when it rumbles. The back-to-back arrangement also further improves the distribution of pressure inside the speaker. Coupled to an all-new amplifier generating 400 watts of power, the drivers have the dynamics and control to deliver all a subwoofer should. A big sound from a small bubble.
Adopting the digital platform developed for our flagship DB1 subwoofer allows the PV1D to be fine tuned and controlled with more precision than its predecessor. Do you love the visceral deep-bass impact of special movie sound effects? Or maybe you prefer a flatter response, to compensate for a more resonant listening environment? Whatever your listening tastes, with a full range of EQ options at your disposal, the choice is entirely up to you.
Drive units 2x ø200mm (8in) paper/Kevlar®/aluminium cone long-throw Amplifier Power output: 400W Rated power consumption: 150W Standby power consumption: <1W Input impedance: 100kOhm Signal / noise: >100dB Functions: 5 Presets Input sensitivity (analogue) Gain (digital) Low-pass filter frequency Low-pass filter slope Low-pass filter phase Auto on/standby Trigger on/standby Trigger preset switching RS-232 automation control Inputs: Stereo Line In (2x RCA Phono) Speaker Level In (5m cable supplied) Dimensions Height: 342mm (13.5in) Width: 270mm (10.6in) Depth: 358mm (14.1in) Net weight 18.7kg (41lb)
