AUDIOLAB 8300XP Power Amplifier

The 8300XP is a classic audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior.

Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining audiolab’s class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.

$3,100.00 Regular Price $3,449.99

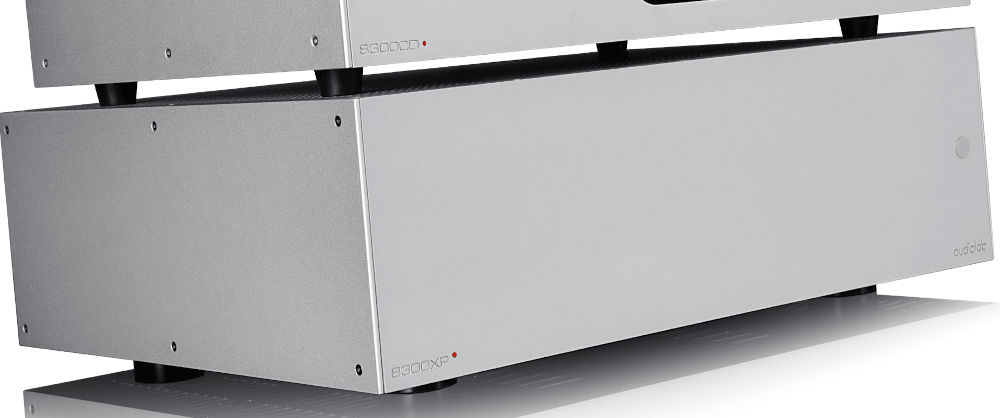

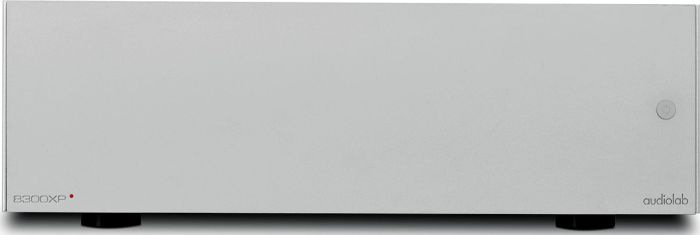

Minimalist exterior

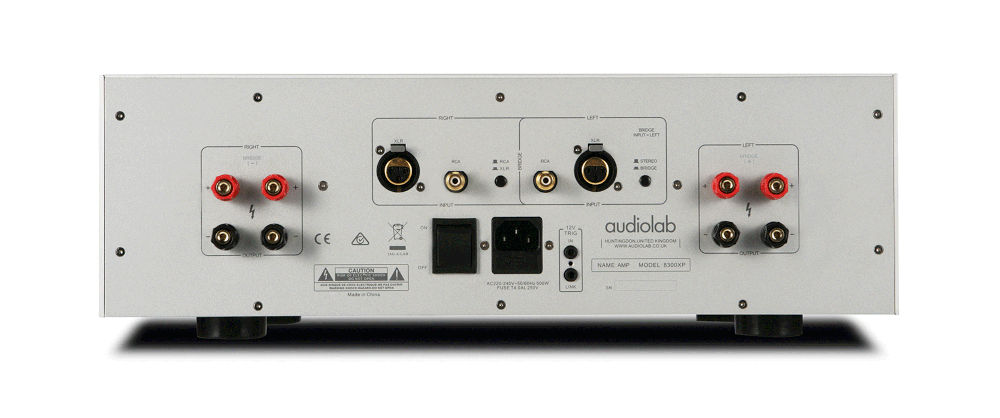

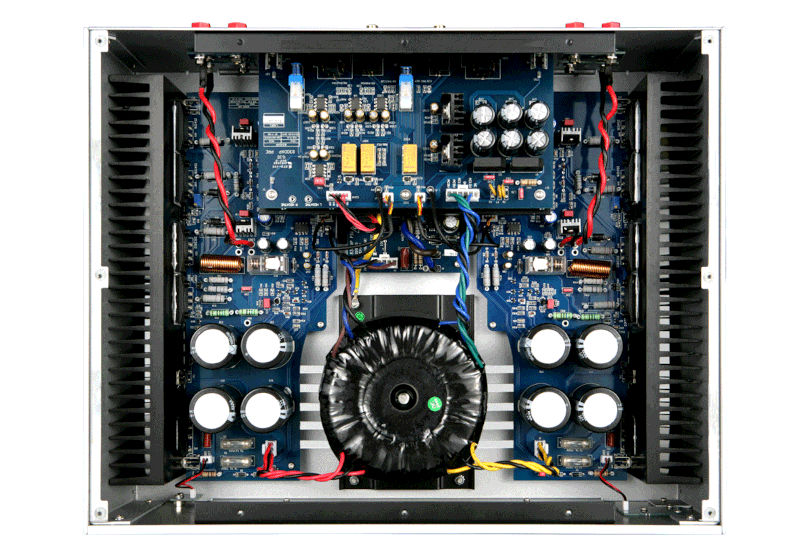

Exemplary build quality and reliability ensure that this is a power amp for all seasons, its versatility increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.

Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, thus increasing the power output to 480W per channel into 8 Ohms. All audiolab amplifiers are gain-matched, ensuring perfect integration with other audiolab components.

Thrilling to listen to and utterly dependable, the 8300XP is a genuine audio thoroughbred – the perfect partner for audiolab 8300CD, or peerless M-DAC range.

Specification

Rate power output

  • 140W RMS (8Ω <1% THD, 1kHZ stereo)

  • 230W RMS (4Ω <1% THD, 1kHZ stereo)

  • 480W RMS (8Ω <1% THD, 1kHZ bridge)

Gain

  • 29dB @ 1kHz (stereo)

  • 36dB @ 1kHz (bridge)

Input sensitivity

  • 1100mV

Input impedance

  • 15k (balanced)
  • 10k (unbalanced)

Frequency response

  • 20Hz - 80kHz (-3dB

Total harmonic distortion (THD)

  • 0.004% (20W, ref. 1kHZ)

Intermodulation distortion (IM)

  • 0.004% (20W, ref. 7kHz + 60Hz)

Transient inermodulation distortion (TID)

  • 113dB (A Weighted, ref. 140W)

Signal-to-noise ratio (S/N)

  • 140W / 113dB

Damping factor

  • 160

Power Requirement

  • 240V ~ 50-60Hz

  • 230V ~ 50-60Hz

  • 115V ~ 50-60Hz

  • 100V ~ 50-60Hz

Dimensions

  • 444mm Width
  • 367mm Depth
  • 149mm Height

Carton Size

  • 550mm Width
  • 580mm Depth
  • 260mm Height

Weight

  • 16kg Net
  • 18.5kg Gross
