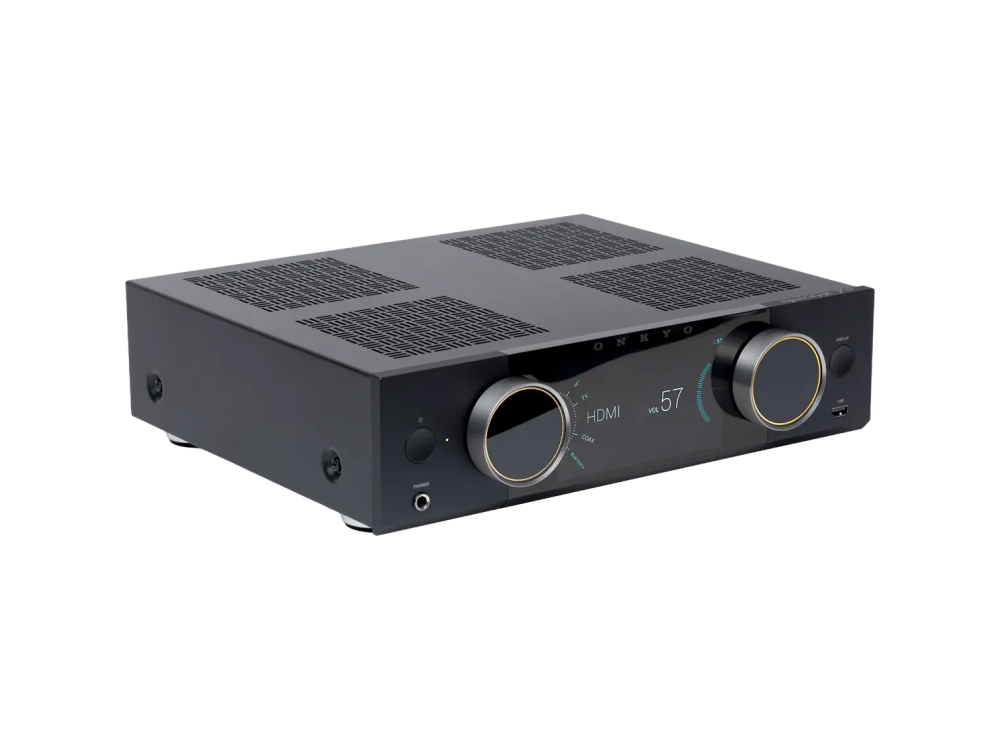

ONKYO MUSE Y-50 Streaming Amplifier

Network Streamer & Integrated High-Power Amplifier

The inspiring Onkyo Muse Y-50 fuses 80 years of Japanese audio expertise into an elegant, 250W hi-fi hub with premium design, smart features, and versatile connectivity.

$3,399.00
Brand

Warranty Period : 2 years

Sold as : 1 Unit

Warranty Period : 2 years

Sold as : 1 Unit

Designed to inspire

The Onkyo Muse Series fuses 80 Years of Japanese audio precision into an all-in-one 2-channel system - boasting the latest streaming services to provide a universe of music and entertainment.

Grand dreams and elegant design

The Onkyo Muse Series simplifies an intricate, multifaceted audio system into an approachable, compact design with a beautiful LCD screen and enhanced interface - while maintaining our passion for premium acoustic performance.

Powerful, inspired sound

The Onkyo passion for sound refinement is manifested in the inspiring Muse Series. The Y-50 provides a powerful and detailed soundstage that conveys the artist's true intention without compromise. Designed with a full digital circuit and an Axign class D amplifier equipped with MOS FET output, the Y-50 delivers an impressive 250W (4 ohms) of accurate power - driving any size speaker with authority and bringing out its full potential.

Smart, modern interface

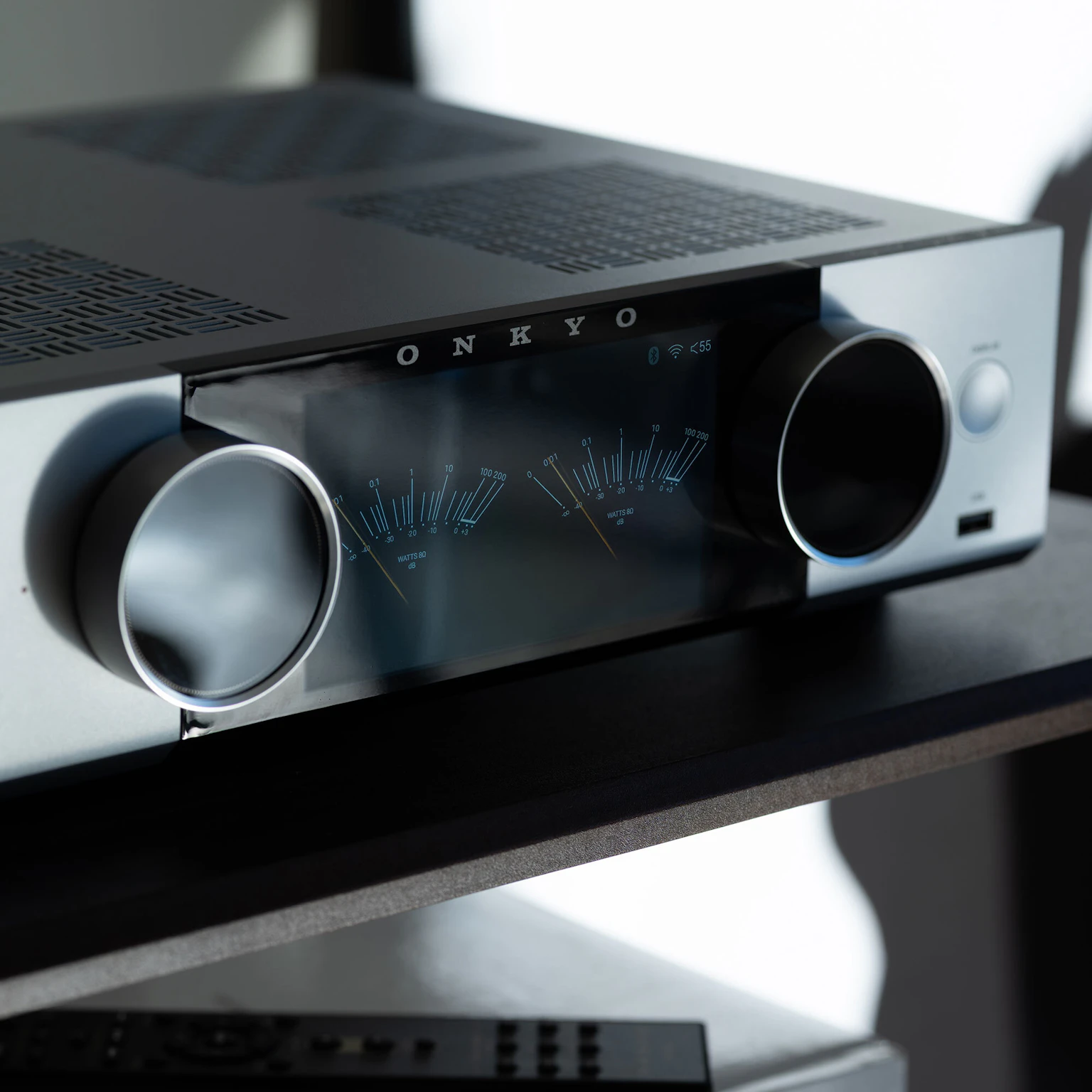

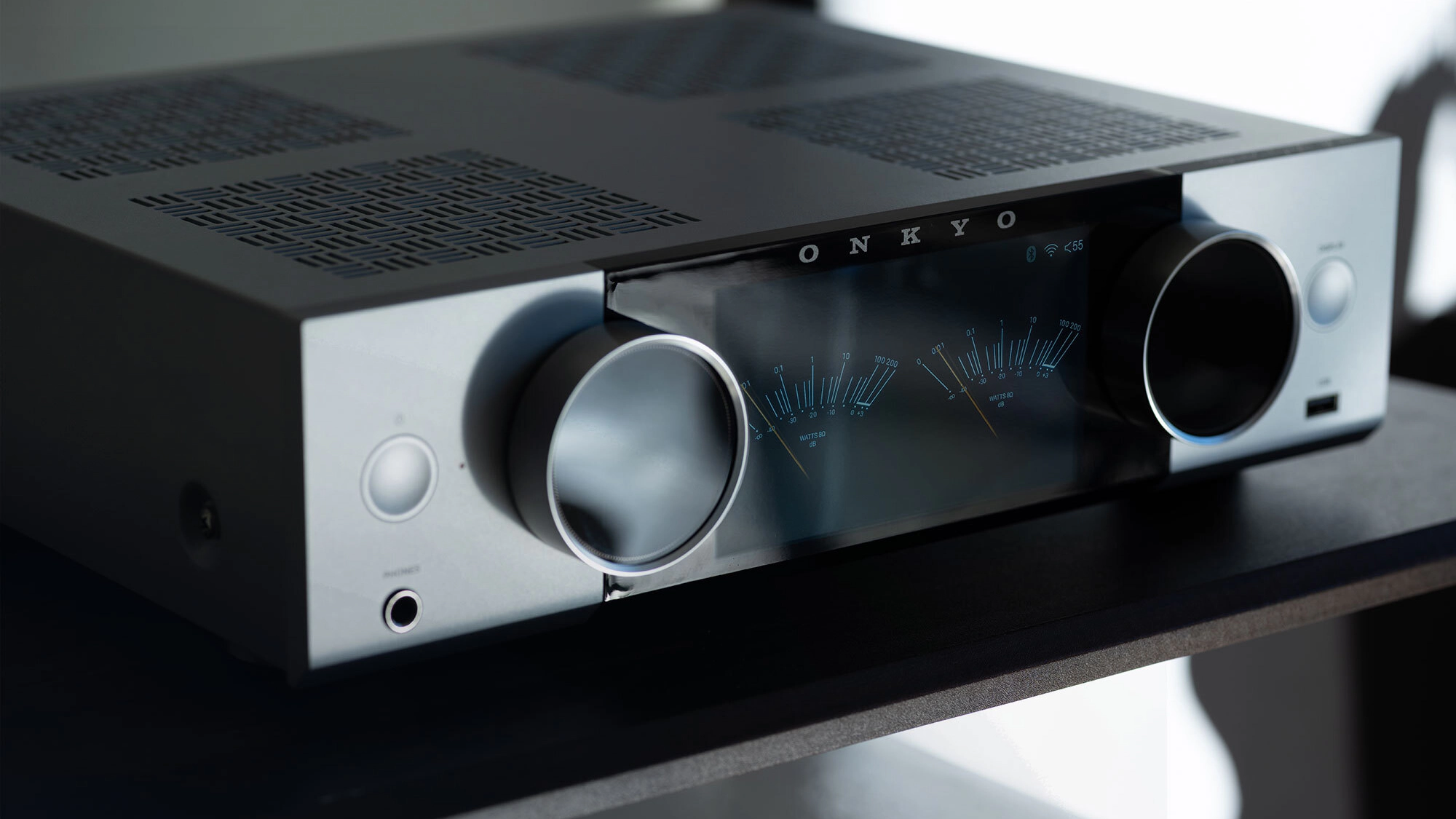

The Onkyo Muse Series Y-50 features a 5.46-inch color LCD display that provides detailed information – such as the song currently playing and an analog-style VU meter – creating a cutting-edge experience. Seamlessly play connected devices or stream your content from any of the following built-in platforms: Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Chromecast,. Using the Onkyo Controller app (available on all app stores) you can command the Y-50 and configure its settings for a transformative hi-fi experience.

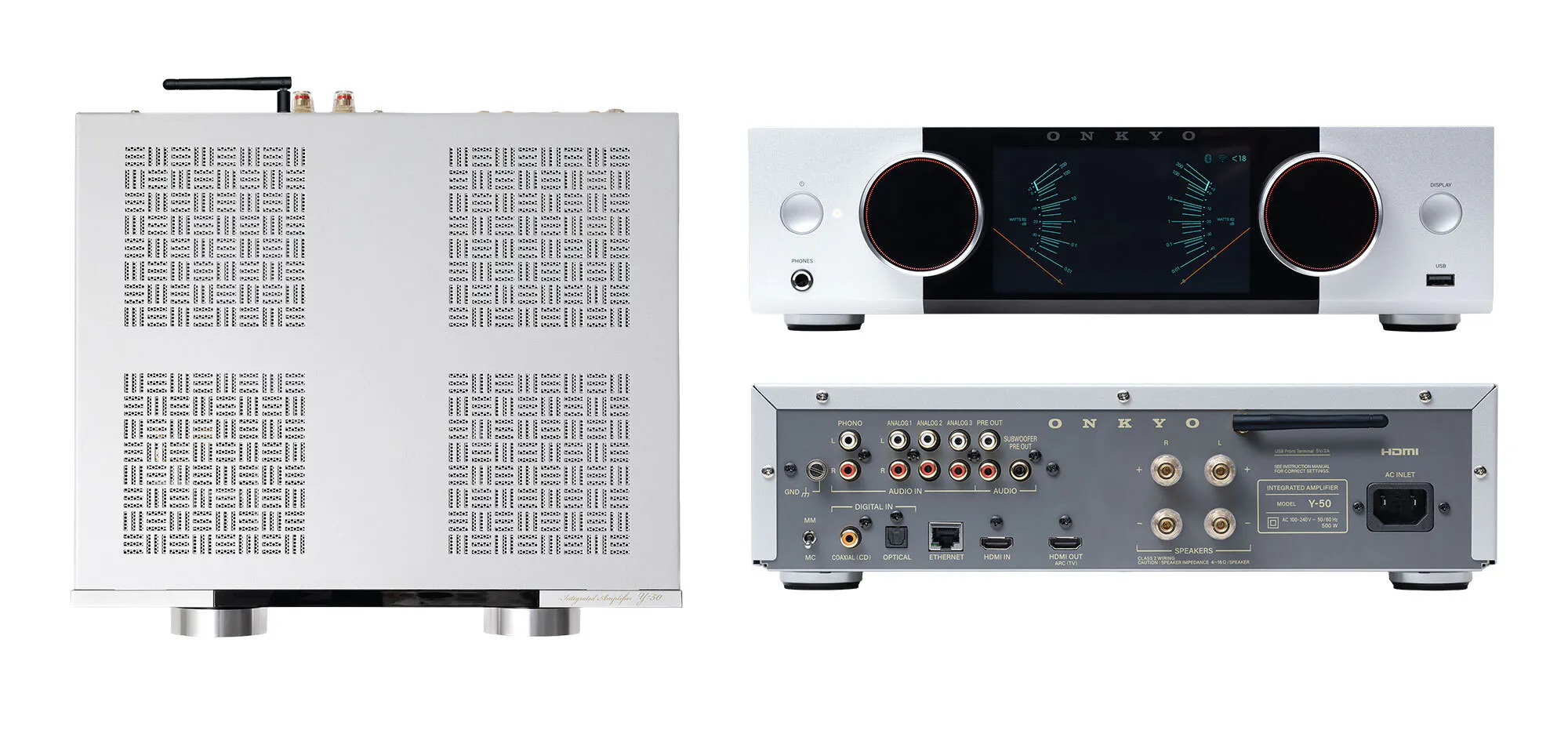

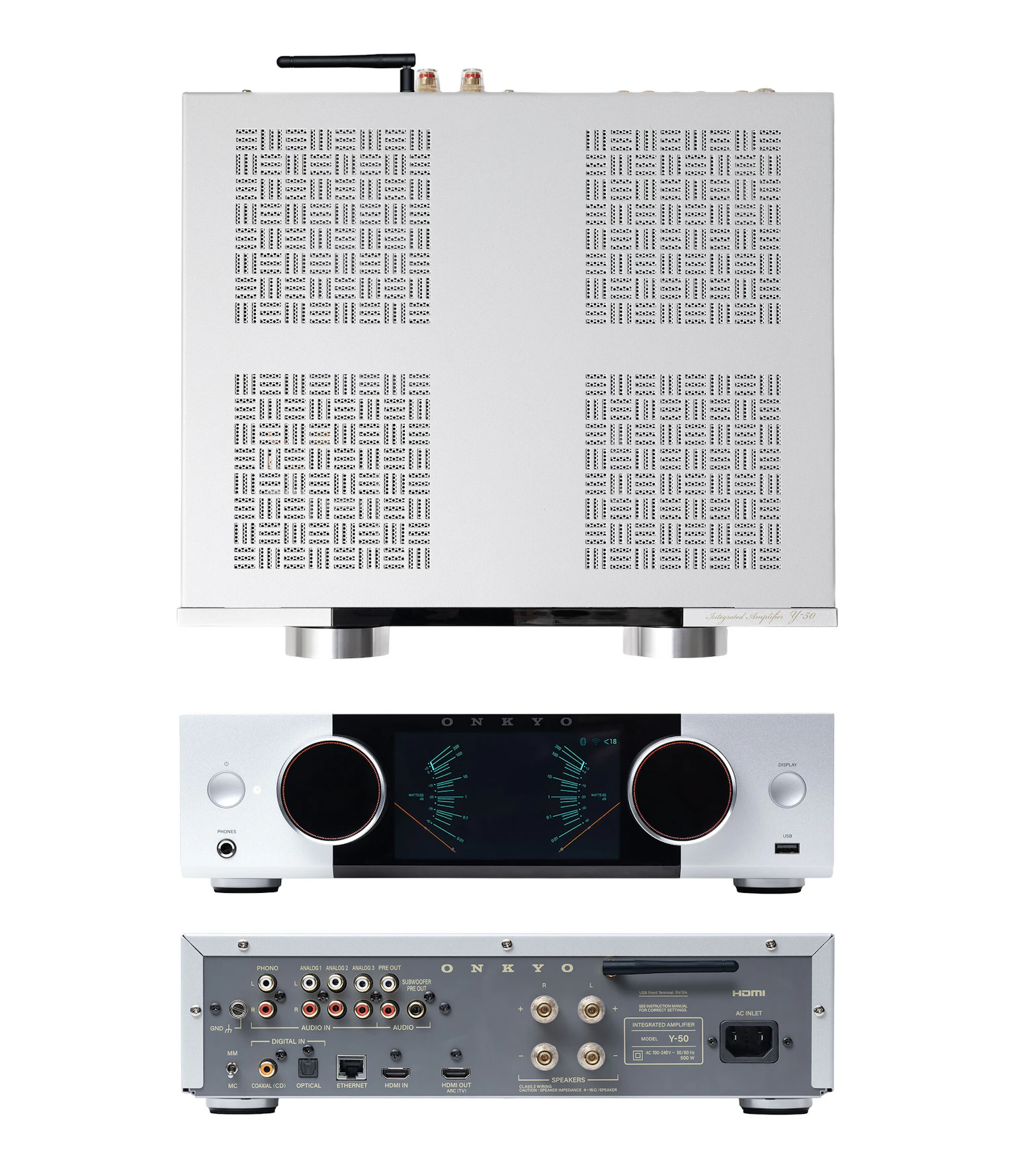

Built to stir the soul

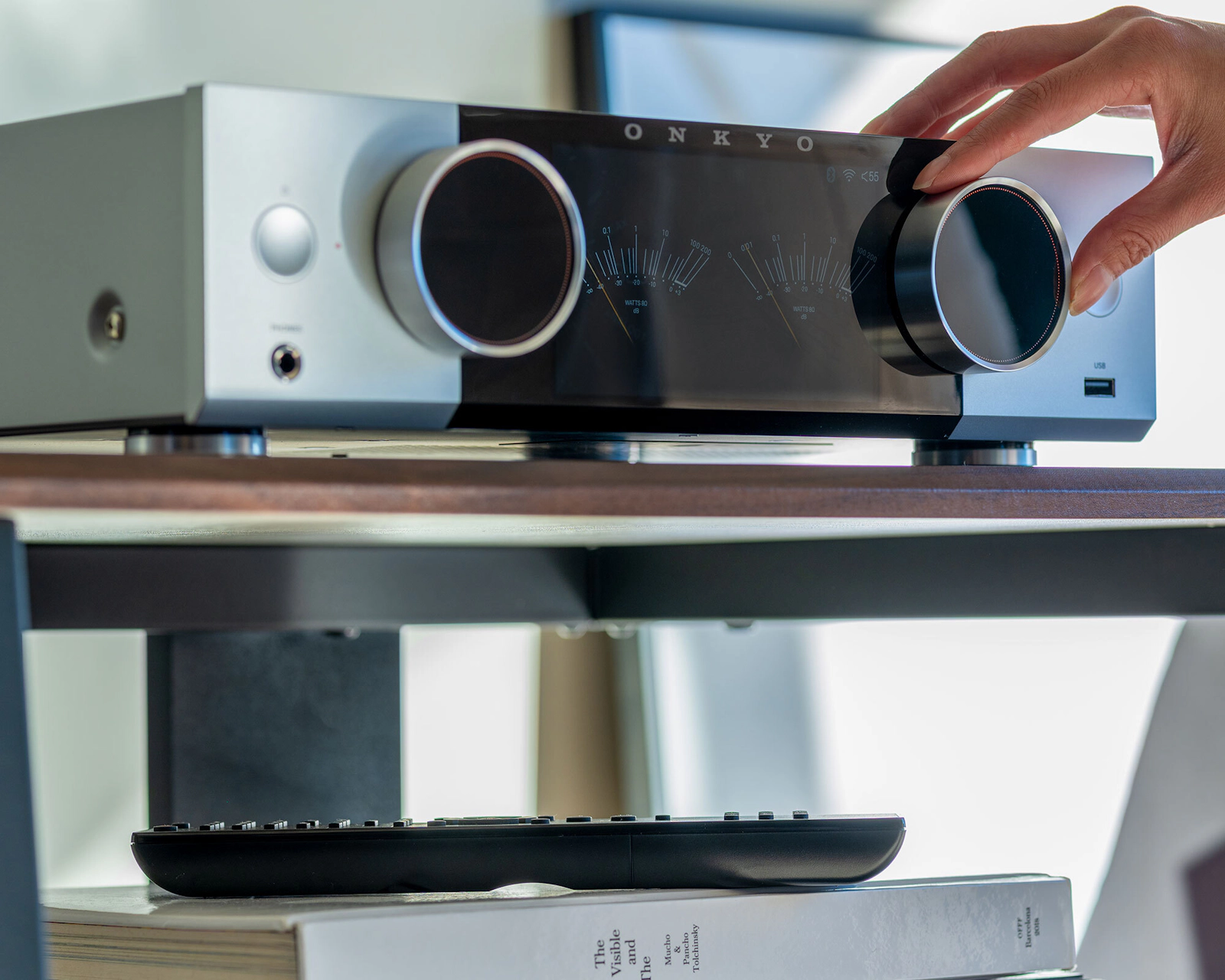

The compact design of the Onkyo Muse Series blends seamlessly into any home environment. The aluminum front panel not only gives the unit a high-end look but also provides exceptional strength, preventing speaker vibrations from interfering with sound quality. High-quality, audio-grade speaker terminals provide superior connection to any loudspeaker. The ventilated top plate features a traditional San Kuzushi pattern, expressing Onkyo’s deep Japanese roots and uncompromising commitment to craftsmanship. The electrical circuitry design is precisely temperature-controlled so no fans are needed, enabling quieter operation and better sound quality.

Everything you need for epic audio

Featuring a host of audio connections, the Onkyo Muse Y-50 sports three pairs of analog RCA inputs, a COAX input, a phono input (MM/MC compatible), and an HDMI/HDMI ARC input and HDMI output for video and gaming sound. It supports Ethernet and WiFi, enabling superior streaming playback. The Y-50 also features proprietary Onkyo Room EQ room calibration designed specifically for the Muse Series - measuring your listening environment and optimizing your sound field for the best experience.

Onkyo was founded in 1946 from a vision to fuse Japanese craftsmanship with groundbreaking acoustic innovation. For eight decades, we have pursued the soul of music by engineering audio experiences that move both heart and mind. Our laboratories continually break new ground with invention, precision, and daring ideas that push the boundaries of sonic exploration. Onkyo is a symbol of enduring artistry, uncompromising ambition and a global icon of sound technology for generations.

Specification
AUDIO SPECIFICATIONS
Amplifier Type
  • Class D
  • Axign Class D amplifier with MOSFET output
Amplifier Channels
  • 2 channels
Pre-Amplifier Channels
  • 2.1 channels
Power Output
  • 250W per channel (4Ω, 1kHz, 0.7% THD, 2 channels driven)
  • 125W per channel (8Ω, 20Hz - 20kHz, 0.08% THD, 2 channels driven)
Total Harmonic Distortion + Noise
  • 0.08% (20Hz - 20kHz, half power)
Frequency Response
  • 20Hz - 30kHz (+1dB / -3dB, Direct)
Tone Control
  • Bass: ±10dB (100Hz)
  • Treble: ±10dB (10kHz)
Signal to Noise Ratio
  • 100dB (IHF-A, LINE 2V IN, SP OUT)
  • 106dB (IHF-A, digital source with 0dB input, SP OUT)
  • 76dB (IHF-A, PHONO MM 5mV IN, SP OUT)
  • 60dB (IHF-A, PHONO MC 0.5mV IN, SP OUT)
Supported Speaker Impedance
  • 4Ω - 16Ω
Room Calibration
  • Onkyo Room EQ
Headphone Output
  • 80mW + 80mW (32Ω, 1kHz, 10% THD)
  • 6.3mm headphone jack
  • 13Ω - 600Ω supported headphone impedance
  • 20Hz - 40kHz headphone frequency response
ANALOGUE INPUTS
Analogue Inputs
  • 3 x Stereo RCA line inputs
  • 1 x Phono input
    • MM cartridge support
    • MC cartridge support
Input Sensitivity and Impedance
  • 200mV / 20kΩ (Line RCA)
  • 4mV / 47kΩ (Phono MM)
  • 0.4mV / 110Ω (Phono MC)
Phono Maximum Input Signal Voltage
  • 50mV (MM, 1kHz, 0.5%)
  • 4mV (MC, 1kHz, 0.5%)
DIGITAL INPUTS
Digital Audio Inputs
  • 1 x Optical digital input
  • 1 x Coaxial digital input
  • 1 x USB-A input
    • USB storage playback
Digital Audio Input Resolution Support
  • Coaxial / Optical
    • PCM
      • 16-24bit
      • 44.1-96kHz
HDMI Inputs
  • 1 x HDMI input
HDMI Input Resolution Support
  • Up to 4K, 120Hz
  • Up to 8K, 60Hz
HDMI Features
  • VRR
  • QFT
  • ALLM
  • QMS
  • DSC
  • HDCP 2.3
OUTPUTS
Analogue Outputs
  • 1 x Stereo RCA pre-out
  • 1 x Subwoofer pre-out
  • 1 x 6.3mm headphone output
Rated RCA Output Level and Impedance
  • 1V / 470Ω (Pre-out)
  • 1V / 470Ω (Subwoofer pre-out)
Digital Outputs
  • 1 x HDMI output
    • ARC
Speaker Outputs
  • Speaker terminals
NETWORK AND STREAMING
Network Connectivity
  • Ethernet LAN
    • 10BASE-T
    • 100BASE-TX
  • Wi-Fi
    • IEEE 802.11 a/b/g/n/ac
    • 2.4GHz band
    • 5GHz band
Streaming Services
  • Spotify
  • TIDAL
  • Qobuz
Streaming Protocols
  • Spotify Connect
  • TIDAL Connect
  • Qobuz Connect
  • Google Cast
  • Apple AirPlay 2
  • Bluetooth
Network Functions
  • Music server playback
  • USB storage playback
  • Onkyo Controller app control
Bluetooth
  • Bluetooth 5.1
  • SBC
  • AAC
  • A2DP 1.4
  • AVCTP 1.4
  • AVDTP 1.3
  • AVRCP 1.6.2
  • 20Hz - 20kHz transmission range (44.1kHz sampling frequency)
  • Approx. 15m maximum communication range (line of sight)
USB FUNCTIONS
Supported File Systems
  • FAT16
  • FAT32
Supported Audio Formats
  • PCM
    • MP3
      • 44.1kHz
      • 48kHz
      • 8kbps - 320kbps
      • VBR
      • 2ch
    • WMA
      • 44.1kHz
      • 48kHz
      • 5kbps - 320kbps
      • VBR
      • 2ch
    • WAV
      • Up to 24-bit / 192kHz
      • 2ch
    • AIFF
      • Up to 24-bit / 192kHz
      • 2ch
    • AAC
      • Up to 96kHz
      • 8kbps - 320kbps
      • VBR
      • 2ch
    • FLAC
      • Up to 24-bit / 192kHz
      • 2ch
    • Apple Lossless
      • Up to 24-bit / 192kHz
      • 2ch
DISPLAY AND CONTROL
Display
  • 5.46-inch colour LCD display
  • Track information display
  • Analog-style VU meter display
Control Features
  • Onkyo Controller app support
  • Direct Mode
  • Bass adjustment
  • Treble adjustment
  • Balance adjustment
  • Vocal Enhancer
  • MY INPUT preset memory
  • Display dimmer
  • Auto standby
  • HDMI CEC
  • Firmware update via network
  • Firmware update via USB
POWER REQUIREMENTS
Power Requirements
  • 100V - 240V AC
  • 50/60Hz
Power Consumption
  • 115W operating
  • 1.8W network standby (wired)
  • 1.8W network standby (wireless)
  • 0.7W HDMI CEC standby
  • 2.2W standby (all on)
PHYSICAL SPECIFICATIONS
Dimensions
  • 350mm Width
  • 337mm Depth
  • 99mm Height
Weight
  • 4.9kg
