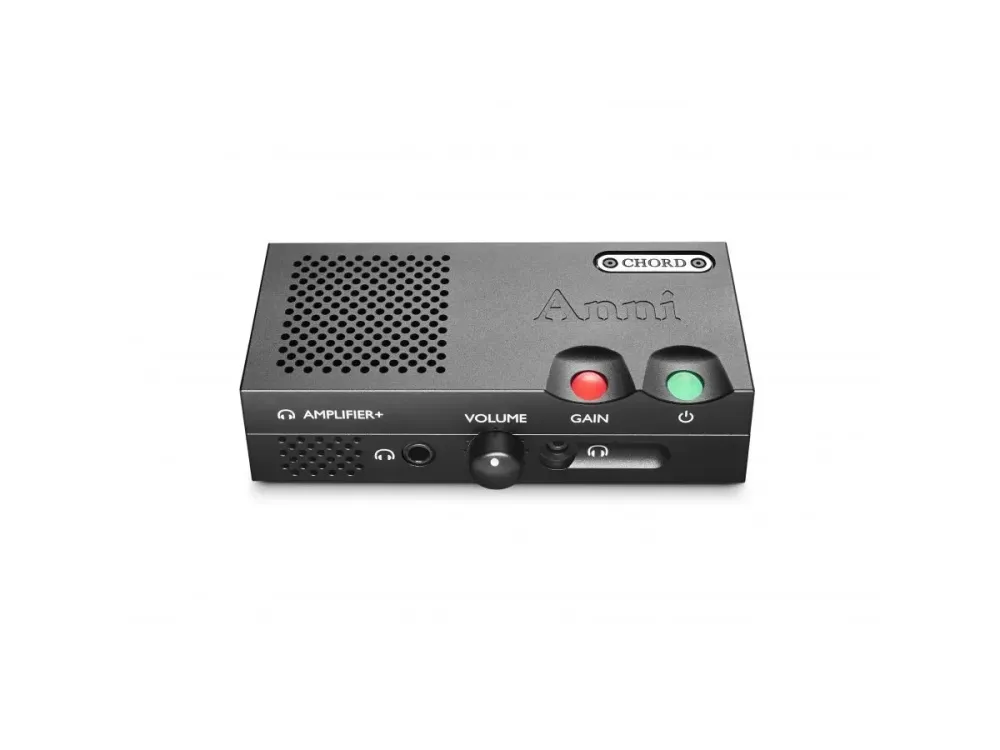

CHORD ELECTRONICS Anni Stereo Integrated Amplifier

Anni is a desktop integrated amplifier that introduces our next-generation ULTIMA technology to both headphones and compact loudspeakers.

$2,500.00

Warranty Period : 3 years

Warranty Period : 3 years

Anni is our first-ever desktop integrated amplifier. Capable of driving both headphones and compact loudspeakers, Anni benefits from the company’s proprietary ULTIMA circuit topology and is perfectly positioned to exploit the full potential of today’s high-performance headphones, desktop monitors and high-resolution audio sources.

The new Anni desktop integrated amplifier forms part of the Qutest range and seamlessly complements the resolving abilities of the multi-award-winning Qutest standalone DAC and Huei phono stage. As a system, the Qutest components provide an unrivalled desktop audio solution, offering class-leading digital and analogue technologies for the modern music lover. The company’s compact QSS (Qutest Stand System) modular equipment rack provides the perfect support, too.

Anni offers the recently announced dual-feed-forward error-correction circuit topology whether using headphones or compact loudspeakers. Anni’s advanced technology allows it to drive any headphone load, error-monitored and compensated amplification at all times.

Benefitting from both 3.5 mm headphone outputs and ¼-inch (6.35 mm) outputs, so two can listen simultaneously, plus 4 mm banana-type loudspeaker outputs, Anni delivers 10 watts of quality ULTIMA amplification, controlled by a fascia-mounted volume control that also doubles as an input selector switch for Anni’s two line-level inputs. A two-stage gain control for loudspeakers provides additional flexibility with a wide range of desktop monitors.

Features
  • Next-generation Dual Feed Forward amp topology

  • Powerful headphone amp with 3.5 mm and 6.35 mm outputs

  • 4 mm (banana) loudspeaker outputs

  • Gain control

  • Two line inputs

  • 10W into 8 Ohms

  • Class A/B Sliding Bias

  • HF Switch Mode Power Supply

  • Trickle down Ultima technology

  • Unbalanced RCA Inverted Inputs

  • Solid Aluminium Chassis

Specification
GENERAL SPECIFICATIONS
Product Type
  • Stereo Amplifier
  • Desktop Integrated Amplifier
Finish
  • Jett Black Aluminium
Power Requirements
  • 15V DC
Included Power Supply
  • 15V DC, 6A Switch-Mode Power Supply
  • 1.5m Cable
AMPLIFICATION
Amplifier Design
  • Class AB Sliding Bias
  • ULTIMA Circuit Topology
  • Dual Feed Forward Error Correction
Power Output
  • 10W into 8Ω
Total Harmonic Distortion
  • 0.02%
Signal-to-Noise Ratio
  • -92dB
Noise Floor
  • -110dB
Frequency Response
  • 5Hz - 60kHz (-3dB)
Gain Modes
  • Low
  • High
    • Speaker Outputs Only
  • Headphone Outputs
    • Automatically Operate in Low Gain
ANALOGUE INPUTS
Line Inputs
  • 2 x Stereo RCA Line Inputs
OUTPUTS
Speaker Outputs
  • 1 x Stereo Pair
    • 4mm Banana
Headphone Outputs
  • 1 x 6.35mm
  • 1 x 3.5mm
  • Both Outputs May Be Used Simultaneously
Output Switching
  • Speaker Outputs Automatically Disable When Headphones Are Connected
DC Output
  • 1 x 12V DC Output
CONNECTIVITY
Ground Terminal
  • 1 x Ground Terminal
DIMENSIONS AND WEIGHT
Dimensions
  • 160mm Width
  • 96.6mm Depth
  • 42.5mm Height
Weight
  • 625g
