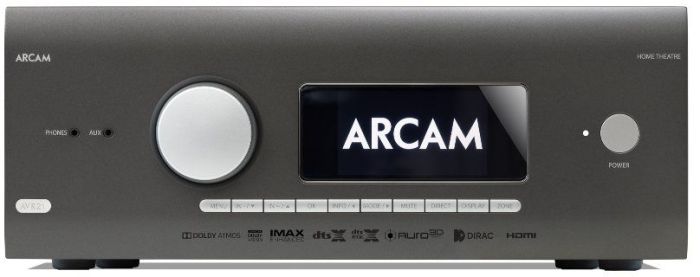

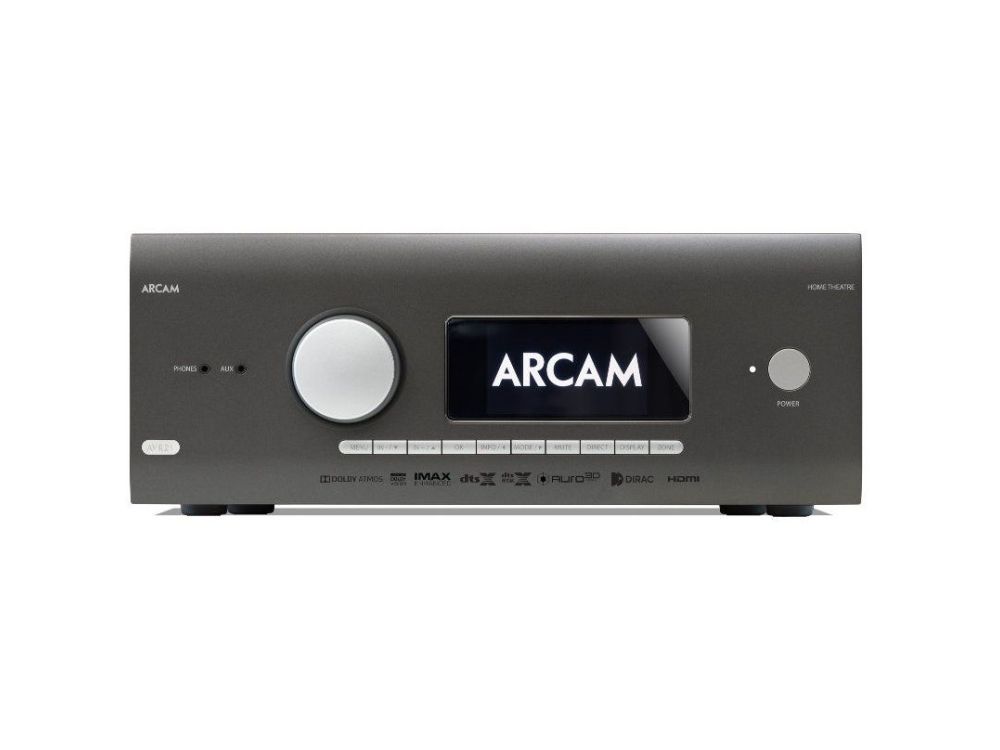

ARCAM AVR21 Home Theatre Receiver

HDMI 2.1 High Power Class AB AV Receiver

$9,995.00

Brand

Arcam

DESCRIPTION

Rich Musicality + Immersive Sound = Stunning Realism

The AVR21 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR21 can deliver incredible theatre experiences.

The Arcam AVR21 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR21 features an over engineered toroidal transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast® (AUDIO), Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr21/

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

Features

Features
16 Channels of Dolby Atmos, DTS:X, and AURO-3D Decoding 7 HDMI Inputs, 3 HDMI Outputs including Zone 2. eARC Compatible HDMI 2.1 with HDCP2.3 All inputs support 8K@60FPS, and 4K@120FPS Supports Dolby Vision, HDR10+, HDR10, and HLG Includes Dirac Live Room Correction Ready for Dirac Live Bass Control. _{Purchase a license at https://www.dirac.com/online-store/} Dual ESS 9026PRO Audiophile DACs with ESS Reference Voltage Regulators 7 Chanels of high power Class A/B Amplification Wi-Fi / Ethernet, RS232, and IR Control Google Chromecast built-in for streaming audio Apple Airplay2 Bluetooth aptX HD Free MusicLife iOS and Android UPnP app Supports MQA Roon Ready

Specifications

Specification

Continuous Power Output per channel
2 channels driven, 20Hz ‑ 20kHz, <0.02% THD	110W into 8 Ohms 175W into 4 Ohms
2 channels driven, 1kHz, 0.2% THD	125W into 8 Ohms 190W into 4 Ohms
7 channels driven, 1kHz, 0.2% THD	90W into 8 Ohms 110W into 4 Ohms
Residual noise & hum (A-wtd)	<0.15mV
Stereo Line Inputs
Maximum input	4.5V RMS
Nominal sensitivity (User Adjustable)	1V 2V 4V
Input impedance	47kΩ
Signal/noise ratio (A-wtd ref 100W)	100dB 110dB Stereo Direct
Frequency response	20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level	1V RMS (max. 5V RMS)
Output impedance	560Ω
THD+N (20Hz—20kHz)	–100dB
Headphone Output
Maximum output level into 32Ω	5Vrms
Output impedance	<100Ω
General
Mains Voltage	220-240V, 50Hz
Power Consumption	1500W PEAK (Thermal dissipation approx. 5200 BTU/Hour) 100W Idle (Thermal Dissipation approx. 350 BTU/Hour) <0.5W Standby
Dimensions	433mm Width 425mm Depth 171mm Height
Weight	16.6kg
Supplied Accessories	Mains Lead Remote Control 2x AAA Batteries Quick Start Guide (full manual online HERE) DAB/FM Antenna 3x Wi-Fi Bluetooth Antennas Calibration Microphone USB Cable

GENERAL SPECIFICATIONS
Product Type	AV Receiver HDMI 2.1 High Power Class AB AV Receiver
Powered Channels	7
Processing Channels	16
Tuner	FM DAB (market dependent)
AMPLIFIER SPECIFICATIONS
Amplifier Class	Class AB
Power Output	110W (2 channels driven, 20Hz - 20kHz, 8Ω, <0.02% THD) 175W (2 channels driven, 20Hz - 20kHz, 4Ω, <0.02% THD) 125W (2 channels driven, 1kHz, 8Ω, 0.2% THD) 190W (2 channels driven, 1kHz, 4Ω, 0.2% THD) 90W (7 channels driven, 1kHz, 8Ω, 0.2% THD) 110W (7 channels driven, 1kHz, 4Ω, 0.2% THD)
Residual Noise and Hum	<0.15mV (A-weighted)
ANALOGUE INPUTS
Line Inputs	6 x Stereo RCA Line Inputs (Rear) 1 x 3.5mm Stereo Line Input (Front AUX)
Maximum Input Level	4.5Vrms
Input Sensitivity	1V 2V 4V User Adjustable
Input Impedance	47kΩ
Signal-to-Noise Ratio	100dB (Normal, A-weighted, ref. 100W) 110dB (Stereo Direct, A-weighted, ref. 100W)
Frequency Response	20Hz - 20kHz ±0.2dB
DIGITAL INPUTS
HDMI Inputs	7 x HDMI
Digital Audio Inputs	4 x Coaxial Digital Inputs (RCA) 2 x Optical Digital Inputs (TOSLink)
HDMI Version	HDMI 2.1
HDCP Version	HDCP 2.3
HDMI Input Resolution Support	Up to 8K, 60Hz Up to 4K, 120Hz
HDR Support	Dolby Vision HDR10+ HDR10 HLG
HDMI Features	eARC
AUDIO PROCESSING
Surround and Immersive Audio	Dolby Dolby Atmos Dolby TrueHD Dolby Digital Plus Dolby Digital 5.1 Dolby Surround DTS DTS:X DTS-HD Master Audio DTS 5.1 DTS-ES 6.1 Matrix DTS-ES 6.1 Discrete DTS 96/24 DTS Neural:X AURO-3D IMAX Enhanced
Room Correction	Dirac Live Dirac Live Bass Control Ready Optional Licence Required
DAC Configuration	2 x ESS 9026PRO DACs ESS Reference Voltage Regulators
Additional Audio Format Support	MQA
NETWORK AND STREAMING
Network Interfaces	Wi-Fi Ethernet
Streaming Support	Apple AirPlay 2 Google Chromecast Built-In Spotify Connect Tidal Connect UPnP Roon Ready
Network Application	MusicLife iOS Android UPnP Playback
CONNECTIVITY
Bluetooth	aptX HD
Control Interfaces	RS232 IR Control
USB Port	Firmware Update 5V / 0.5A
OUTPUTS
HDMI Outputs	2 x Main Zone HDMI Output 1 Supports eARC 1 x Zone 2 HDMI
Speaker Outputs	7 x Speaker Terminal Pairs
Preamplifier Outputs	15 x RCA Channel Outputs 2 x RCA Subwoofer Outputs
Digital Audio Output	1 x Optical Digital Output (TOSLink)
Preamplifier Output Level	1Vrms Nominal 5Vrms Maximum
Preamplifier Output Impedance	560Ω
Preamplifier THD+N	-100dB (20Hz - 20kHz)
Headphone Output	1 x 3.5mm Stereo 5Vrms Maximum Output (32Ω) <100Ω Output Impedance
MULTI-ZONE
Zone 2 Outputs	1 x HDMI 1 x Stereo RCA Line Output
Zone 2 Control	IR 12V Trigger
GENERAL SPECIFICATIONS
Power Requirements	110 - 120V AC or 220 - 240V AC 50/60Hz
Power Consumption	1.5kW (Maximum) 100W (Idle, Typical) <0.5W (Standby)
Thermal Dissipation	Approximately 5200 BTU/hour (Maximum) Approximately 350 BTU/hour (Idle, Typical)
Supplied Accessories	Mains Lead Remote Control 2 x AAA Batteries Quick Start Guide DAB/FM Aerial 3 x Wi-Fi/Bluetooth Antennas Calibration Microphone USB Cable
DIMENSIONS AND WEIGHT
Dimensions	433mm Width 425mm Depth (including speaker terminals) 171mm Height (including feet)
Weight	16.6kg
