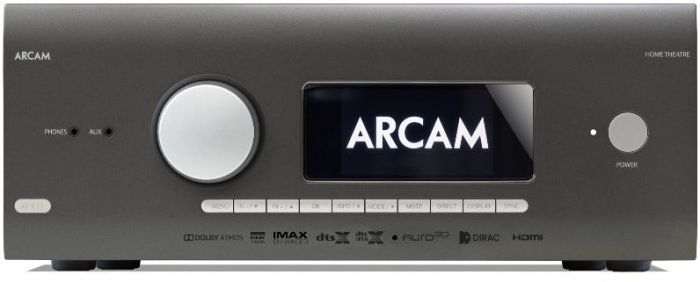

ARCAM AVR11 Home THeatre Receiver

HDMI 2.1 Class AB AV Receiver

$6,495.00

Rich Musicality + Immersive Sound = Stunning Realism

The AVR11 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR11 can deliver incredible theatre experiences.

The Arcam AVR11 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR11 features an over-engineered power supply and transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr11/

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

Features

Features
Dolby Atmos, DTS:X & AURO-3D 7.1.4 decoding 7 HDMI inputs, 2 HDMI outputs, eARC compatible HDMI 2.1 with HDCP2.3 All inputs support 8K@60fps and 4K@120fps Supports Dolby Vision, HDR10+, HDR10 and HLG Includes Dirac Live® room correction Ready for Dirac Live Bass Control* ^{* purchase a license at https://www.dirac.com/online-store/} Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators 7 Channels of Class AB power amplification Wi-Fi / Ethernet, RS232 and IR control Google Chromecast® built-in for streaming audio Apple® Airplay2 Bluetooth aptX®HD Free MusicLife iOS and Android UPnP app Supports MQA Roon Ready

Specifications

Specification

Continuous power output, per channel
2 channels driven, 20Hz ‑ 20kHz, <0.02% THD	80W 8Ω 100W 4Ω
2 channels driven, 1kHz, 0.2% THD	85W 8Ω 120W 4Ω
7 channels driven, 1kHz, 0.2% THD	60W 8Ω 85W 4Ω
Residual noise & hum (A-wtd)	<0.15mV
Stereo Line Inputs
Maximum input	4.5V rms
Nominal sensitivity	1V, 2V, 4V (user adjustable)
Input impedance	47kΩ
Signal/noise ratio (A-wtd ref 100W)	100dB (normal) 110dB (stereo direct)
Frequency response	20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level	1V RMS (max. 5V RMS)
Output impedance	560Ω
THD+N (20Hz—20kHz)	–100dB
Headphone Output
Maximum output level into 32Ω	5Vrms
Output impedance	<100Ω
General
Mains voltage	220-240V 50-60Hz
Power Consumption	1500W PEAK (Thermal dissipation approx 5200BTU/Hour) 90W Idle (Thermal dissipation approx 340BTU/Hour) <0.5W Standby
Dimensions (Including speaker terminals and feet)	433mm Width 425mm Depth 171mm Height
Weight	16.5kg
Supplied Accessories	Power cable Remote Control with 2x AAA batteries Quick Start Guide (full manual online) DAB+/FM Antenna 3x Wi-Fi/Bluetooth Antennas Calibration Microphone USB Cable
