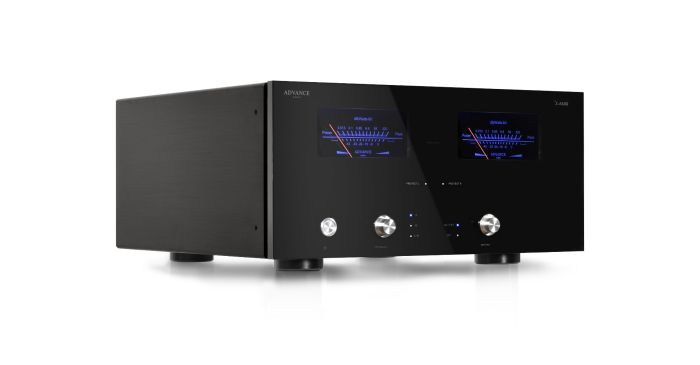

The X-A600 stereo power block is the new stereo power amplifier from Advance Paris.
The linear type power supply is based on a 700VA toroidal transformer and a set of 6 capacitors for a total of 60000μF. Combined with "very high current" power transistors (NJW0281G -NJW0302G), we guarantee dynamic sound even under heavy load. .
The X-A600 delivers a power of 200 W per channel in class AB under 8Ω. A "High BIAS" switch located at the rear of the device allows the X-A600 to deliver the first Watts in sliding class A. Beyond this power, switching to class AB takes place automatically.
The X-A600 benefits from a chassis with significant rigidity thanks to its mechanical design. Each circuit is separated from the others by a compartmentalized construction ensuring effective shielding. The separate power block is an essential element of any advanced audio system. Combined with the X-P700 pre-amplifier, you can build a high-quality audiophile package capable of delicately driving all the loudspeakers while exercising absolute control of the bass drivers.
Equipped with RCA and XLR sockets, the A-X600 can be used in High-Fidelity or Home-Cinema. For more discretion during your session, you can turn off the VU meters.
|
Output power 8Ω 2 x 200W RMS Output power 4Ω 2 x 300W RMS Frequency response 10 Hz – 80 kHz Distortion Inf. At 0,007% Signal to noise ratio 113 dB Crosstalk 108 dB AC input compatibility 115V / 230V Standby consumption Inf. At 0,5W consumption max. 575 W Transformer power 700 VA Transformer type Toroidal Starter LINE level on RCA and XLR socket Input Selection (RCA / XLR) Rear panel selector Outings Bare cable, Banana plugs, Forks High-Bias adjustment Yes VU-meter brightness adjustment Yes (ON / OFF / Low / Medium / High) Remote control No Trigger socket 2 (IN/OUT) 12V Dimensions (H x W x D) 210 mm x 431mm x 464 mm Net weight 11.5 kg. Gross weight 14 kg. VU-Meter Yes |
