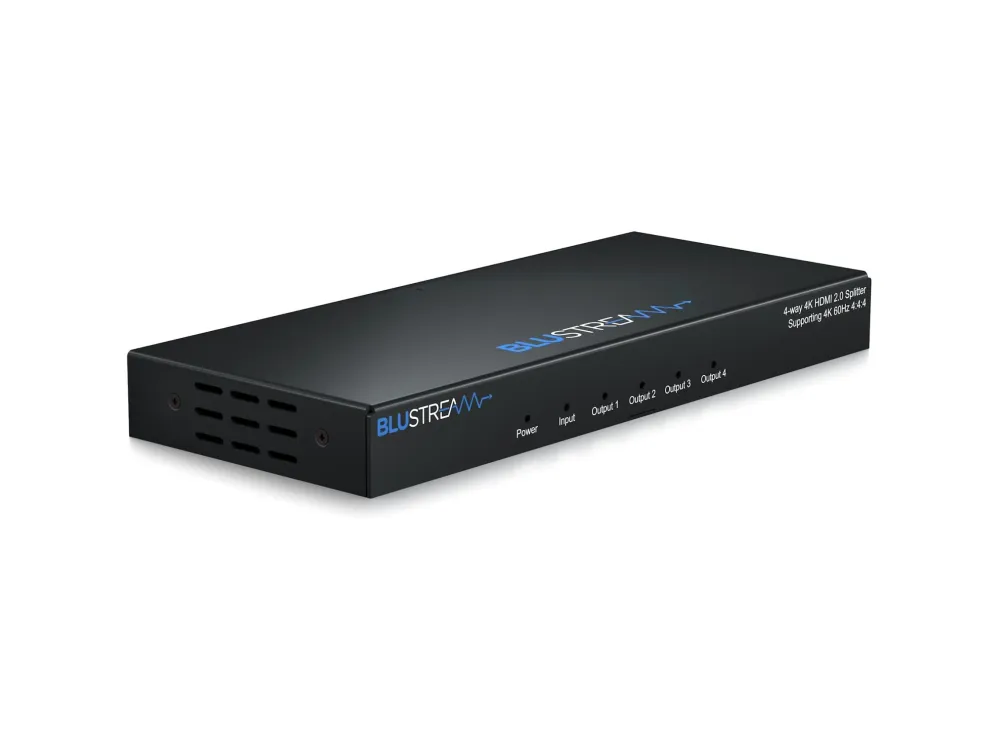

Blustream SP14AB-V2 4 Way HDMI Splitter

4-Way 4K HDMI 2.0 HDCP 2.2 Splitter with Audio Breakout and EDID Management

$419.00

4-Way 4K HDMI 2.0 HDCP 2.2 Splitter with Audio Breakout and EDID Management.

Our SP14AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to 4 simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Features
  • Features 1 x HDMI input that is replicated to 4 x HDMI outputs

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports up to 4K UHD 60Hz 4:4:4

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

  • Advanced EDID management

  • HDCP 2.2 support

Box Contents

1 x SP14AB-V2
1 x 5V/2A DC Power Supply
1 x Quick Reference Guide

Specification
  • Video Input Connectors: 1 x HDMI Type A

  • Video Output Connectors: 4 x HDMI Type A

  • EDID: 4-pin DIP switch

  • Audio Output Connectors: 1 x RCA (S/PDIF), 1 x Analogue audio L/R (3.5mm stereo Jack)

  • Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet

  • Shipping Weight: 0.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/2A DC
