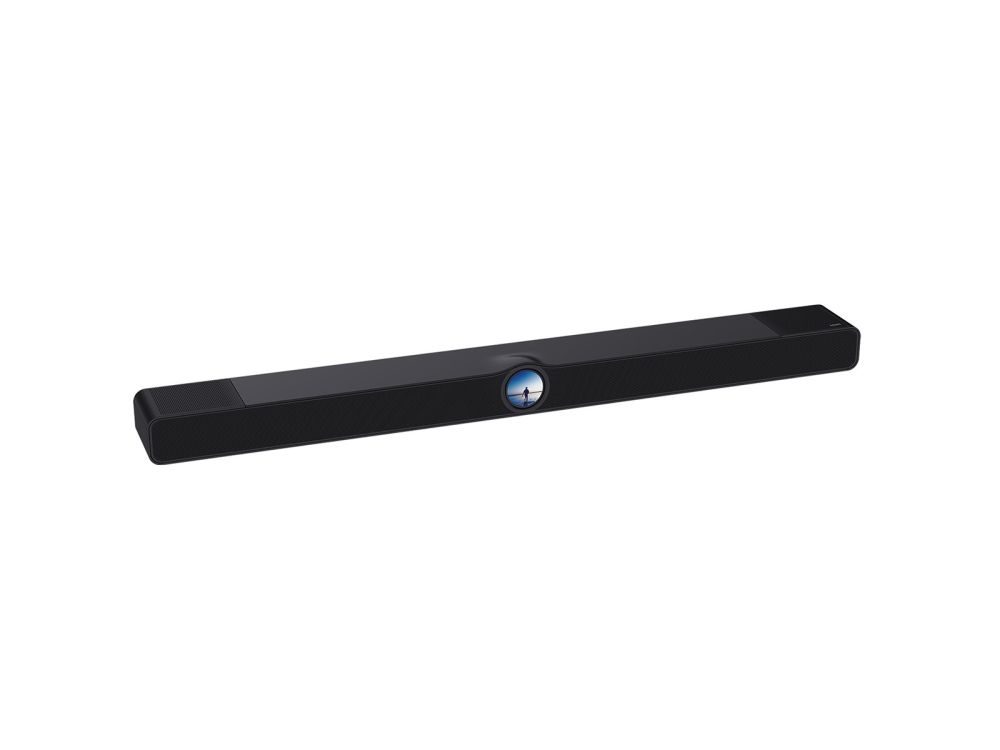

WIIM Bar Dolby Atmos Soundbar

Elevate your living room with audiophile-grade 3.0.2 Dolby Atmos® and DTS:X spatial audio. Manage playback, adjust EQ, and view stunning album art directly from a vibrant 2.1” touchscreen.

$769.00

Brand

Wiim

DESCRIPTION

Bar

See the Sound. Build the Theater.

Meet WiiM Bar

Display-first Dolby Atmos. Expandable to 5.1.2.

Elevate your living room with audiophile-grade 3.0.2 Dolby Atmos® and DTS:X spatial audio. Manage playback, adjust EQ, and view stunning album art directly from a vibrant 2.1” touchscreen. Ready for more? Wirelessly pair with compatible WiiM devices to seamlessly expand this perfect foundation into your ultimate 5.1.2 home theater.

One Bar for Every Way You Listen

Movie night. Morning playlists. Game day. Late-night TV. WiiM Bar fits every moment.

Start a movie through HDMI eARC and feel sound rise above the screen. Switch to music and see album art glow from the soundbar. Group with other WiiM devices for synchronized whole-home listening, or build out your living room with wireless surrounds and subwoofer support when you’re ready.

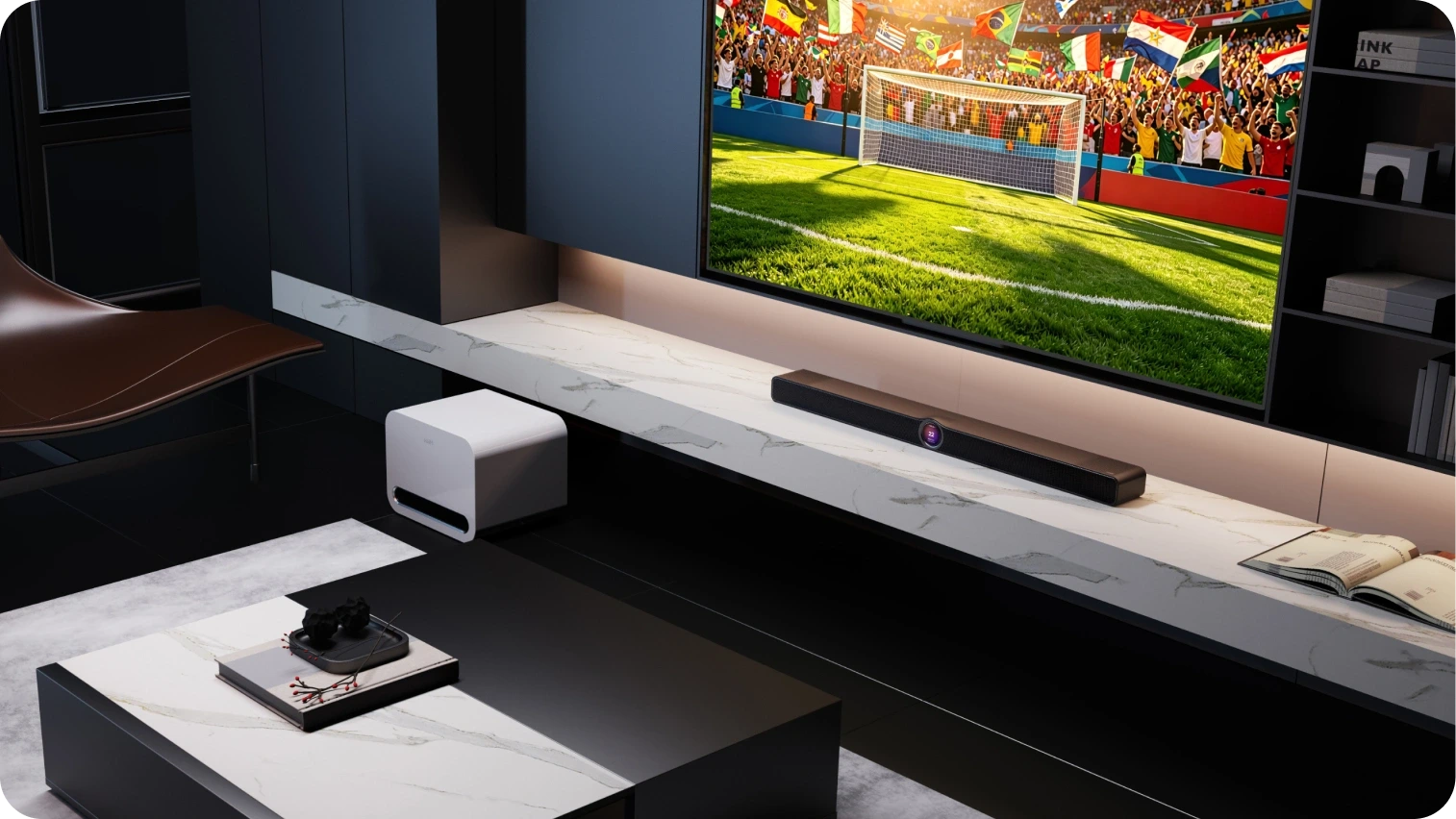

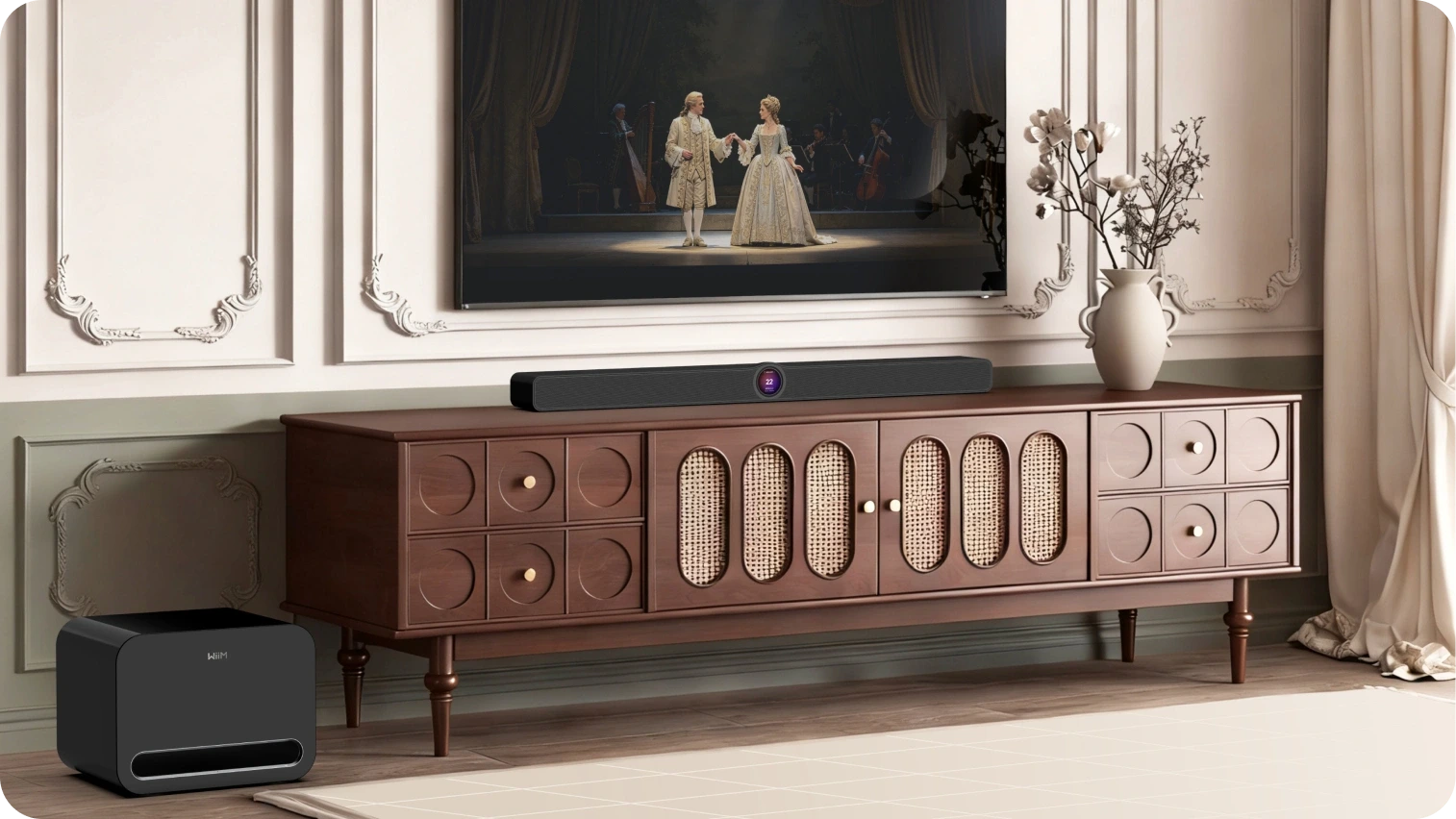

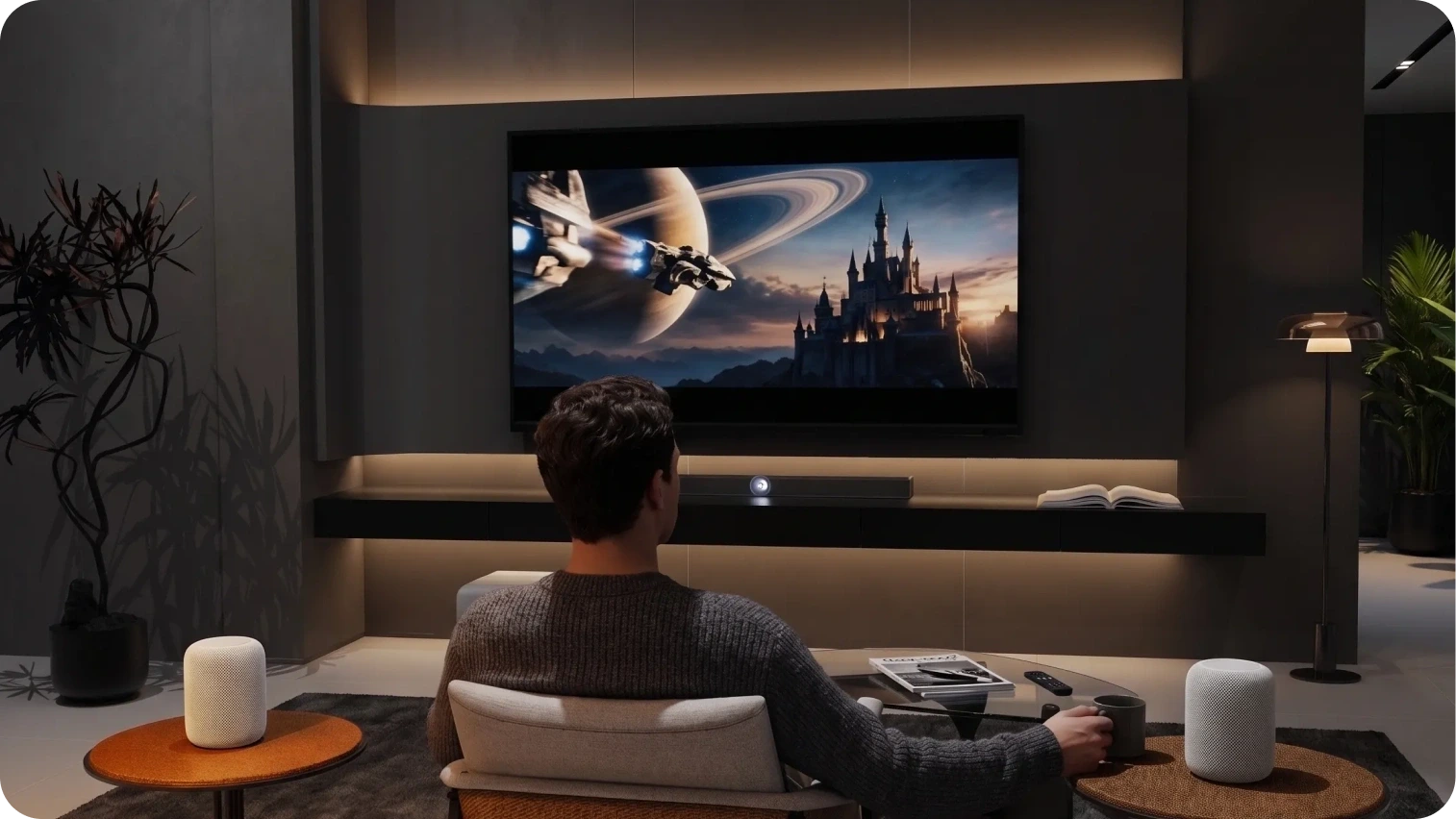

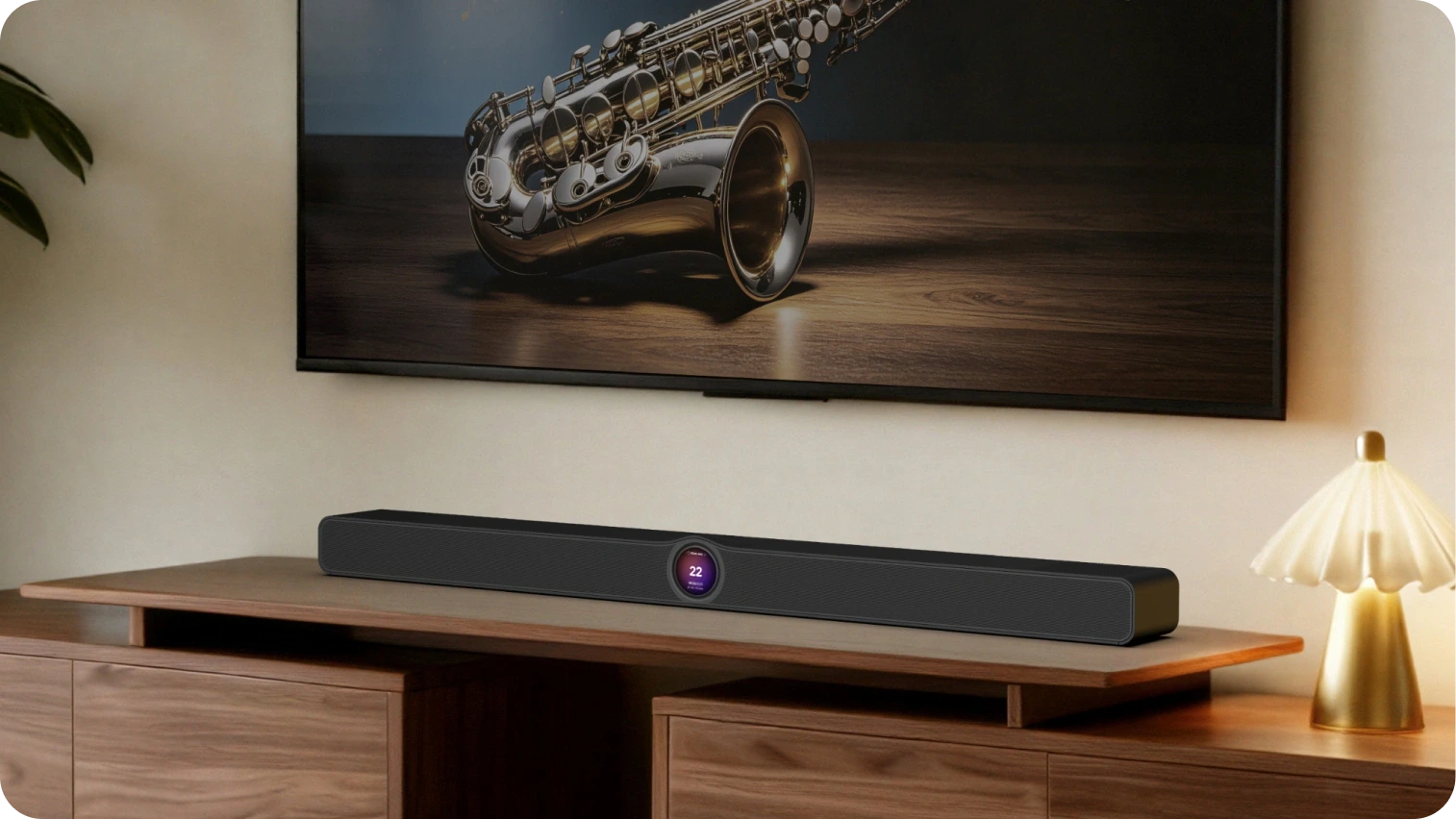

Sound That Adapts to Real Rooms and Real Life

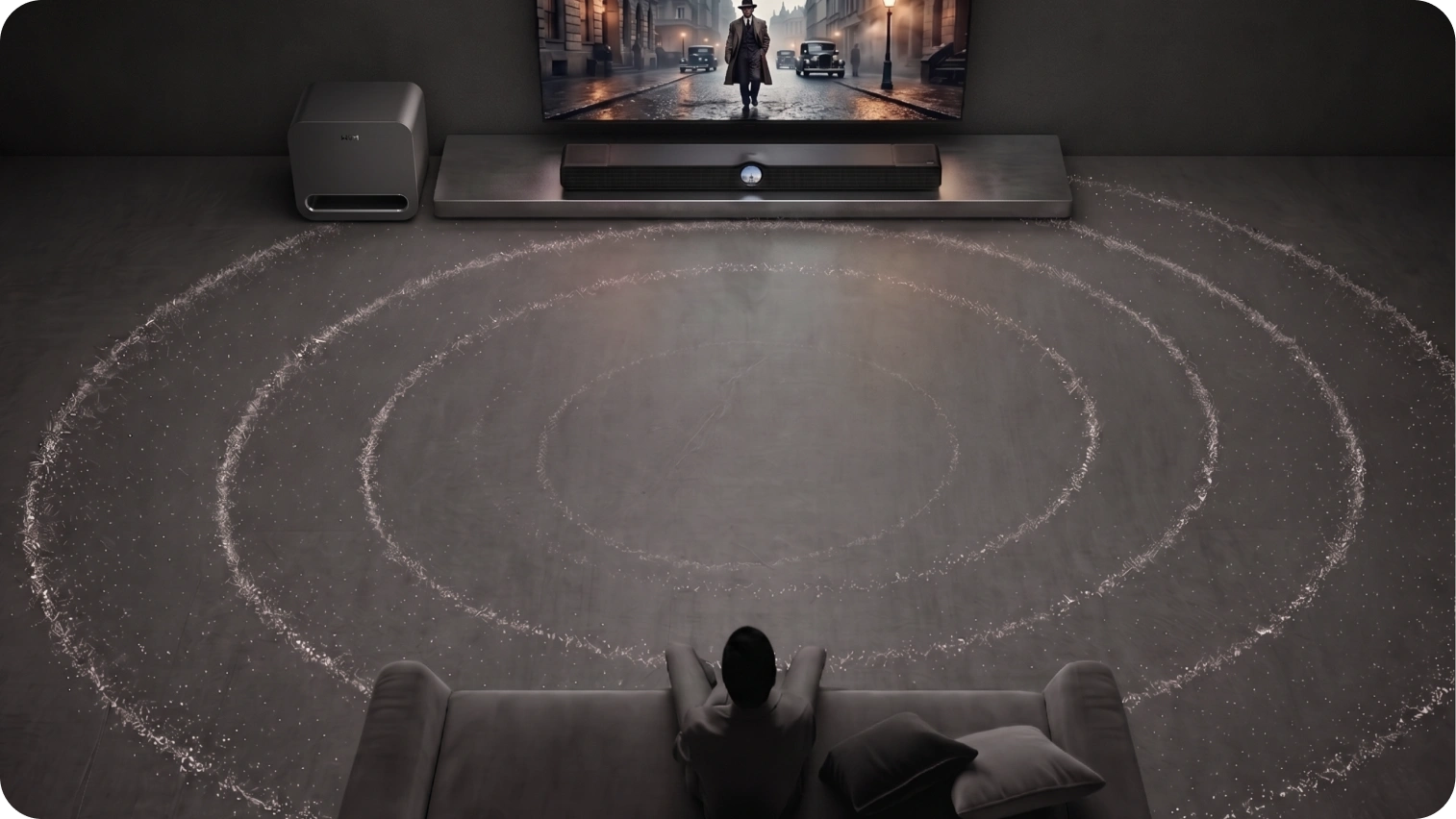

RoomFit™ auto-correction helps tailor playback to your room layout and speaker placement. Clear Voice and AI Dialog Enhancement help bring speech forward during busy scenes, while Night Mode helps reduce dramatic volume swings for lower-volume listening.

One tap in the WiiM Home App analyzes your room using the phone's mics, then optimizes response for balanced, fatigue‑free sound—no trial‑and‑error or extra gear.

Night Mode Big sound, low volume. Enjoy clear dialogue and controlled dynamics for late-night viewing.

Voice Mode Never miss a line. Dialogue stays crisp, focused, and easy to follow.

Movie Mode Feel the scene. Expand the soundstage with cinematic impact and immersive height effects.

Hear more in every track. Enjoy balanced, detailed sound with a wider, more natural stage.

Your music.Your way.

Total freedom for your listening experience. Stream natively via Spotify and

Tidal Connect, or dive into the WiiMHome App to personalize your sound,

sync multi-room audio, and browse all your services in one elegant plac

Take full control with the WiiM Bar Voice Remote

WiiM Bar Voice Remote crafted with a sleek body, rechargeable battery, and intuitive Push-to-Talk Alexa—plus smart presets and dedicated playback buttons for a seamless, intuitive experience.

Built for Modern Home Theater

Connect through HDMI eARC and enjoy support for LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, and DTS:X. Stream over Wi‑Fi 6E
or Ethernet, connect through Bluetooth 5.4, or use optical, line-in, USB Audio In/Out, and USB Host for flexible playback.

Streaming Ecosystem

The Freedom of WiiM Streaming

Stream from the WiiM Home App or connect through Google Cast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, and Roon.

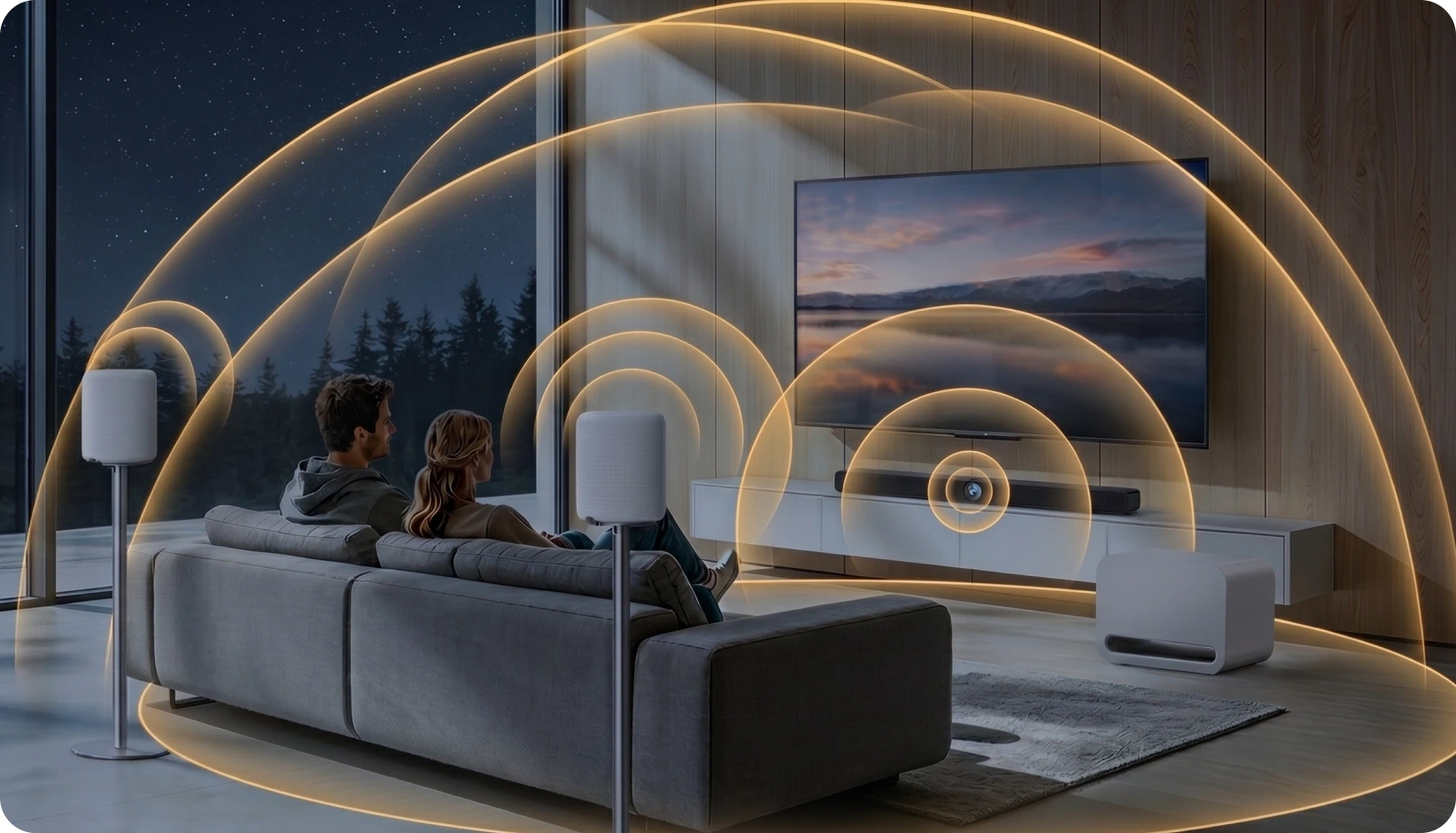

Expandable WiiM Home Theater

Start with the bar. Build the theater.

Experience cinematic 3.0.2 Dolby Atmos® and DTS:X® right out of the box. When you're ready, wirelessly add compatible WiiM surrounds and a subwoofer to build a fully immersive 5.1.2 theater at your own pace—no messy cables required.

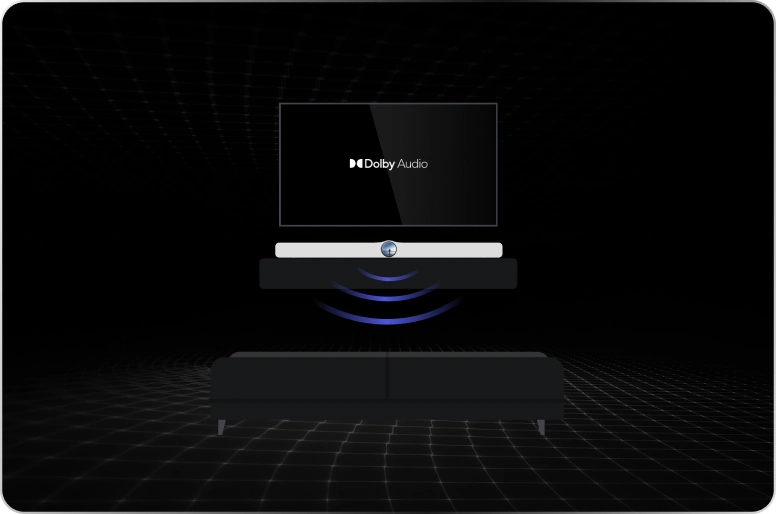

Step 01

3.0.2 Soundbar

Immerse yourself in cinematic Dolby Atmos® and DTS:X® sound from a single, elegant soundbar.

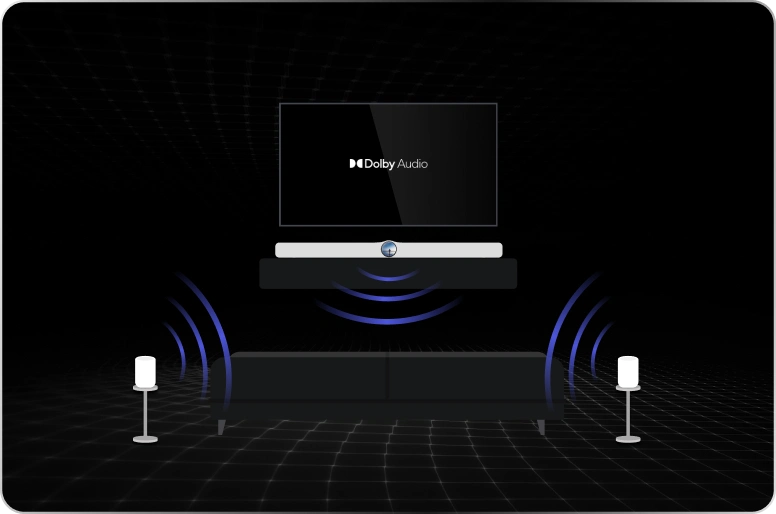

Step 02

Wireless Surround Expansion

Place compatible WiiM speakers behind your sofa to pull the action off the screen and bring the scene right around you.

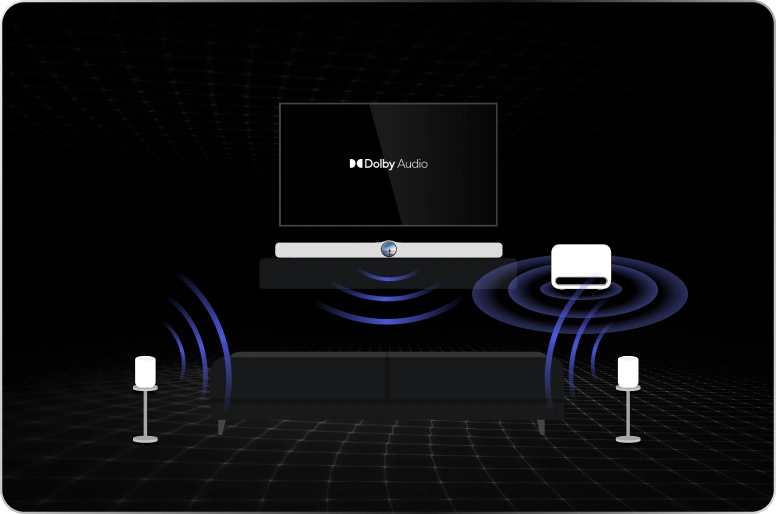

Step 03

Up to 5.1.2 System

Add subwoofer support to deliver deep, chest-thumping low-end energy for your movies, games, and music.

Specifications

Specification

Audio System	Acoustic system : 8-driver acoustic system with 4 passive radiators Front mid-woofers : 0.12 × 4.33 × 2.05 inches ( 3 x 110 × 52 mm) mid-woofers Front tweeters : 0.12 × 2.05 × 2.05 inches (3 x 52 × 52 mm) tweeters Top height drivers : 0.08 × 2.05 × 2.05 inches (2 x 52 × 52 mm) full-range drivers Passive radiators : 0.16 × 4.53 × 1.97 inches (4 x 115 × 50 mm) passive radiators, front × 2 and rear × 2 Max system power : 135 W Native channel layout : 3.0.2 Height effects : Top-firing height channels
Audio Formats & Home Theater	Supported audio formats : LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, DTS:X Dolby Atmos support : Yes, via supported content and compatible input setup DTS:X support : Yes HDMI home theater connection : HDMI eARC Native configuration : 3.0.2 Dolby Atmos and DTS:X soundbar Expandable configuration : Up to 5.1.2 with compatible WiiM surround and subwoofer devices Surround expansion : Wireless surround support with compatible WiiM devices Subwoofer expansion : Wireless subwoofer support with compatible WiiM devices
Smart Audio & EQ	Room correction : RoomFit™ auto-correction Dialogue enhancement : Clear Voice and AI Dialog Enhancement Night listening : Night Mode Sound modes : Movie Mode, Music Mode, Voice Enhance Mode, Night Mode Preset EQ : 24 preset EQ settings Graphic EQ : 10-band Graphic EQ Parametric EQ : 10-band Parametric EQ, where supported in the WiiM Home App Per-source EQ : Supported via WiiM Home App, where available App customization : Sound modes, EQ, RoomFit™, input settings, grouping, and device preferences
Display & On-Device Controls	Display : Glass-covered 2.1-inch Hi-Res full-color round LCD touch screen Display type : Round touch display Display content : Album art, track information, time, EQ, Smart Presets, Recently Played, clock faces, dynamic wallpapers, and album art standby Playback controls : Play, pause, skip, and like Source controls : Source selection from the display EQ controls : Quick EQ access on the device; deeper EQ control in the WiiM Home App Smart Presets : One-tap access to favorite preset routines and content Recently Played : Access to recently played playlists, stations, and shows Personalization : Multiple clock faces, dynamic wallpapers, and album art standby Proximity-lit capacitive buttons : Volume +, Volume –, Play/Pause, Source Switc Status LED : RGB+W status LED

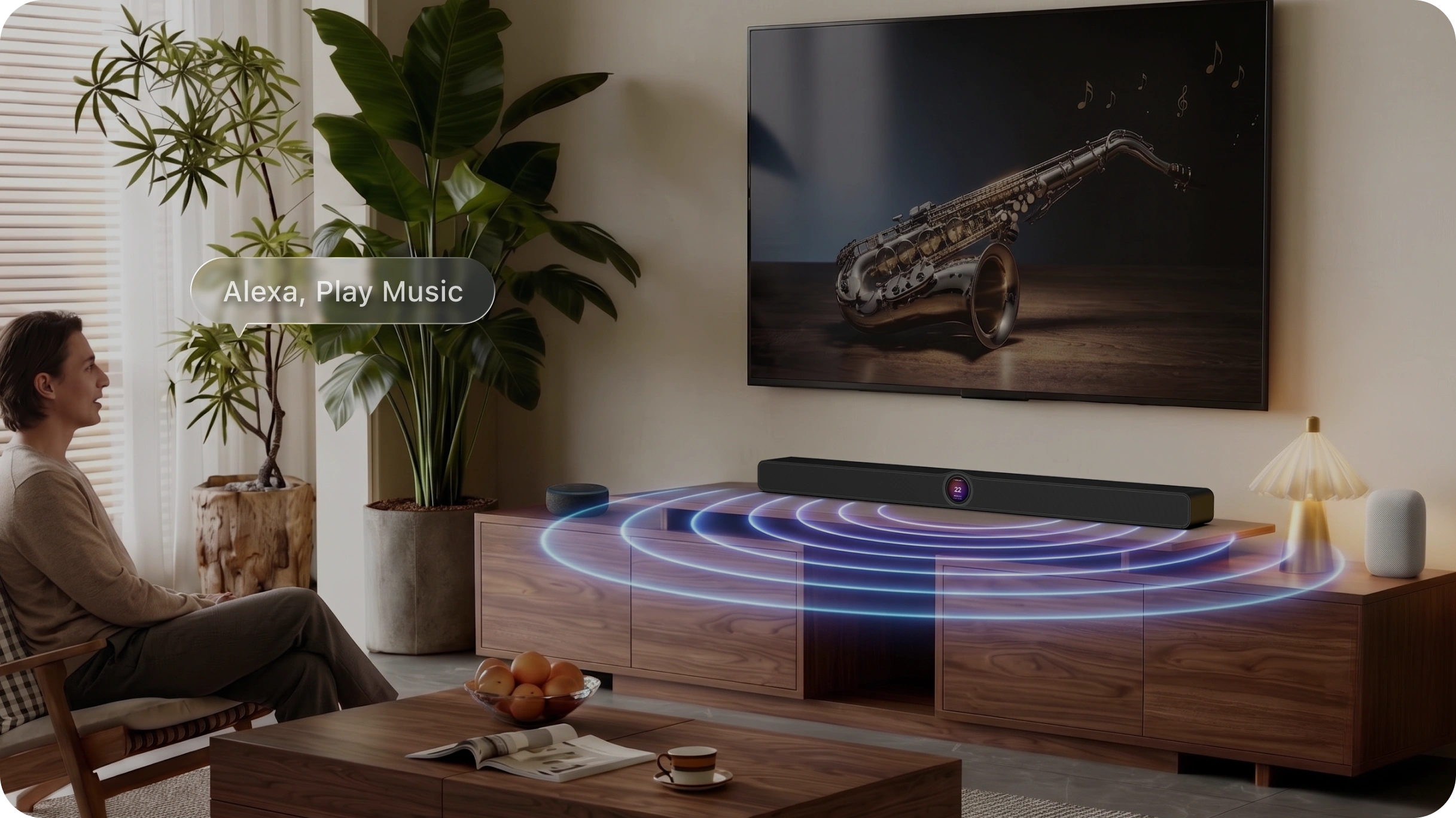

App, Voice & Remote Control	App control : WiiM Home App Voice control : Alexa and Google Assistant Remote : WiiM Bar Remote Remote controls : Playback, volume, source switching, sound modes, mute/unmute, standby, and voice control where available On-device control : 2.1-inch round touch display and proximity-lit capacitive buttons Setup control : WiiM Home App via WiFi or Ethernet Ecosystem control : Manage streaming, grouping, EQ, presets, and compatible WiiM devices from the WiiM Home App
Inputs, Outputs & Connectivity	HDMI : HDMI eARC Optical : Optical In Analog input : Line In Ethernet : 10/100 Mbps Ethernet USB : USB Host for storage USB Audio Input or Output WiFi : WiFi 6E WiFi bands : 2.4 GHz, 5 GHz, and 6 GHz WiFi standard : 802.11 b/g/n/ax Bluetooth : Bluetooth 5.4 Bluetooth profiles : BLE, A2DP Rx/Tx, AVRCP, HID LE Audio : Supported via software update Bluetooth input : Stream from compatible phones, tablets, TVs, and laptops Bluetooth output : Output to compatible Bluetooth speakers, headphones, or earphones, where supported Wired network behavior : Ethernet available for a stable wired network connection
Streaming & Protocols	Streaming app : WiiM Home Ap In-app streaming : Stream 20+ music services through the WiiM Home App Casting and streaming protocols : Google Cast Audio / Chromecast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, Roon Example music services : Spotify, Amazon Music, YouTube Music, TIDAL, Qobuz, Deezer, TuneIn, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, KKBOX, Soundtrack Your Brand AirPlay 2 : Not supported Network playback : WiFi, Ethernet, DLNA/UPnP, and WiiM Home App Direct app control : Supported with compatible services such as Spotify Connect, TIDAL Connect, Qobuz Connect, and Google Cast Audio
Multi-Room & WiiM Ecosystem	WiiM multi-room audio : Group WiiM Bar with compatible WiiM devices for synchronized multi-room listening Compatible WiiM ecosystem : Designed to integrate with WiiM Amp, WiiM Ultra, WiiM Pro, WiiM Mini, and WiiM Edition speakers for multi-room music grouping Home theater expansion : Expand from 3.0.2 to up to 5.1.2 with compatible WiiM surround and subwoofer devices Surround setup : Use compatible WiiM devices as wireless surround channels Subwoofer setup : Add compatible WiiM subwoofer support for deeper bass Other multi-room options : Alexa multi-room and Google Cast multi-room, where supported Physical input multi-room : For Line In, Optical In, HDMI eARC, or Bluetooth as multi-room sources, use a WiiM-device group
USB Media Library	USB function : USB Host for storage Media library : Access a personal media library from connected USB storage Media server : Can act as a media server for other WiiM and DLNA devices on the same network Supported storage examples : USB drive or compatible external storage Supported file systems : FAT32, NTFS, EXT4, where supported Playback control : Browse and control USB media through the WiiM Home App
Physical Specs	Dimensions : 41.7 × 4.1 × 3.1 inches (1060 × 105 × 80 mm) Height without foot : 3.1 inches (80 mm Weight : 11.02 lb / 5 kg Placement : TV console or wall mount Wall mounting : Wall brackets included Display location : Front-facing 2.1-inch round touch display On-device controls : Top-panel capacitive controls and front touch display Status light : RGB+W LED status indicator
Power	Power input : 100–240V AC Frequency : 50/60 Hz Max system power : 135 W Power cable : Included
What's Included	WiiM Bar WiiM Bar Remote User Guide Power Cable HDMI Cable Optical Cable Wall brackets × 2 with screws
