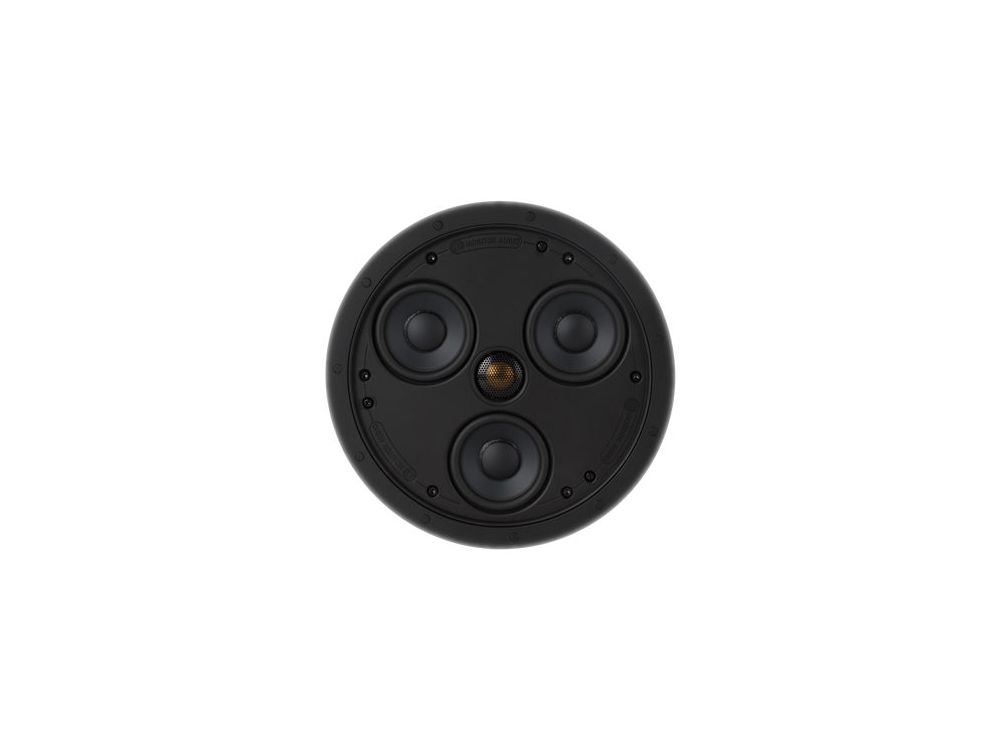

MONITOR AUDIO CSS230 Super Slim Ceiling Speaker (Each)
Move your mouse over image or click to enlarge
MONITOR AUDIO CSS230 Super Slim Ceiling Speaker (Each) MONITOR AUDIO CSS230 Super Slim Ceiling Speaker (Each) MONITOR AUDIO CSS230 Super Slim Ceiling Speaker (Each) MONITOR AUDIO CSS230 Super Slim Ceiling Speaker (Each)

Ask a Question







Ask a Question


ELAC Navis ARB51 Active Bookshelf Speakers

ELAC Navis ARB51 Active Bookshelf Speakers

WHARFEDALE Denton 85th Anniversary Bookshelf Speakers

WHARFEDALE Denton 85th Anniversary Bookshelf Speakers

MONITOR AUDIO CSS230 Super Slim Ceiling Speaker (Each)

Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

$449.00
SKU
moncss230

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.

Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.

In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.

Frequency Response (-6dB)

  • 100Hz - 30kHz Sealed
  • 85Hz - 30kHz Open Back

Nominal Impedance

  • 8 Ohms

Sensitivity (1W@1M)

  • 86dB

Maximum SPL

  • 103.8dBA

Power Handling (RMS)

  • 40 Watts Full Range
  • 60 Watts with crossover set to100 Hz

Recommended Amplifier Requirements

  • 10-60W

Drive Units

  • 3x 3" C-CAM Cone Bass-Mid Drivers
  • 1x 19mm (3/4") C-CAM Gold Dome Tweeter

Crossover Recommendation

  • 100Hz at a minimum of 12dB/Octave (24dB/Octave optimum)

Connection

  • Gold Plated Sprung Push Terminals (for bare wire connections up to 4mm x2)

Overall Diameter (Including Grille)

  • 250mm

Overall Depth (Including Grille)

  • 54mm

Cut-Out Hole Diameter

  • 211mm

Mounting Depth

  • 50mm

Fixing Type

  • 3 Position Tri-Grip dog leg fixings

Construction Material

  • ABS (UL94 rated, RoHS2 Compliant)
  • Painted Steel Grille

Weight

  • 2.88kg
