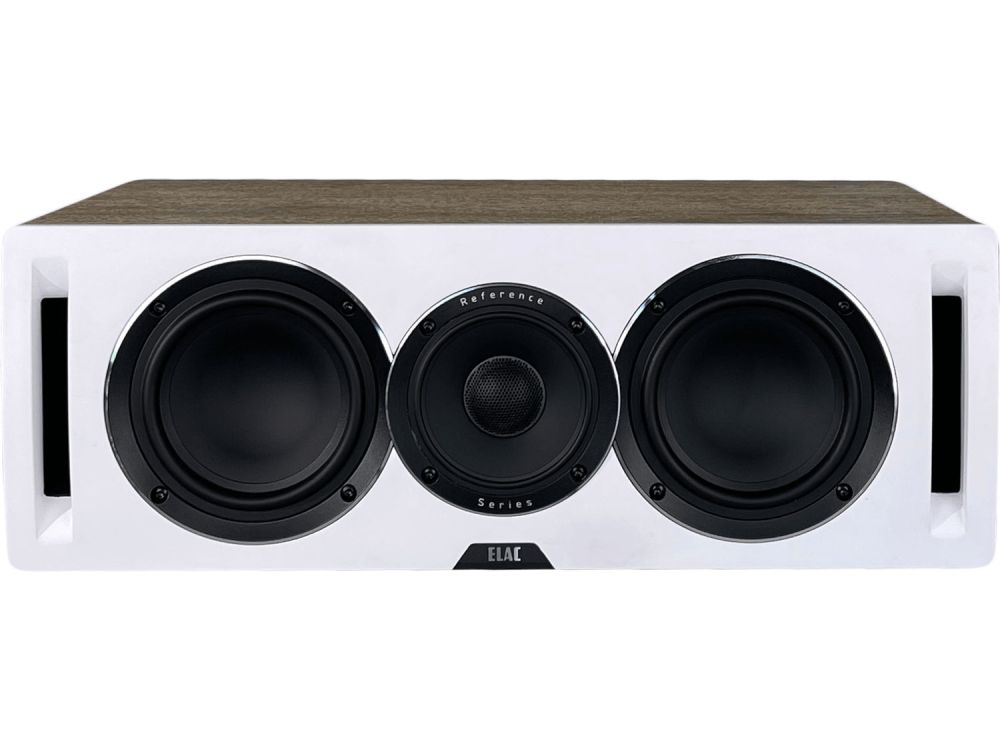

ELAC Unif Reference UCR52 Centre Speaker

Say hello to the Uni-Fi Reference.

Building on the success and performance of the Uni-Fi 2.0 series, Uni-Fi Reference is not merely a name, but the defining characteristic of a product that has been refined for maximum performance and style.

$1,095.00

Improved Aesthetics

Reference Aesthetics

Improved 3-Way Design

Leap Into High End Audio

For some, looking good is as important as sounding good.

The Uni-Fi Reference has been redesigned for maximum performance and style, so it can look as good as it sounds.

Would you ask two people to do a three person job?

Most speakers in this price range have one driver tuned for highs and another tuned for both mids and lows. The Uni-Fi Reference has three - one for each frequency range.

With an entirely new midrange driver and newly designed cast chassis, the Uni-Fi Reference is truly a step into high end audio.

Improved Crossover

Listen to a Perfect Harmony

Pure Bliss. No Rattling.

Full Perimeter Bracing

A conductor is to an orchestra, what a crossover is to a 3-way speaker - a guide to make many sound like one.

Our improved crossover blends the Uni-Fi Reference's three unique drivers into one harmonious sound.

Enjoy the luxury of a 3-way speaker at an unmatched price.

A supercar isn't just measured by how much power it produces - it's measured by how well it handles the power.

The all new Uni-Fi Reference adds full perimeter bracing, allowing you to push it harder with significantly reduced cabinet vibration and coloration.

Improved Bass Dynamics

Dual Flared Slot Vents

Improved Drivers

Aluminum Drivers with Cast Chassis

A dedicated woofer optimized with all our newly developed dual flared slot vents.

Utilizing both internal and external flares, the reference series slot vents allow for lower noise and higher bass output for improved low frequency dynamics.

Drastically improving low-end reproduction, our newly developed bass driver delivers improved linearity and the best low frequency response out of any of our previous Uni-Fi speakers.

With a single piece compound curvature aluminum cone and a large rear vented magnet, the new 6.5" woofer with cast chassis will not disappoint.

Specification

Speaker Type

  • 3-Way Bass Reflex

Frequency Response

  • 47Hz—35000Hz

Nominal Impedance

  • 6 Ohms

Sensitivity

  • 85db

Crossover Frequency

  • 240Hz
  • 1800Hz

Maximum Power Input

  • 140 Watts

Tweeter

  • 1" Soft Dome

Midrange

  • 4" Aluminum

Woofers

  • 2x 5.25" Aluminum

Cabinet

  • CARB2 Rated MDF

Cabinet Finish

  • Satin White with Oak Sides
  • Satin Black with Walnut Sides

Port

  • Dual Flared Slots

Binding Posts

  • Bi-Wire 5 Way

Dimensions

  • 527mm Width
  • 185mm Height
  • 334mm Depth

Net Weight

  • 13.2kg each
