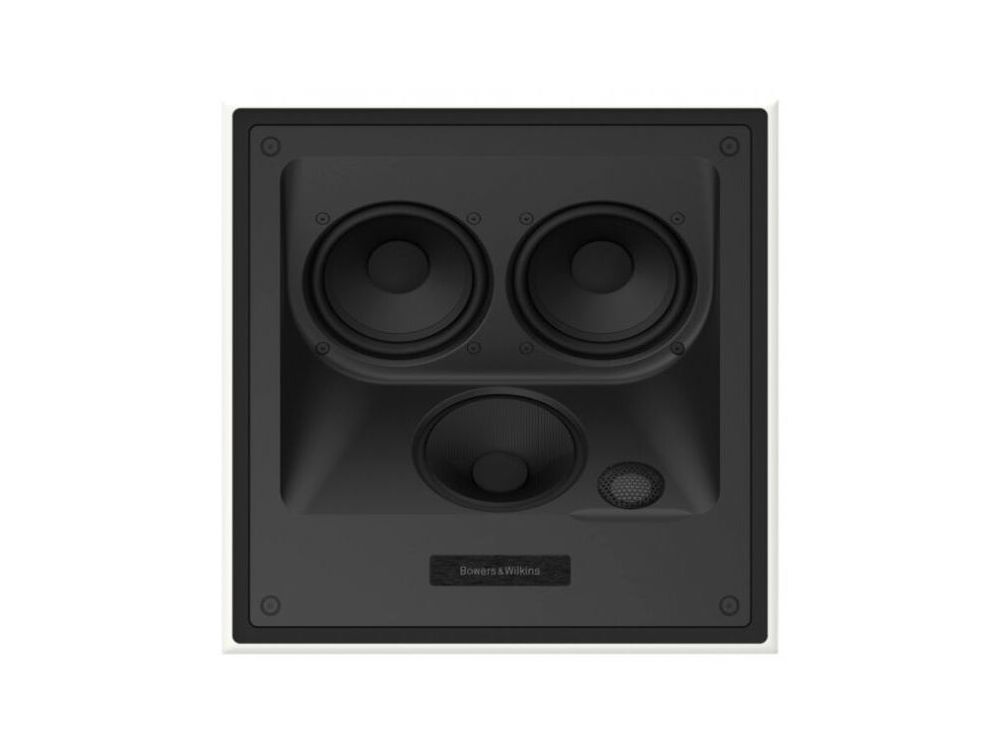

BOWERS & WILKINS CCM7.3 S2 Ceiling Speaker (Each)

The CCM7.3 S2 is a high-performance in-ceiling speaker for oustanding performance in both theatre and stereo applications.

$1,999.00

SKU

BOWERS & WILKINS CCM7.3S2 Ceiling Speakers

The CCM7.3 S2 is a high-performance in-ceiling speaker for oustanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1") Carbon Dome tweeter, a 100mm(4") FST Continuum cone midrange and 2 x 130mm(5") Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.

Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
White backbox and grille

Description

3-way in-ceiling system

Drive Units

1x ø25mm (1") Carbon Dome high-frequency

1x ø100mm (4") Continuum cone FST midrange

2x ø130mm (5") Aerofoil profile bass

Frequency Range (-6dB)

-6dB at 52Hz – 33kHz

Frequency Response -3dB

55Hz - 28kHz ±3dB

Recommended Amp Power

25 – 200W into 8Ω

Sensitivity SPL (2.83V, 1m)

90 dB

Impedance Nominal (min)

6Ω (3.5Ω)

Frame height

355mm (14in)

Frame width

355mm (14in)

Depth

194.5mm (7.66in)

Cut-out height

332mm (13.1in)

Cut-out width

332mm (13.1in)

CALL US NOW

Visit Our Store

ELAC Debut Reference DCR52 Centre Speaker

MONITOR AUDIO SB2 Passive Soundbar

BOWERS & WILKINS CCM7.3 S2 Ceiling Speaker (Each)

Description

Drive Units

Frequency Range (-6dB)

Frequency Response -3dB

Recommended Amp Power

Sensitivity SPL (2.83V, 1m)

Impedance Nominal (min)

Frame height

Frame width

Depth

Cut-out height

Cut-out width

More from this brand

Description	3-way in-ceiling system
Drive Units	1x ø25mm (1") Carbon Dome high-frequency 1x ø100mm (4") Continuum cone FST midrange 2x ø130mm (5") Aerofoil profile bass
Frequency Range (-6dB)	-6dB at 52Hz – 33kHz
Frequency Response -3dB	55Hz - 28kHz ±3dB
Recommended Amp Power	25 – 200W into 8Ω
Sensitivity SPL (2.83V, 1m)	90 dB
Impedance Nominal (min)	6Ω (3.5Ω)
Frame height	355mm (14in)
Frame width	355mm (14in)
Depth	194.5mm (7.66in)
Cut-out height	332mm (13.1in)
Cut-out width	332mm (13.1in)
