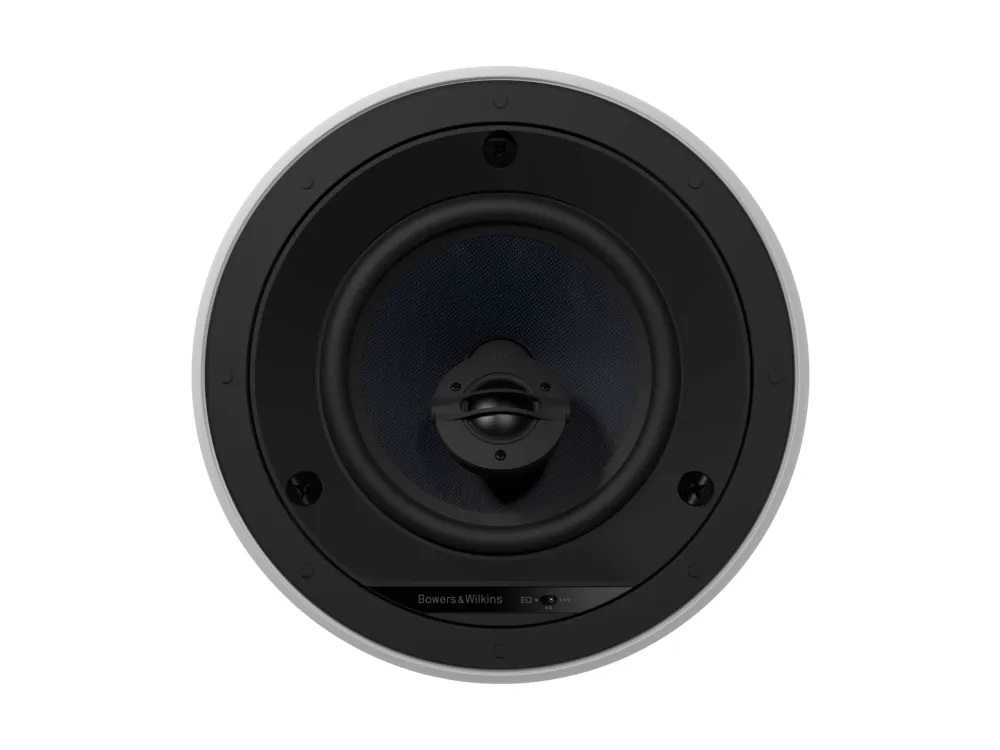

Bowers & Wilkins CCM662 Ceiling Speakers

Performance two-way in-ceiling speaker

The CCM662 delivers outstanding high-end sound from an in-ceiling speaker. Its 25mm tweeter and 150mm Aramid mid/bass driver make sound from your music and movies unforgettable.

$1,399.00

Warranty Period : 5 years

Sold as : One Pair

Warranty Period : 5 years

Sold as : One Pair

The CCM662 is a true high performance ceiling-mount speaker. The tweeter has a 25mm(1in) aluminium dome tweeter and its housing pivots for adjustable off-axis treble response. The die-cast chassis of the bass/midrange driver provides extra rigidity which results in a cleaner, faster bass and a three-position EQ switch offers a better off-axis response. With superior cross-over components along with gold plated terminals the CCM662 has an impressive maximum amp power of 150W. Its blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Specification
GENERAL SPECIFICATIONS
Product Type
  • In-Ceiling Speaker
System Type
  • 2-Way In-Ceiling System
Frequency Range
  • 45Hz - 50kHz (-6dB)
Sensitivity
  • 88dB SPL (2.83V, 1m)
Impedance
  • 8Ω (Nominal)
  • 4.5Ω (Minimum)
Tweeter Adjustment
  • Pivoting Housing for Off-Axis Adjustment
Equalisation
  • 3-Position EQ Switch
Bass/Midrange Chassis
  • Die-Cast
Mounting System
  • QuickDogs™
Finish
  • White
DRIVERS
Tweeter
  • 1 x 25mm Nautilus™ Swirl-Loaded Aluminium Dome Tweeter
Bass/Midrange Driver
  • 1 x 150mm Aramid Fibre Cone Bass/Midrange Driver
INSTALLATION SPECIFICATIONS
Frame Diameter
  • 240mm
Cut-Out Diameter
  • 202mm
Depth Behind Surface
  • 133mm
Protrusion
  • 4mm
Pre-Mount Kit
  • C6
Back Box
  • 6C
