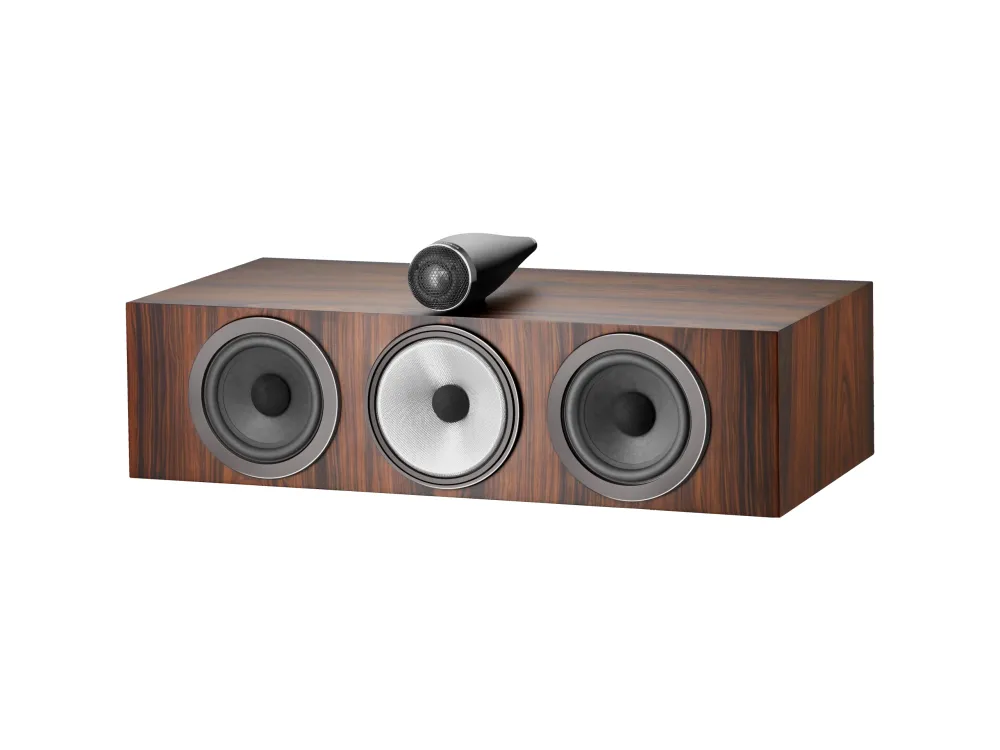

Bowers & Wilkins HTM71 S3 Centre Speaker

Our flagship centre-channel speaker features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, a 130mm (5in) Continuum Cone FST™ midrange driver – particularly important for clarity with dialogue – and twin Aerofoil™ Profile bass cones. It’s the perfect partner for the 705 S3, 703 S3 and 702 S3.



$3,199.00

Warranty Period : 5 years

Sold as : 1 Unit



HTM71 S3

Centre-channel speaker



Uncompromising vocal performance

The HTM71 S3 now features Tweeter-on-Top technology, ensuring perfect integration with similarly equipped 700 Series models in a surround sound system.

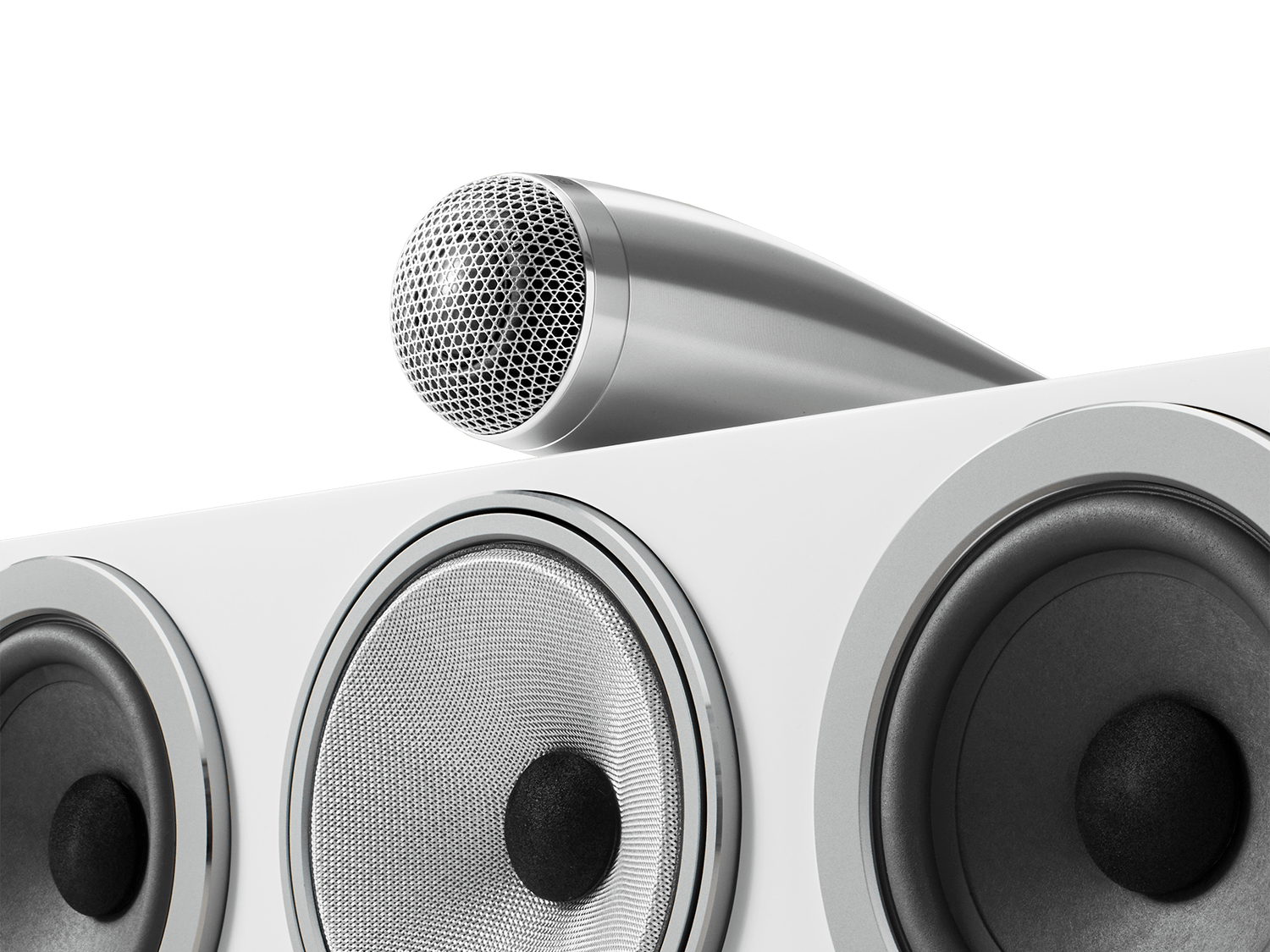

A house for high frequencies

The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

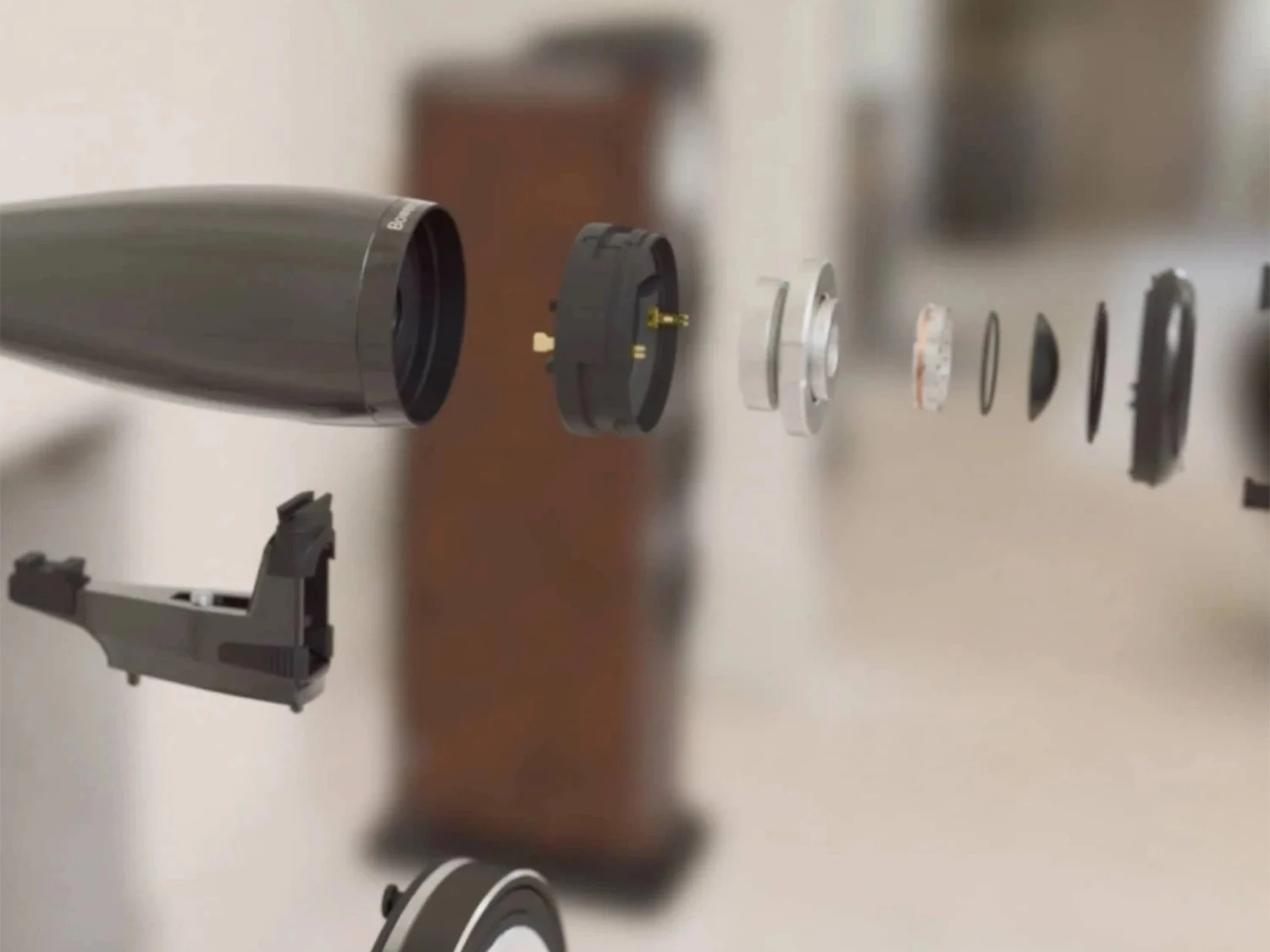

Sharper detail

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

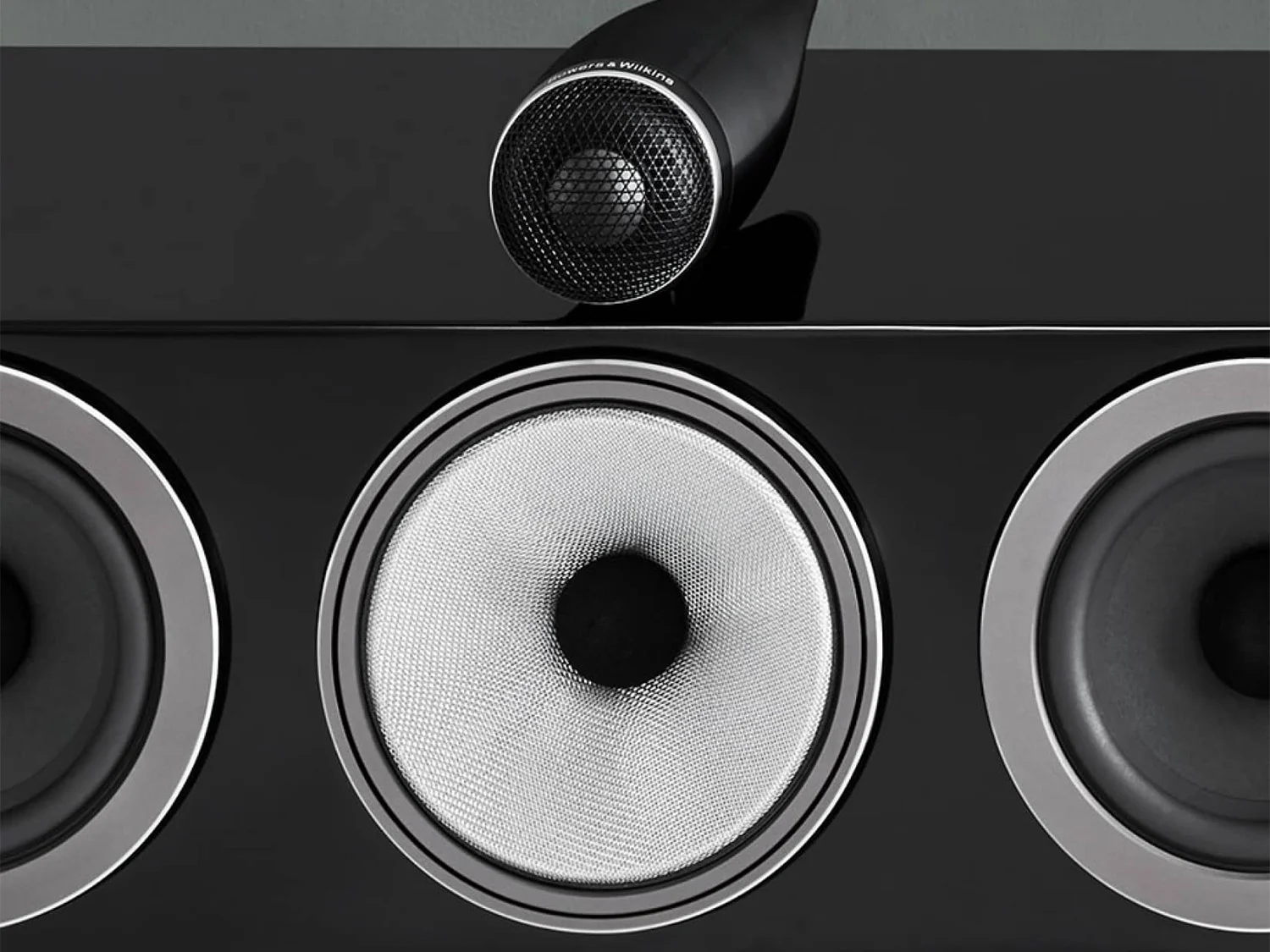

Truly amazing sound

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

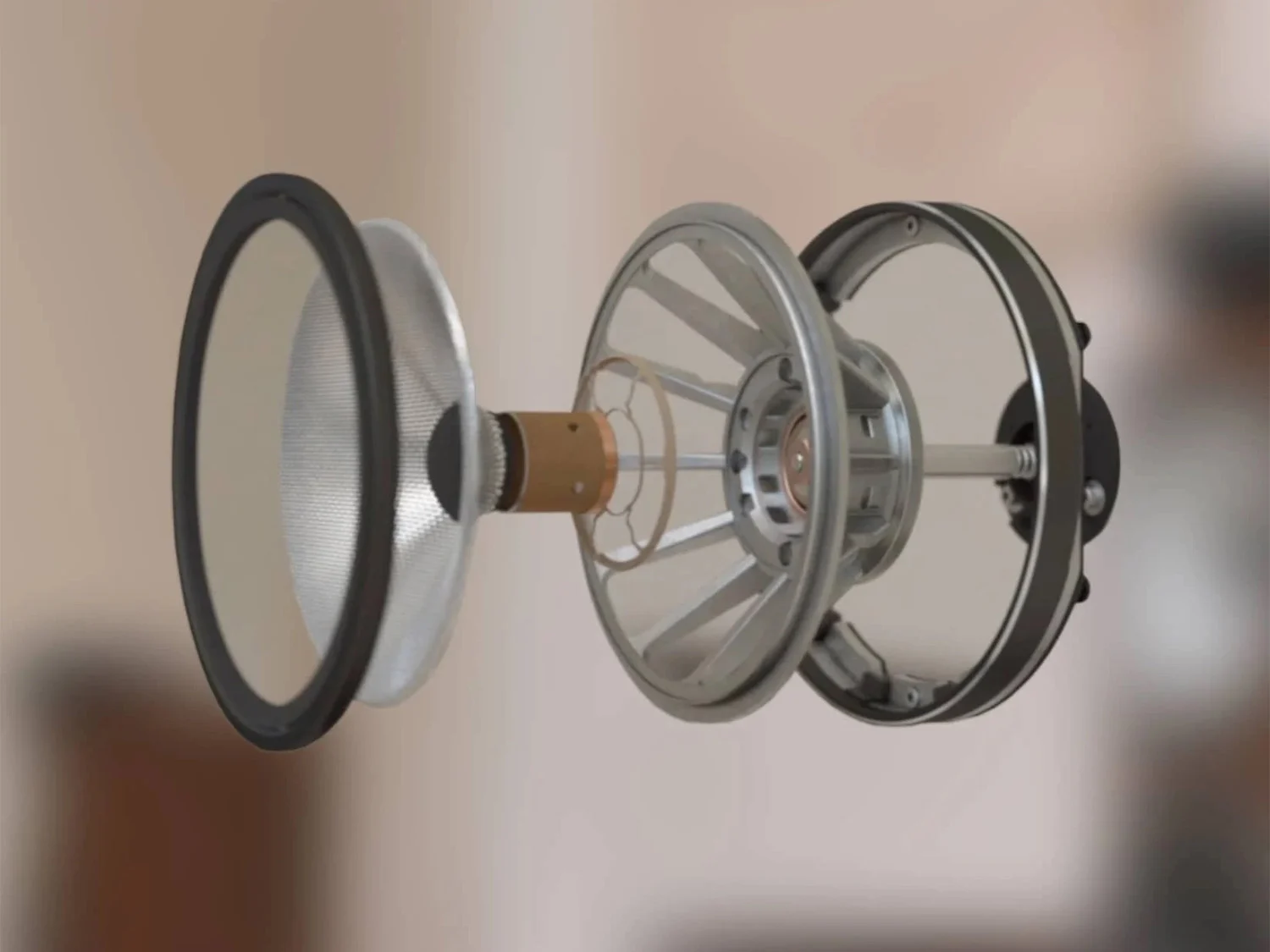

Clean and clear

Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.

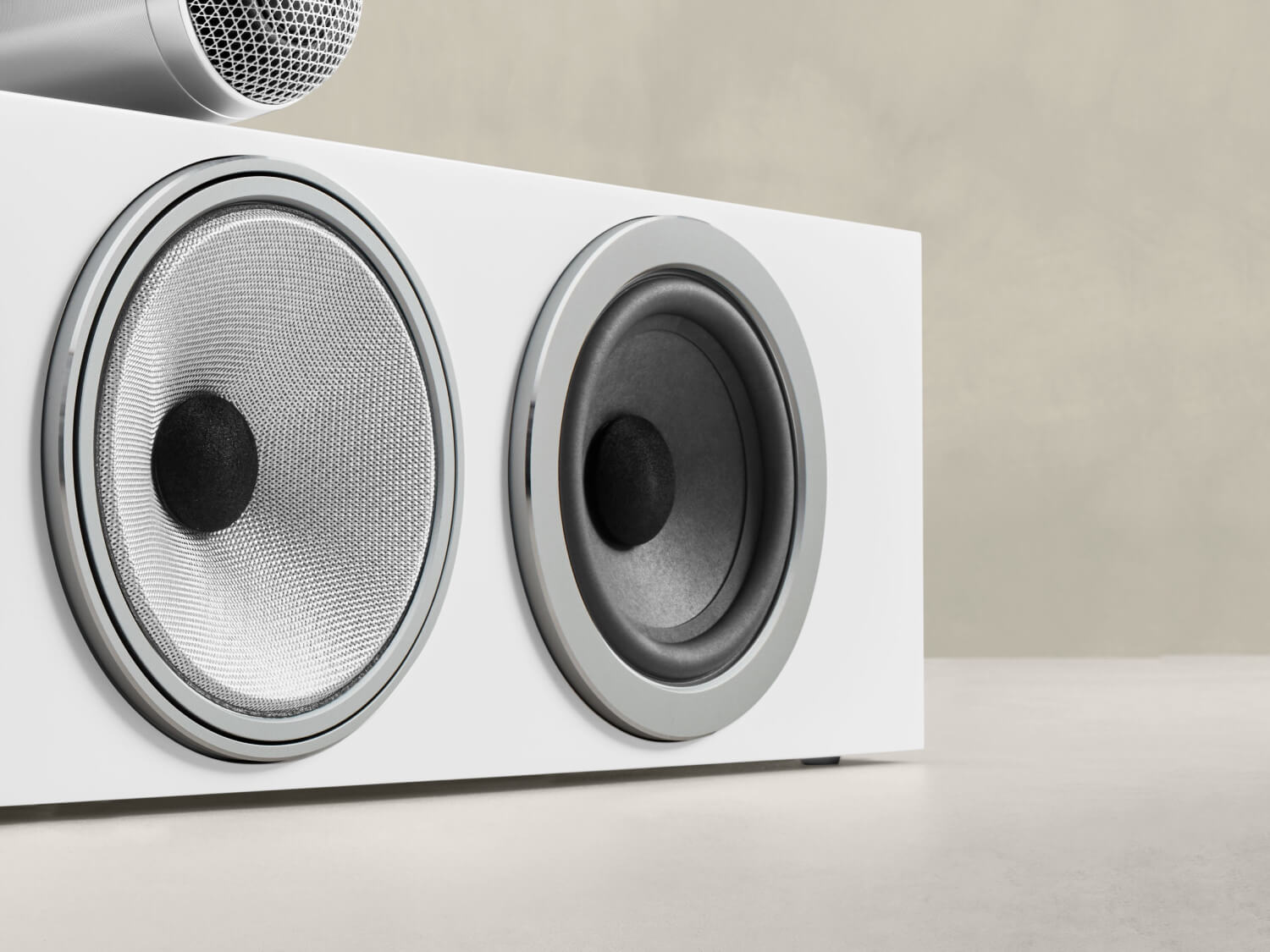

A triumph of science

Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.

Specification
GENERAL SPECIFICATIONS
Product Type
  • Centre-Channel Speaker
Enclosure Design
  • 3-way vented-box system
Technical Features
  • Decoupled Carbon Dome Tweeter
  • Solid Body Tweeter-on-Top
  • Continuum Cone FST Midrange
  • Aerofoil Profile Bass Cones
  • Flowport
Cabinet Finishes
  • Gloss Black
  • Satin White
  • Mocha
  • Rosenut
Grille Finishes
  • Black
  • Grey
    • Satin White cabinet only
DRIVERS
High-Frequency Driver
  • 1 x 25mm Decoupled Carbon Dome Tweeter
Midrange Driver
  • 1 x 130mm Continuum Cone FST Midrange Driver
Bass Drivers
  • 2 x 130mm Aerofoil Profile Bass Drivers
PERFORMANCE
Frequency Range
  • 45Hz - 33kHz
Frequency Response
  • 50Hz - 28kHz (±3dB from reference axis)
Sensitivity
  • 89dB SPL (2.83Vrms, 1m, on axis)
Harmonic Distortion
  • <1% (2nd and 3rd harmonics, 90dB, 1m on axis, 90Hz - 22kHz)
  • <0.5% (2nd and 3rd harmonics, 90dB, 1m on axis, 120Hz - 20kHz)
Impedance
  • 8Ω (Nominal)
  • 3.1Ω (Minimum)
Recommended Amplifier Power
  • 30W - 200W into 8Ω (unclipped programme)
Maximum Recommended Cable Impedance
  • 0.1Ω
DIMENSIONS AND WEIGHT
Dimensions
  • 628mm Width
  • 318mm Depth
    • 356mm Depth (including grille and terminals)
  • 165mm Height
    • 233mm Height (including tweeter)
Weight
  • 17.45kg

Technical features

  • Decoupled Carbon Dome tweeter
  • Solid Body Tweeter-on-Top
  • Continuum™ cone FST™ midrange
  • Aerofoil™ Profile bass cones
  • Flowport™

Description

    • 3-way vented-box system

    Drive units

    • 1 x ø25mm (1 in) Decoupled Carbon Dome high-frequency

    • 1x ø130mm (5 in) Continuum cone FST midrange

    • 2x ø130mm (5 in) Aerofoil profile bass

    Frequency range

    • 45Hz - 33kHz

    Frequency response

    • 50Hz - 28kHz ±3dB

    Sensitivity

      • 89dB spl (2.83Vrms, 1m)

      Harmonic distortion

      • 2nd and 3rd harmonics (90dB, 1m on axis)
      • <1% 90Hz - 22kHz
      • <0.5% 120Hz - 20kHz

      Nominal impedance

        • 8Ω (minimum 3.1Ω)

        Recommended amplifier power

        • 30W - 200W into 8Ω on unclipped programme

        Max recommended cable impedance

        • 0.1Ω

        Dimensions

          • Height: 233mm including tweeter
          • Width: 628mm on plinth
          • Depth: 356mm

          Net weight

          • 17.45kg

          Cabinet finishes

            • Gloss Black
            • Satin White
            • Rosenut
            • Mocha Wood

            Grille finishes

            • Black
            • Grey (Satin White only)
