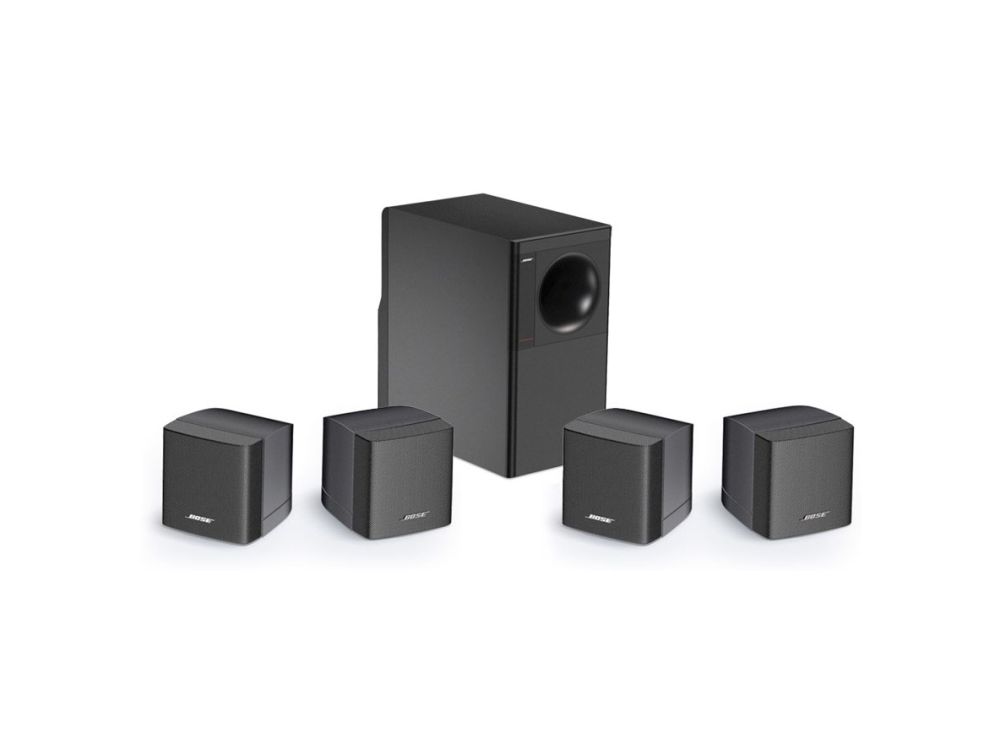

BOSE FreeSpace® 3 System

• Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations

• Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules

• Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications

• Flush-mount components are plenum rated when used with the optional plenum cover

• Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module

• Can be configured for stereo or mono operation

Frequency Response (+/-3 dB)	50 Hz - 16 kHz (System) 210 Hz - 16 kHz (Satellites)
Frequency Range (-10 dB)	40 Hz - 20 kHz (System) 170 Hz - 20 kHz (Satellites)
Long-term Power Handling	System: 70/100V: 200W (800W peak) System Low impedance: 100W (400W peak)
Sensitivity (SPL/1W @ 1m)	82 dB SPL (System) 84 dB SPL (Satellites)
Maximum SPL @ 1 m	System: 93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB) Satellites: 95 dB (101 dB SPL peak)
Nominal Impedance	4-Cube System: 6 Ω per channel 2-Cube System: 5 Ω per channel (surface); 6 Ω per channel (flush)
	Bose FreeSpace 3 Loudspeaker System - Installation Guide Bose FreeSpace 3 Series II Loudspeaker - Installation Guide
