REGA Planar 2 Turntable

Featuring the brand new RB220 tonearm which is packed with groundbreaking new features.

$1,149.00
Brand

Warranty Period : 3 years

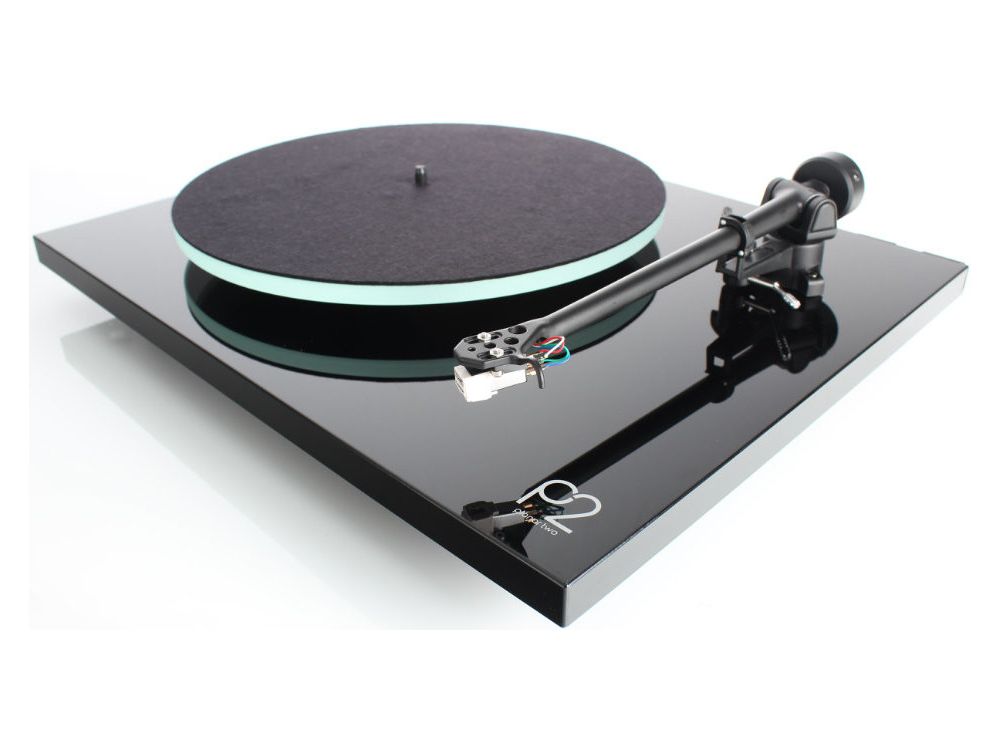

Planar 2

The Planar 2 was developed over two years alongside the latest Planar 3. Featuring the RB220 tonearm, a new 24 V low noise motor, acrylic high gloss laminated plinth, newly designed central bearing and so much more. Every feature of this innovative new turntable is designed to extract the maximum amount of information and detail from your vinyl collection

Update May 2024: Now available with the new Nd3 moving magnet factory fitted.

Time for the next step

The RB220 tonearm is packed with new features designed to enhance performance and make setup extremely simple. The RB220 incorporates patented Rega designed ultra-low friction bearings, housed within a brand new, stiffer and lightweight bearing housing. This was developed with new updated adjustable bias (as of Autumn 2020) allowing greater flexibility and compatibility with a wide range of cartridges The new housing also includes an integrated arm clip and uses Rega’s latest custom aluminium arm tube.

Central Bearing Housing

11 mm self securing brass bearing (Patent Pending) offering improved fit and less stress on the bearing preventing the transfer of potential energy.



Acrylic gloss Skin Plinth / Walnut Effect laminate

High gloss acrylic or walnut effect laminated plinth, stiffer and vastly improved appearance with ergonomically positioned power switch.



Rega Motor

New 24 V low noise, low vibration motor assembly and new PCB.



Platter

New float glass ‘Optiwhite’ 10 mm – Improved accuracy platter.

Isolation

Re-designed feet - new improved foot assembly to increase stability and reduce vibration transfer.



Cartridge

Rega Carbon cartridge supplied as standard on all Planar 2s for simple plug and play convenience.

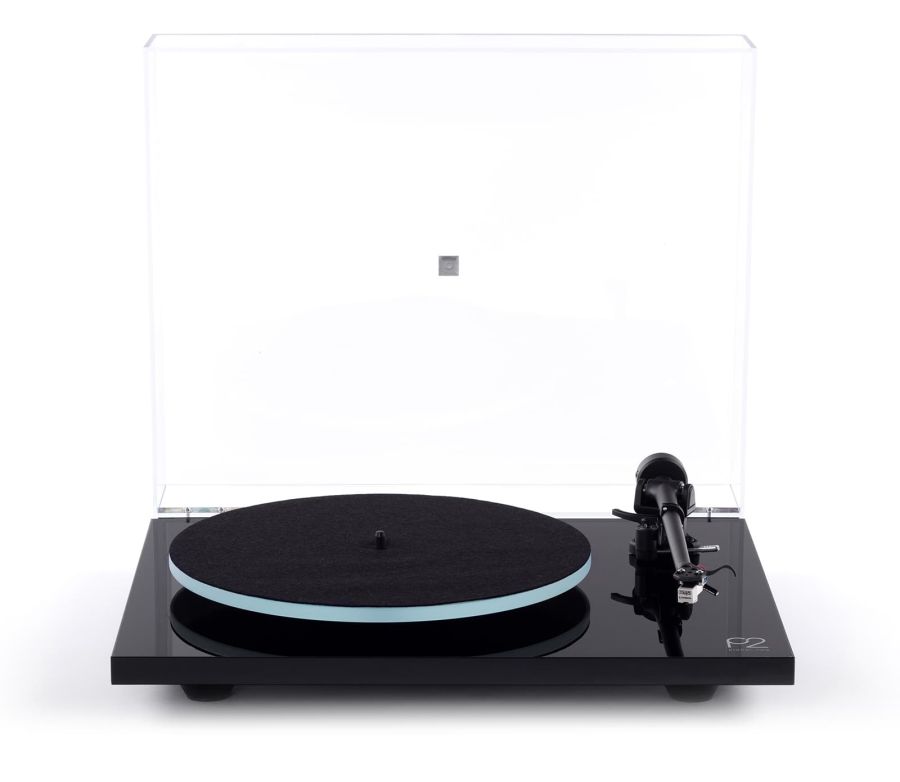

Dust Cover

Supplied as standard / optional lid - plinth protectors - supplied to prevent marks on the plinth and keep it looking its best. Walnut effect finish is supplied with the smoked dustcover as standard.



Simple Set Up

Easy to use multi-lingual quick start guide for easy set up.



Features
  • RB220 precision tonearm
  • Optional: Rega Nd3 cartridge factory fitted option
  • Rega Carbon cartridge factory fitted
  • 24 V low noise, low vibration motor
  • 10 mm float glass opti-white platter
  • Walnut effect finish supplied with smoked dust cover as standard
  • Gloss finish options (white or black) supplied with clear dust cover as standard
  • Advanced EBLT drive belt fitted as standard from March 2021
Specification
GENERAL SPECIFICATIONS
Product Type
  • Turntable
Speeds
  • 33⅓rpm
  • 45rpm
Speed Change
  • Manual (drive belt repositioning on pulley)
Tonearm
  • RB220 precision tonearm
Tonearm Bias
  • Adjustable
Factory-Fitted Cartridge
  • Rega Carbon MM cartridge (standard)
  • Rega Nd3 MM cartridge (optional)
Motor
  • 24V low-noise, low-vibration motor
Drive Belt
  • Advanced EBLT
Platter
  • 10mm Optiwhite float glass
Main Bearing
  • 11mm self-securing brass bearing
Finish
  • High-Gloss Black
  • High-Gloss White
  • Walnut Effect
Dust Cover
  • Clear (High-Gloss Black / White)
  • Smoked (Walnut Effect)
Power Supply
  • Rega PS2 mains adaptor
Turntable Power Input
  • 24V AC, 100mA
Power Requirements
  • 230V AC, 50Hz, 40mA (AUS/NZ PS2 adaptor)
CONNECTIVITY
Phono Output
  • Fixed RCA leads
Phono Stage Requirement
  • Moving Magnet phono stage required
DIMENSIONS AND WEIGHT
Dimensions
  • 447mm Width (lid closed)
  • 360mm Depth (lid closed)
  • 117mm Height (lid closed)
Weight
  • 5.5kg
GENERAL SPECIFICATIONS
Cartridge Principle
  • MM (Moving Magnet)
Mounting
  • Standard two-screw fixing
Colour
  • Black / White
CARTRIDGE AND PHONO SPECIFICATIONS
Output Voltage
  • 2.5mV (1kHz)
Stylus Profile
  • Conical
Cantilever
  • Carbon
Tracking Force
  • 2-3g
Stylus Replaceability
  • User-replaceable
  • Compatible replacement styli
    • Rega Carbon Stylus
    • Rega Carbon Pro Upgrade Stylus
Weight
  • 5.0g
GENERAL SPECIFICATIONS
Cartridge Principle
  • MM (Moving Magnet)
Mounting
  • Rega three-point fixing
Body
  • Injection-moulded glass-filled polyphenylene sulphide (PPS)
Window Colour
  • Red
CARTRIDGE AND PHONO SPECIFICATIONS
Output Voltage
  • 5-6mV (nominal)
Stylus Profile
  • Bonded elliptical
Stylus Tip
  • Manmade polycrystalline diamond
  • Round titanium shank
Cantilever
  • Aluminium
Tracking Force
  • 1.75g
Magnet
  • N55 neodymium
Coils
  • Miniaturised parallel coils
    • 38µm wire
    • 1275 turns
