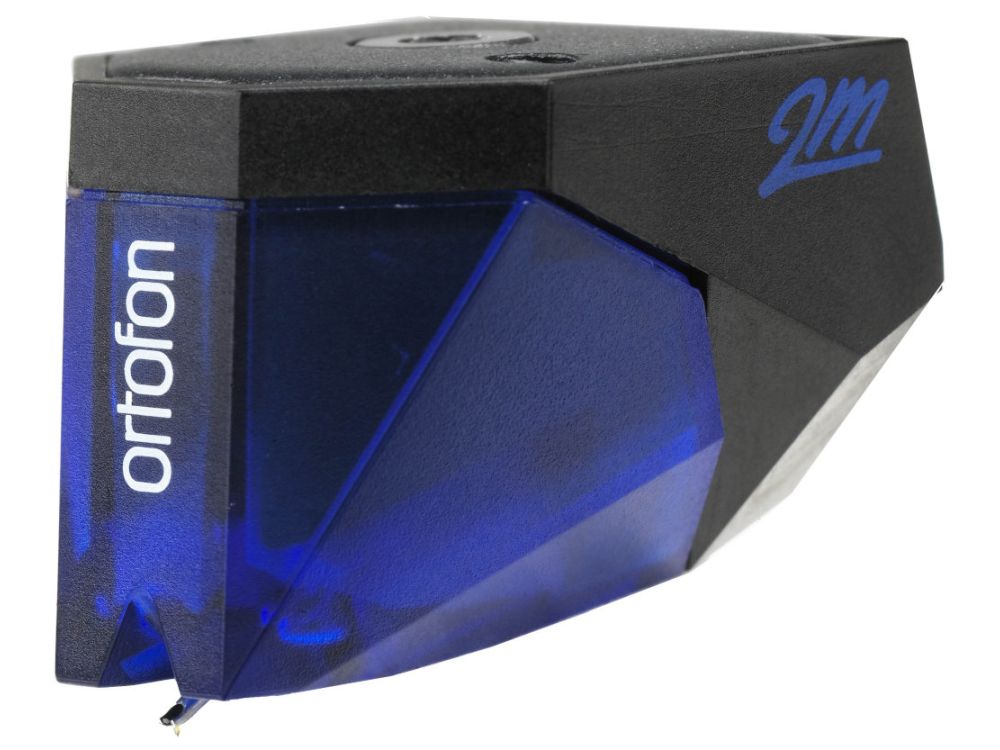

ORTOFON 2M Blue Moving Magnet Cartridge
Move your mouse over image or click to enlarge
ORTOFON 2M Blue Moving Magnet Cartridge ORTOFON 2M Blue Moving Magnet Cartridge

Ask a Question







Ask a Question


ORTOFON 2M Red Moving Magnet Cartridge

ORTOFON 2M Red Moving Magnet Cartridge

ORTOFON 2M Bronze Moving Magnet Cartridge

ORTOFON 2M Bronze Moving Magnet Cartridge

ORTOFON 2M Blue Moving Magnet Cartridge

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound .The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Special Price $332.00 Regular Price $369.00
SKU
Ortofon 2Mblue

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design of 2M series for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.



The new 2M Blue Verso model is an alternative product for bottom mount tonearms

The 2M Blue Series features:

  • an improved engine, which provides an increased output of 5.5mV
  • Nude Elliptical diamond and split pole pins with a copper wire

Output voltage at 1kHz, 5cm/sec

  • 5.5mV

Channel Balance at 1kHz

  • 1.5dB

Channel Separation at 1kHz

  • 25dB

Channel separation at 15kHz

  • 15dB

Frequency range at -3dB

  • 20Hz - 25kHz

Frequency Response

  • 20Hz - 20kHz +2/-1dB

Tracking Ability at 315Hz at recommended tracking force

  • 80 µm

Compliance, Dynamic, Lateral

  • 20 µm/mN

Stylus Type

  • Nude Elliptical

Stylus tip radius

  • r/R 8/18 µm

Tracking force range

  • 1.6-2.0g (16-20 mN)

Tracking force, recommended

  • 1.8 g (18 mN)

Tracking angle

  • 20°

Internal impedance, DC resistance

  • 1300 Ohm

Internal inductance

  • 700 mH

Recommended load resistance

  • 47 kOhm

Recommended load capacitance

  • 150-300 pF

Cartridge colour

  • Black and Blue

Cartridge mass

  • 20g
