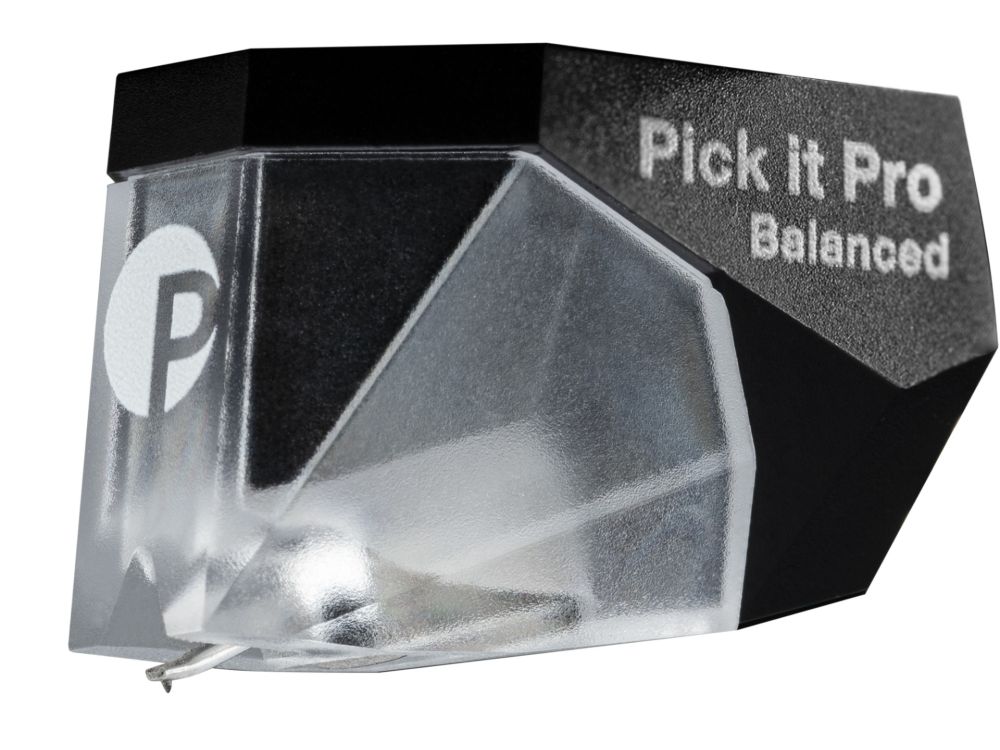

PRO-JECT PICK IT PRO BALANCED MM CARTRIDGE

True Balanced compatible moving magnet phono cartridge with elliptical stylus and high output, designed to reduce hum and interference when used with compatible balanced turntables, cables, and phono stages.

$329.00
Brand

Warranty Period : 1 year

Warranty Period : 1 year

True Balanced compatible MM Cartridge

The new Pick it PRO Balanced cartridge is a revised version of the Pick it PRO which allows you a "True Balanced“ signal transmission. Standard MM cartridges cannot be used with a symmetrical connection, as it would result in a difference between the left and right channel. The big advantage of a balanced connection is its ability to remove picked up noise and interference.

Our "True Balanced" cable range offers you the perfect cable to connect your turntable to either the Phono Box S3 B or Phono Box DS3 B.

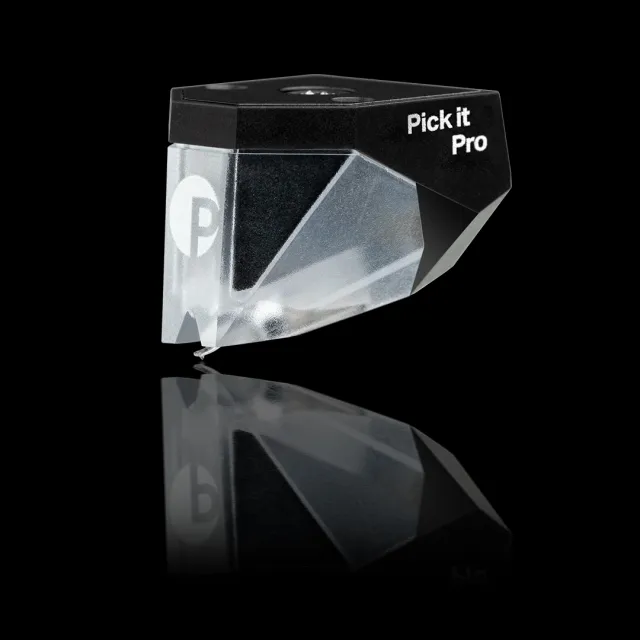

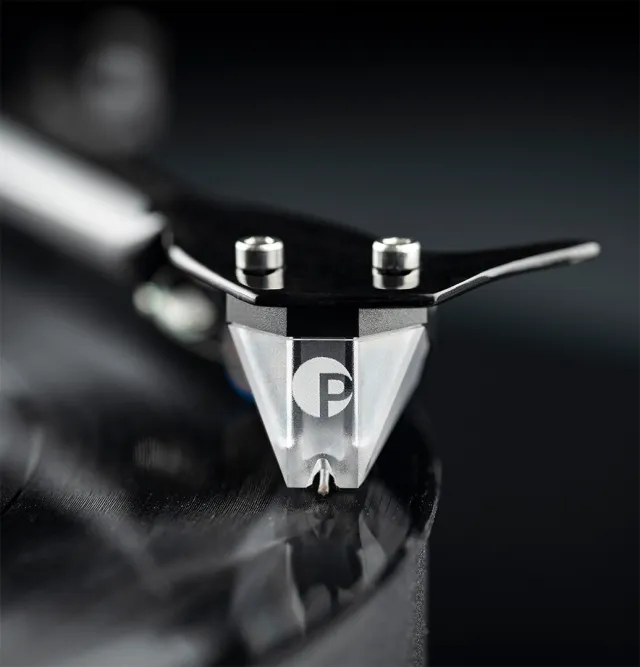

Pick it PRO Balanced

True Balanced compatible MM Cartridge

Lively & robust with a high dynamic range

The first of its kind. The new Pick it PRO Balanced cartridge is a revised version of the Pick it PRO which allows you a „True Balanced“ signal transmission.

Made in Europe

We have always been looking for the best price/performance ratio, with perfect manufacturing quality and „Made in Europe“.

For this reason, we decided to work with Ortofon to develop a unique range of cartridges. Thanks to the excellent manufacturing skills of Ortofon we were able to produce a very special cartridge: The Pick it PRO.

Balanced connection

The big advantage of a balanced connection is its ability to remove picked up noise and interferences. Our „True Balanced“ cable range offers you the perfect cable to connect your turntable to either the Phono Box S3 B or Phono Box DS3 B.

Features
  • NEW True Balanced compatible MM cartridge
  • Moving Magnet principle
  • High fidelity
  • Very detailed with low distortion
  • Exceptionally lively & robust
  • Convinces with high a dynamic range
  • Simple and fast mounting
  • 1/2 inch mounting standard
  • Threaded holes for simple moutning without nuts
  • New transparent design
  • Made in Europe
Specification
CARTRIDGE SPECIFICATIONS – PRO-JECT PICK IT PRO BALANCED
Cartridge principle
  • MM (Moving Magnet)
OUTPUT
Output voltage
  • 4 mV (1 kHz)
PERFORMANCE (AS SUPPLIED)
Frequency response
  • 20 Hz – 20,000 Hz (±2 dB)
Channel separation
  • 22 dB (1 kHz)
Trackability
  • 70 µm (315 Hz, lateral)
STYLUS & MECHANICAL
Stylus type
  • Elliptical
Stylus tip radius
  • r/R 8 / 18 µm
Tracking force
  • 1.8 – 2.2 g (range)
  • 2.0 g (recommended)
Tracking angle
  • 20°
Mounting height
  • 18 mm (stylus tip to top mounting surface)
ELECTRICAL CHARACTERISTICS
Internal impedance
  • 750 Ω (DC resistance)
Internal inductance
  • 450 mH
LOAD REQUIREMENTS
Recommended load resistance
  • 47 kΩ
Recommended load capacitance
  • 150 – 300 pF
WEIGHT
Weight
  • 8.0 g (cartridge including stylus)
