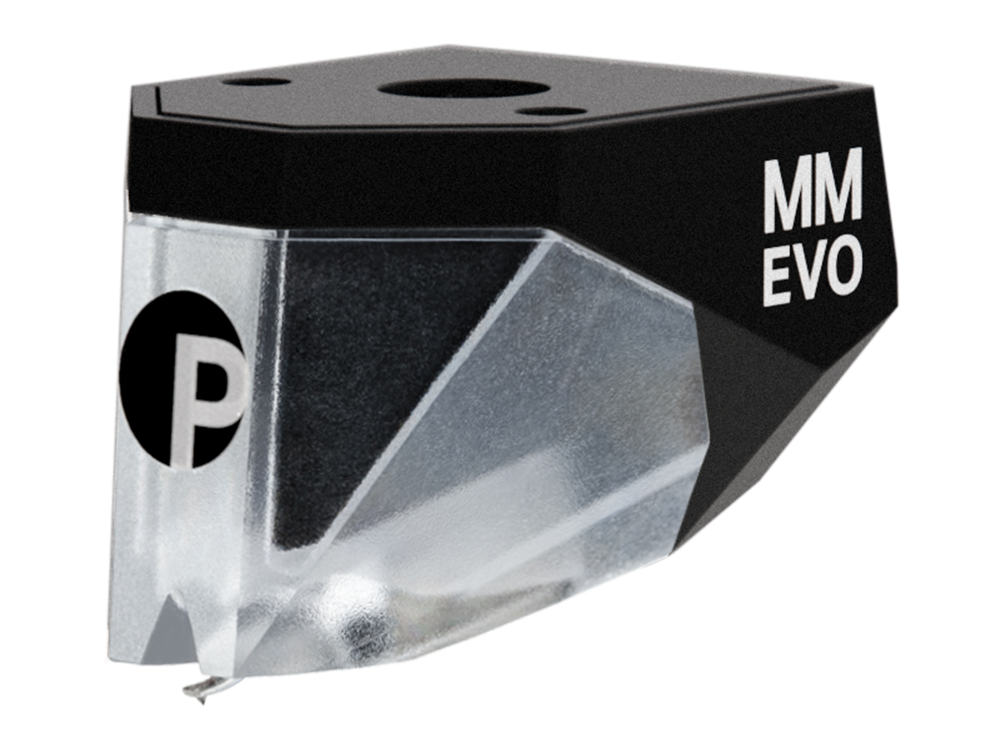

PRO-JECT Pick It MM EVO

Moving magnet phono cartridge with nude elliptical stylus, designed for low noise, balanced tracking, and clean, neutral playback from standard MM phono stages.

$269.00
Brand

Warranty Period : N/A

Warranty Period : N/A

Next generation MM cartridge

The new Pick it MM EVO

The new superior high dynamic 7mV output Pick it MM EVO cartridge is manufactured by the phono cartridge experts at Ortofon and carefully voiced by the design team at Pro-Ject Audio Systems.

It is equipped with a special elliptical stylus tip. It provides detailed sound reproduction and expansive imaging. It is a no-nonsense performer with fascinating musical resources. Attached to a strong cantilever, used in DJ cartridges, this cartridge will not just sound great, it is also very strong.

The cartridge is made from a unique combination of technologies. One of which is Ortofon‘s well known split pole pins. This enables it to have a flat frequency response, which is comparable to MC cartridges.

Features
  • Moving Magnet principle
  • Split pole pins enables frequency responses that compares very well to MC cartridges
  • Strong cantilever based in high-end DJ cantilevers
  • Suitable for low to medium tonearm masses
  • Very detailed with low distortion
  • Exceptionally lively & robust
  • Convinces with high a dynamic range
  • Simple and fast mounting
  • 1/2 inch mounting standard
  • Threaded holes for simple mouting without nuts
  • Stylus available separately
  • Made in Europe
Specification
CARTRIDGE SPECIFICATIONS – PRO-JECT PICK IT MM EVO
Cartridge principle
  • MM (Moving Magnet)
ELECTRICAL OUTPUT
Output voltage
  • 7 mV (1 kHz)
PERFORMANCE
Frequency response
  • 20 Hz – 20,000 Hz (+3 / -1 dB)
Channel separation
  • 22 dB (1 kHz)
Trackability
  • 70 µm (315 Hz, lateral)
STYLUS & MECHANICAL
Stylus type
  • Elliptical
Stylus tip radius
  • r/R 8/18 µm
Tracking force
  • 1.6 – 2.0 g (range)
  • 1.8 g (recommended)
Tracking angle
  • 20°
Mounting height
  • 18 mm (stylus tip to top mounting surface)
LOAD REQUIREMENTS
Recommended load resistance
  • 47 kΩ
Recommended load capacitance
  • 150 – 300 pF
WEIGHT
Weight
  • 7.2 g
