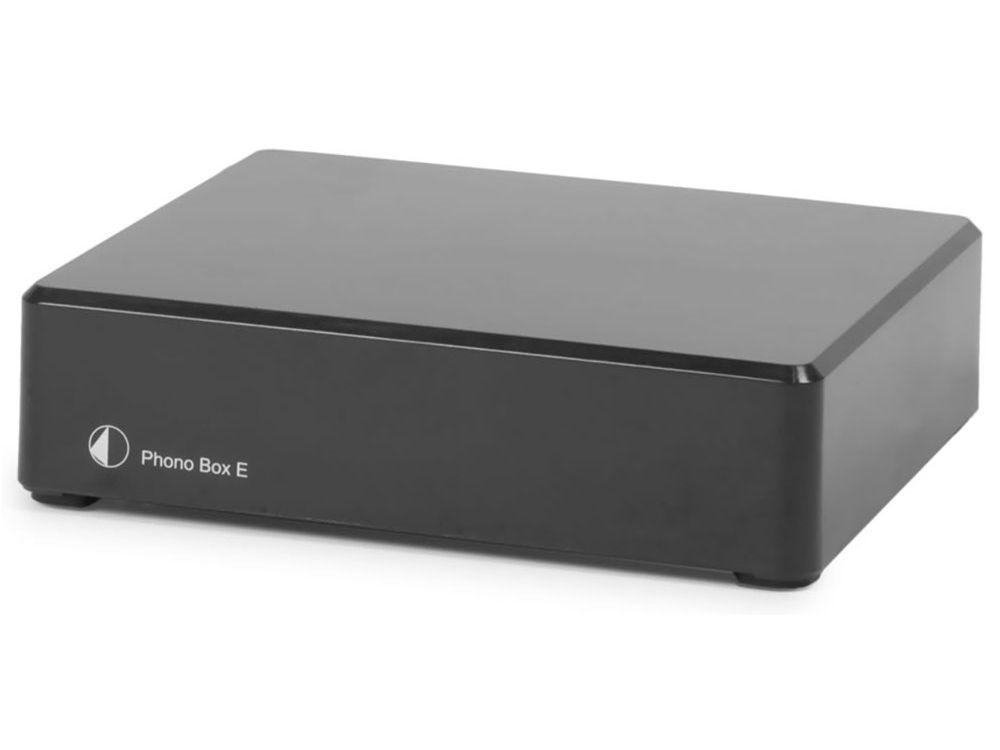

PRO-JECT Phono Box E Pre Amplifier

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry-level price.

Special Price $135.00 Regular Price $149.00

Please Note: Phono Pre-Amp's require RCA cables to connect to your amplifier. We have a wide selection of cables and interconnects available HERE.


Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry-level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.

Features

• Amplification and RIAA equalisation for MM cartridges

• Design principle inspired by Dr. Sykora

• SMD circuitry

• Special low noise components

• Internal metal shielding

• Small size allows installation close to record player

• Gold plated RCA connection sockets

• Outboard power supply included

Specification

Input impedance

  • 47kohms

Input capacitance

  • 120pF

Gain

  • 40dB

Output voltage(typically)

  • 500mV @ 1KhZ with 5mV input

Noise floor

  • 88dB (A weighted)

THD

  • <0,04%

RIAA equalisation accuracy

  • 20Hz –20kHz (+0,5/ -,02dB)

Input

  • 1 pair RCA socket

Output

  • 1 pair RCA socket

Outboard power supply

  • 18V/500mA DC; 220 - 240V, 50Hz

Standby power consumption

  • < 1 watt

Power consumption

  • 20mA DC

Dimension

  • 120mm Width
  • 115mm Depth
  • 32mm Height

Weight

  • 250 g without power supply
