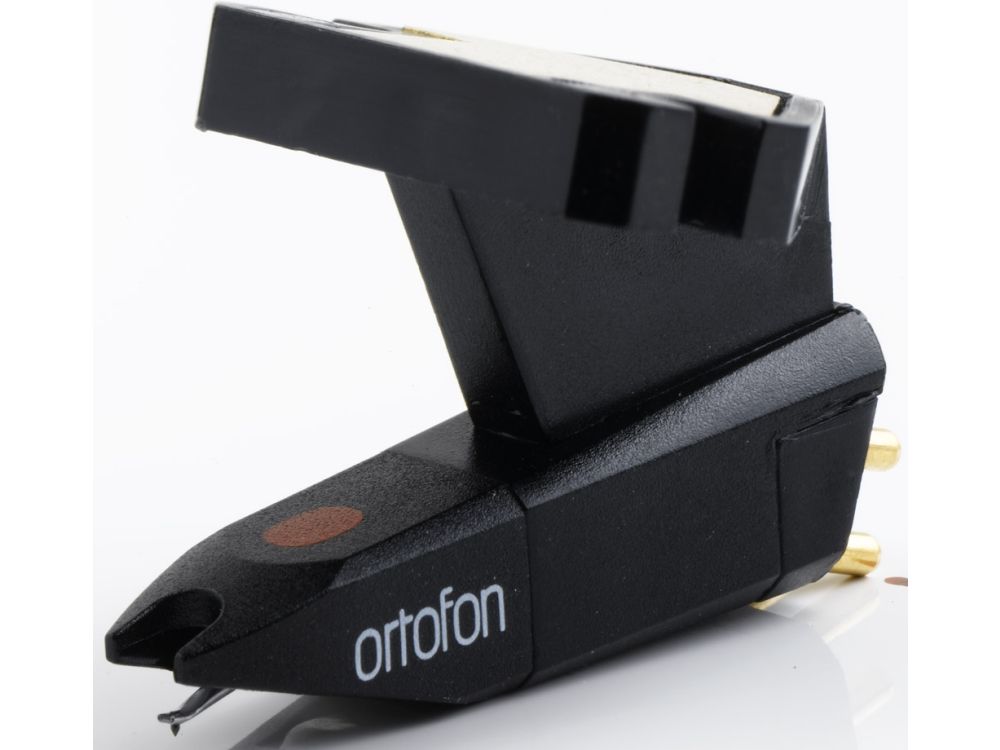

ORTOFON Super OM5E Moving Magnet Cartridge
Move your mouse over image or click to enlarge
ORTOFON Super OM5E Moving Magnet Cartridge ORTOFON Super OM5E Moving Magnet Cartridge

Ask a Question







Ask a Question


ORTOFON OM5S Moving Magnet Cartridge

ORTOFON OM5S Moving Magnet Cartridge

NAD C658 Blu OS Streaming DAC

NAD C658 Blu OS Streaming DAC

ORTOFON Super OM5E Moving Magnet Cartridge

Based on the OM 5E, Ortofon's stellar entry-level cartridge, the Super OM 5E offers an even more refined experience at an approachable price.

$149.00
SKU
ORTOFON Super OM5E Moving Magnet Cartridge

Based on the OM 5E, Ortofon's stellar entry-level cartridge, the Super OM 5E offers an even more refined experience at an approachable price.

Designed with sophisticated computer simulations and built using incredibly precise machining, the Super OM 5E is the pinnacle of the OM 5 Series, offering a broader frequency range and better channel separation. Its elliptical stylus tracks the grooves of a record with ease and grace, for a more detailed, clearer sound.

Lightweight and versatile, the Super OM 5E is compatible with just about any tonearm, making it an easy upgrade for a vinyl beginner or a terrific option for a second system.

Output voltage at 1kHz, 5cm/sec

  • 4mV

Channel Balance at 1kHz

  • 1.5dB

Channel Separation at 1kHz

  • 22dB

Channel separation at 15kHz

  • 15dB

Frequency range at -3dB

  • 20Hz - 25kHz

Frequency Response

  • 20Hz - 20kHz  ± 2 dB

Tracking Ability at 315Hz at recommended tracking force

  • 65 µm

Compliance, Dynamic, Lateral

  • 20 µm/mN

Stylus Type

  • Elliptical

Stylus tip radius

  • r/R 8/18 µm

Tracking force range

  • 1.5-2.0 g (15-20 mN)

Tracking force, recommended

  • 1.75 g (17.5 mN)

Tracking angle

  • 20°

Internal impedance, DC resistance

  • 1000 Ohm

Internal inductance

  • 580 mH

Recommended load resistance

  • 47 kOhm

Recommended load capacitance

  • 200-500 pF

Cartridge colour

  • Black

Cartridge mass

  • 5g
