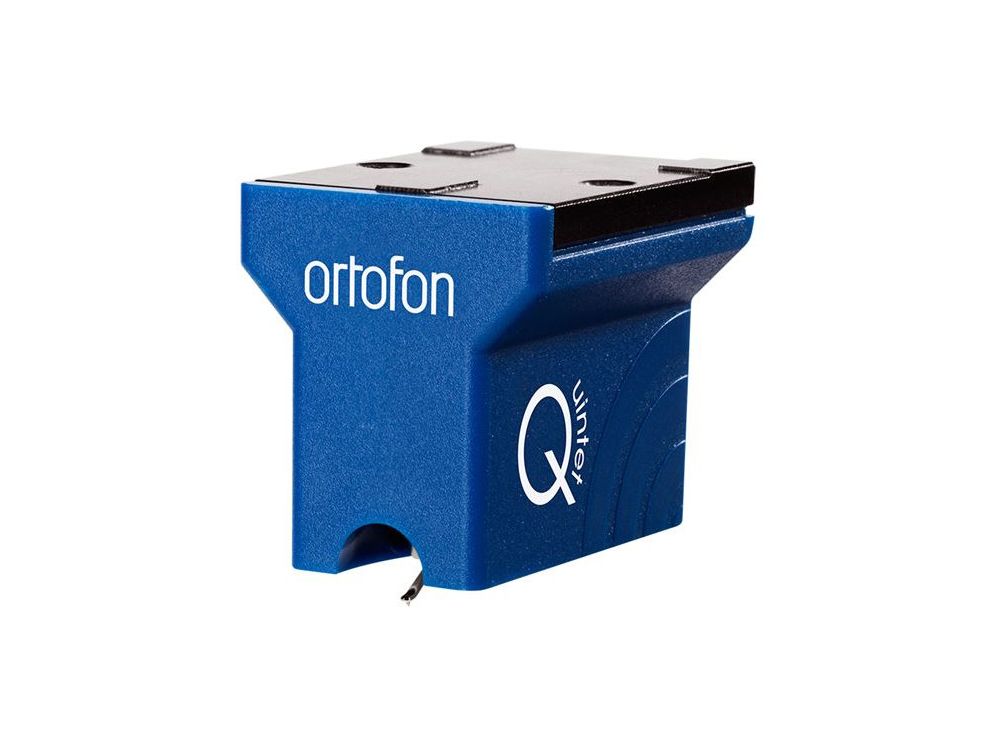

ORTOFON Quintet Blue Moving Coil Cartridge
The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
Special Price $692.00 Regular Price $769.00
SKU
ortofon-Quintet-blue-moving-coil-cartridge
The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
It features a Nude Elliptical diamond mounted on an aluminium cantilever.
The soundstage of Quintet Blue is wide open and grandiose straight out of the box. Micro dynamic and ambience will be evident when listening to complex compositions. It reaches a very high degree of definition in the perspective, which is very present. It is true to the music with a tremendous clarity.
|
Technical Data |
|
| Output voltage at 1 kHz 5 cm/sec | 0.5 mV |
| Channel balance | < 1.5 dB |
| Channel separation at 1 kHz | > 21 dB |
| Channel separation at 15 kHz | > 14 dB |
| Frequency range at -3 dB | 20-25.000 Hz |
| Frequency response 20-20.000 Hz | +/-2.5 dB |
| Tracking ability at 315 Hz at recommended tracking force *) | 70 μm |
| Compliance, dynamic, lateral | 15 μm/mN |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 μm |
| Tracking force range | 2.1-2.5 g (21-25 mN) |
| Tracking force recommended | 2.3 g (23 mN) |
| Tracking angle | 20º |
| Internal impedance, DC resistance | 7 Ohm |
| Recommended load impedance | >20 Ohm |
| Cartridge body material | ABS/Aluminium |
| Coil wire material | Pure 4-nines copper |
| Cartridge colour | Blue |
| Cartridge weight | 9 g |
| *) Typical value |
