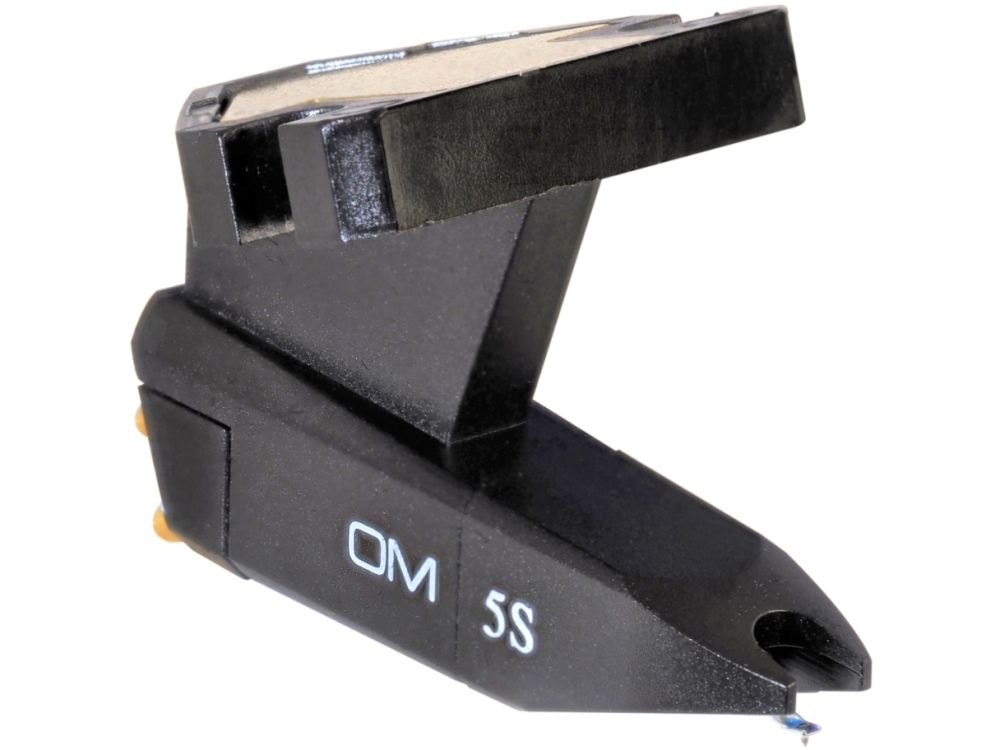

ORTOFON OM5S Moving Magnet Cartridge

Based on the OM 5E, Ortofon's stellar entry-level cartridge, the OM 5S is a perfect introduction to the world of hi-fi at a price that can't be beaten.

Special Price $72.00 Regular Price $79.00
Brand

Warranty Period : N/A

Sold as : 1 Unit

Warranty Period : N/A

Sold as : 1 Unit

Save $7.00 8% off

    Fast Shipping

    Australia Wide

    Family owned since 1969

    Same store, same street, same owners.

    Expert advice

    Talk to our local team.

    Based on the OM 5E, Ortofon's stellar entry-level cartridge, the OM 5S is a perfect introduction to the world of hi-fi at a price that can't be beaten.

    Offering unbeatable value and a convenient upgrade path, the OM 5S is a brilliant solution for someone who's just starting out in vinyl, or for a DJ who wants to enjoy more detail and nuance than durable DJ cartridges can provide. Once they've tried the OM 5S and gotten a taste for true analogue sound, upgrading is as simple as swapping the stylus for a more subtle OM model. Convenient and well-built, you simply can't go past the OM 5S.

    Specification

    Output voltage at 1kHz, 5cm/sec

    • 4.5mV

    Channel Balance at 1kHz

    • 2dB

    Channel Separation at 1kHz

    • 20dB

    Channel separation at 15kHz

    • 12dB

    Frequency range at -3dB

    • 20Hz - 20kHz

    Frequency Response

    • 20Hz - 22kHz

    Tracking Ability at 315Hz at recommended tracking force

    • 60 µm

    Compliance, Dynamic, Lateral

    • 20 µm/mN

    Stylus Type

    • Spherical

    Stylus tip radius

    • R 18 µm

    Tracking force range

    • 1.5-2.0 g (15-20 mN)

    Tracking force, recommended

    • 1.75 g (17.5 mN)

    Tracking angle

    • 20°

    Internal impedance, DC resistance

    • 750 Ohm

    Internal inductance

    • 450 mH

    Recommended load resistance

    • 47 kOhm

    Recommended load capacitance

    • 200-500 pF

    Cartridge colour

    • Black

    Cartridge mass

    • 5g
