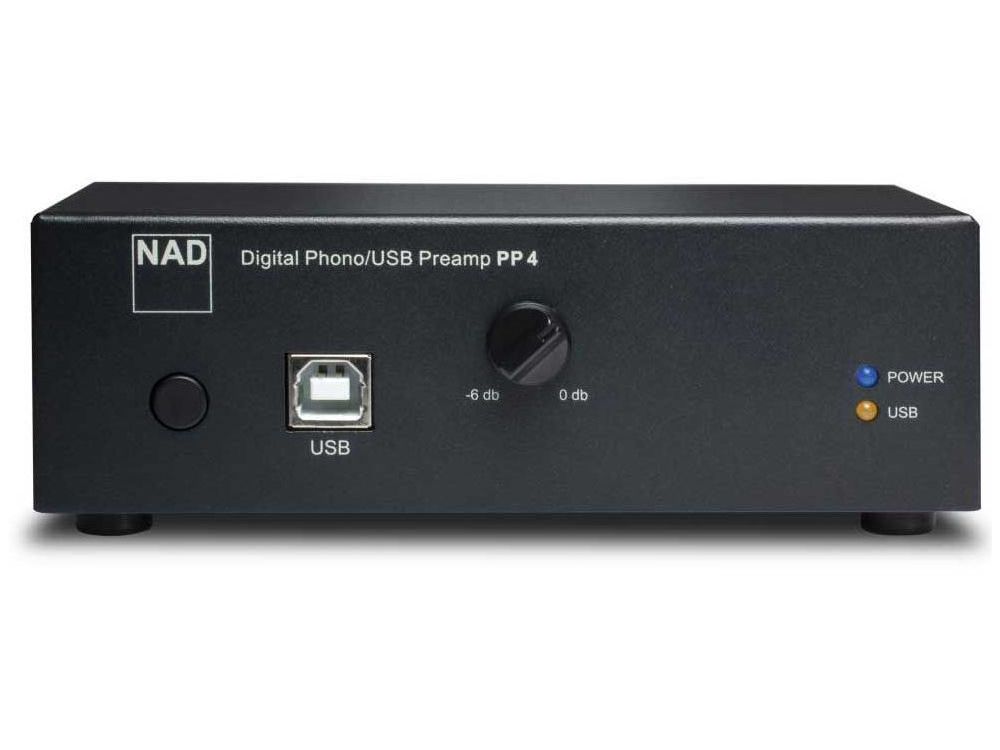

NAD PP4 Phono Pre Amplifier with USB
Show your vinyl collection some serious love. Offering superb measured and sonic performance, NAD's two simple solutions, the PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today's stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable.
Show your vinyl collection some serious love. Offering superb measured and sonic performance, NAD's two simple solutions, the PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today's stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable. As part of NAD's commitment to the environment, the PP 4 features a more efficient "green" power supply that reduces power consumption. The PP 4 goes one step further with a USB interface, shielded USB cable and recording level control which combine to reduce noise and improve the analogue-to-digital conversion process. The PP 4's Auto Power Down feature saves energy by automatically powering the PP 4 to OFF when not in use.
Our PP 4 Digital Phono/USB Preamplifier enables you to digitise your treasured vinyl collections to a PC or Mac. It features inputs for both MM (moving magnet) and low noise MC (moving coil) types for a wide variety of phono cartridges, and there is a line input to allow for the transfer of cassette tapes. The PP 4 also includes VinylStudio Lite Software for ripping LPs and burning audio CDs. The PP 4 Phono-to-USB Preamp offers a complete hardware and software solution with exceptional flexibility to record from LP or tape.
| MC PP 4 PP 2i | |
| Input Impedance (R and C) | 100Ω + 180pF |
| Gain at 1kHz | 58dB |
| Input sensitivity (ref. 200mV output) | 0.38mV |
| Signal to noise (A weighted, with cartridge connected) | 78dB |
| Input overload (20Hz/1kHz/20kHz) | 0.65/6.5/60mV |
| Rated Distortion (THD 20Hz - 20kHz) | <0.03% |
| RIAA response accuracy | ±0.3dB |
| Infrasonic filter | 5Hz -14dB |
| 10Hz -3dB | |
| Digital output (USB) | 16 bit linear PCM |
| Sampling frequency | 48kHz |
| Dynamic range | 86dB |
| MM | |
| Input Impedance (R and C) | 47kΩ + 200pF |
| Gain at 1kHz | 35dB |
| Input sensitivity (ref. 200mV ouput) | 5mV |
| Signal to noise (A weighted, with cartridge connected) | 76dB |
| Input overload (20Hz/1kHz/20kHz) | 10/100/900mV |
| Rated Distortion (THD 20Hz - 20kHz) | <0.03% |
| RIAA response accuracy | ±0.3dB |
| Infrasonic filter | 5Hz -14dB |
| 10 Hz -3dB | |
| Digital output (USB) | |
| Sampling frequency | 16 bit linear PCM |
| Dynamic range 89dB | 48kHz |
| Record Level | 0dB to -6dB |
| Dimensions excl. Power supply (W x H x D)* 135 x 49 x 72mm 135 x 49 x 72mm | |
| Line In | |
| Input Impedance | 47k + 180pF |
| Rated Distortion (THD 20Hz - 20kHz) | <0.008% |
| Signal to noise, A weighted | -115dB |
| Maximum Input Level | 5.3V |
| Line Out | |
| Output Impedance | 100Ω |
| Maximum Output Level | 5.3V |
