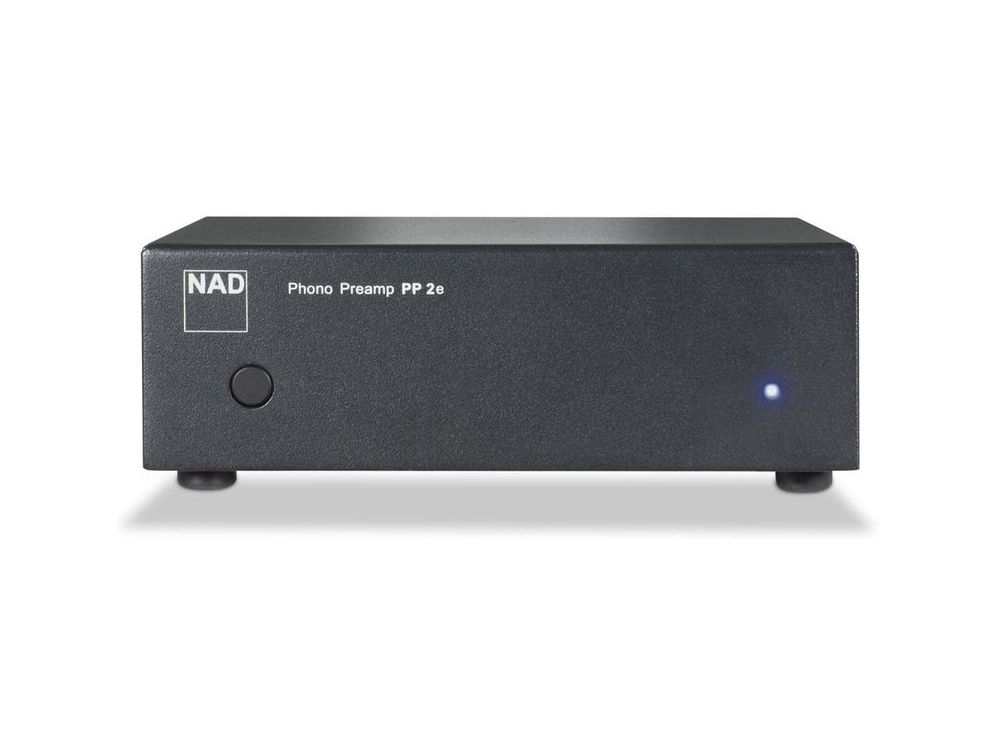

NAD PP2e Phono Pre-Amp

Moving Magnet and Moving Coil Phono Preamp

Special Price $269.00 Regular Price $299.00
SKU
NADPP2e

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. This allows the PP 2e to be paired with any turntable, giving consumers unlimited choice in building their system. The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use. Built to be the best companion to one’s turntable setup, the PP 2e breathes life back into the vinyl you love.

Improved Energy Saving Phono Preamp

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package for a very reasonable cost. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use.

  • Low noise, wide band MM & MC phono stage
  • Connect your turntable to almost all amplifiers and receivers
  • External 24 volt power supply
  • Gold plated input sockets
  • High quality components
  • LED power indicator

MC

Input Impedance (R and C)

  • 100 Ohm + 180pF

Gain at 1kHz

  • 60dB

Input Sensitivity (ref. 200mV output)

  • 0.3mV

Signal to Noise Ratio

  • 78dB (A weighted, with cartridge connected)

Input Overload

  • 0.8mV @ 20Hz
  • 9mV @ 1kHz
  • 84mV @ 20kHz

Rated Distortion (THD 20Hz – 20kHz)

  • <0.03%

RIAA Response Accuracy

  • ±0.3dB

MM

Input Impedance (R and C)

  • 47 kilohm + 200pF

Gain at 1kHz

  • 35dB

Input sensitivity (ref. 200mV output)

  • 2.5mV

Signal to Noise Ratio

  • 80dB (A weighted, with cartridge connected)

Input overload (20Hz/1kHz/20kHz)

  • 10mV @ 20Hz
  • 102mV @ 1kHz
  • 950mV @ 20kHz

Rated Distortion (THD 20Hz – 20kHz)

  • <0.03%

RIAA response accuracy

  • ±0.3dB

Line Out

Output Impedance

  • 100 Ohm

Maximum Output Level

  • 5.3V

General Specifications

Power Requirements

  • External 23.5V DC Power Supply

Dimensions

  • 135mm Width
  • 72mm Depth
  • 49mm Height
