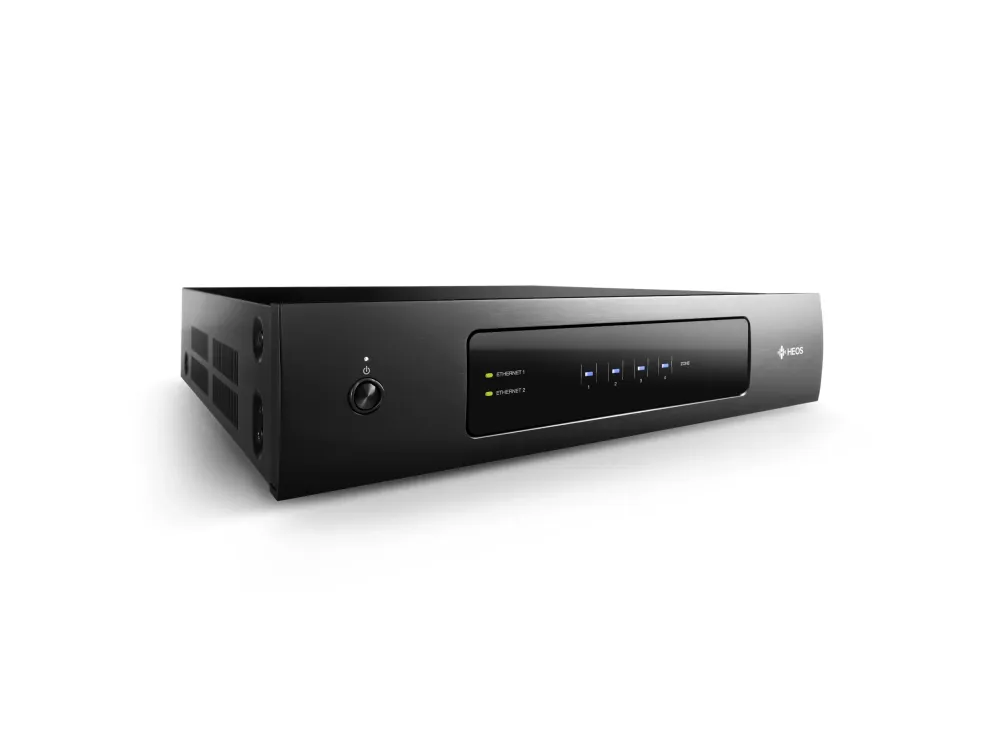

HEOS DRIVE HS2 4 Zone Streaming Amplifier 8 Ch. 60W Amplifier for complete audio distribution Powered by HEOS™ Designed by custom integration specialists for custom integration professionals, HEOS Drive is a unique 4 zone whole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis.
Stereo amplifier 60W per channel (8 ohms) 4 zone amplifier Dolby Digital/Dolby Digital+ Powered by HEOS™ USB input $3,999.00
Professional-grade amplifier for whole home audio Stream your favorite content wirelessly to every room of your home with HEOS®.
Sonic Innovation For the Past 110 Years For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.
Specification GENERAL SPECIFICATIONS Product Type Multi-Zone Streaming Amplifier Networked Multi-Room Amplifier Zones 4 Independent Stereo Zones Powered Channels Rack Mounting Power Requirements Power Consumption 160W Peak 0.3W Deep Standby AMPLIFICATION Amplifier Class Power Output Maximum Output 60W per Channel (8Ω, 20Hz - 20kHz, 0.05% THD, 8 Channels Driven) 130W per Channel (8Ω, 20Hz - 20kHz, 0.05% THD, Bridge Mode, 4 Channels Driven) Rated Output 60W per Channel (8Ω, 20Hz - 20kHz, 0.07% THD, 8 Channels Driven) 120W per Channel (8Ω, 20Hz - 20kHz, 0.07% THD, Bridge Mode, 4 Channels Driven) Speaker Impedance 4Ω - 16Ω (Normal Operation) 4Ω - 16Ω (Bridge Operation) Total Harmonic Distortion + Noise Signal-to-Noise Ratio Frequency Response Output Mode Bridge Mode ANALOGUE INPUTS Analogue Inputs 4 x Stereo RCA Line Inputs Assignable to Any Zone DIGITAL INPUTS Digital Audio Inputs 2 x Optical Digital 2 x Coaxial Digital Assignable to Any Zone Digital Input Format Support 2-Channel PCM 16-bit / 20-bit / 24-bit 32kHz - 192kHz Dolby Digital USB FUNCTIONS USB Mass Storage Inputs USB Storage File System Support AUDIO PROCESSING Supported Audio Formats PCM MP3 16-bit 32kHz / 44.1kHz / 48kHz 32kbps - 320kbps AAC-LC 16-bit 32kHz / 44.1kHz / 48kHz 48kbps - 320kbps WMA 16-bit 32kHz / 44.1kHz / 48kHz 48kbps - 192kbps WAV FLAC ALAC Tone Control High-Pass Filter 40Hz 80Hz 90Hz 100Hz 110Hz 120Hz 150Hz 200Hz 250Hz Subwoofer Low-Pass Filter 40Hz 60Hz 80Hz 90Hz 100Hz 110Hz 120Hz OUTPUTS Speaker Outputs 4 x Stereo Zones 8 Amplified Channels Pre-Outs 4 x Stereo RCA Pre-Outs 1 Pair per Zone Subwoofer Output Available from Left Pre-Out of Each Zone NETWORK AND STREAMING Network Connections 2 x Ethernet (RJ-45) Wired Network Connection Streaming Services Spotify Amazon Music HD TIDAL Qobuz Deezer SoundCloud TuneIn Internet Radio iHeartRadio MoodMix Streaming Protocols HEOS Spotify Connect TIDAL Connect Qobuz Connect Network Functions PC Music Playback NAS Music Playback USB Mass Storage Playback Multi-Room Audio Group Playback External Input Distribution to HEOS Devices Independent Source Playback by Zone TV Sound Grouping CONNECTIVITY Input Routing Matrix Switching Analogue and Digital Inputs Assignable to Any Zone Control Outputs 4 x 12V Trigger Outputs 1 per Zone DIMENSIONS AND WEIGHT Dimensions 430mm Width 483mm Width (with rack ears) 402mm Depth 88mm Height Weight
