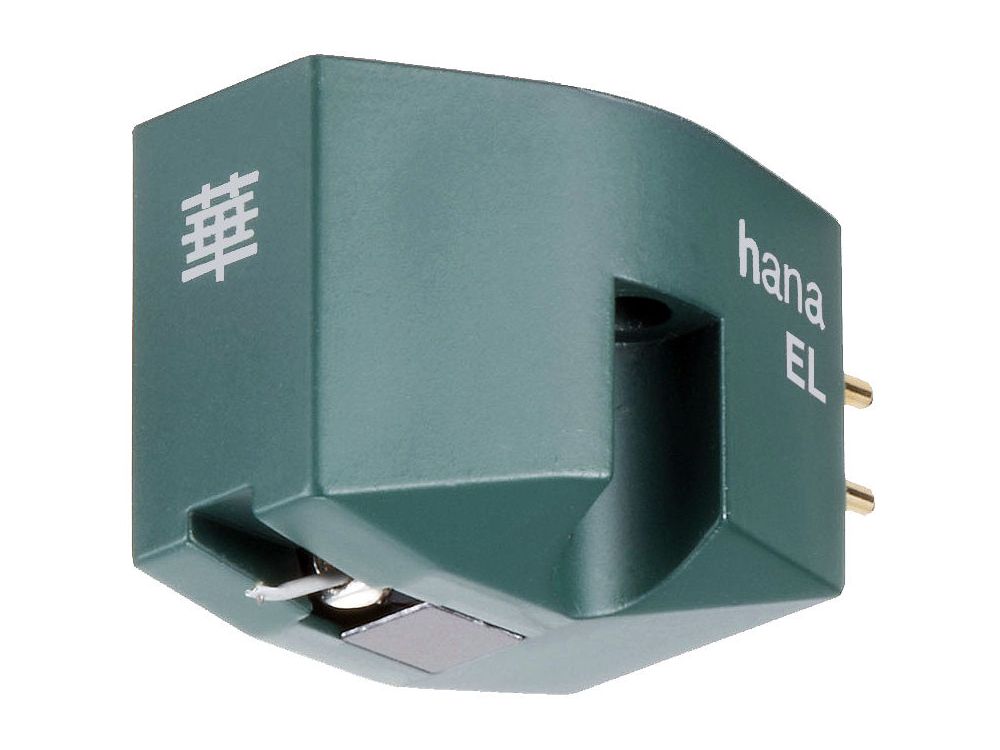

HANA EL MC Elliptical Moving Coil Cartridge

Low cost, high performance, low output Moving Coil cartridge with elliptical stylus.

$855.00

The Hana EL cartridge, designed and built-in Tokyo, has a synthetic Elliptical diamond stylus. The body is manufactured from a composite low resonance plastic material in pleasant dark green. Looking deeper into more details, the stylus is fitted to a high rigidity aluminium cantilever with a cross-shaped armature, offering super transparency and excellent trackability.

Designed by the veteran cartridge manufacturer Excel Sound Corporation, this competitively priced Low output moving coil cartridge brings great quality sound referenced against similar priced cartridges. The Elliptical Low output offers 0.5mv/1KHz output.

All of the Hana series have been developed with significance placed on easy use and set-up, as well as high-performance reproduction. Nonetheless, Hana's high output versions, EH and SH, supply 2mV high output, so that they can be directly connected to MM phono input for vinyl reproduction.

Specification

Model

  • Hana EL

Stylus

  • Synthetic Elliptical

Cantilever

  • Aluminium

Output Level

  • 0.5mV/1kHz

Output Balance

  • <2dB/1kHz

Vertical Tracking Force

  • 2 gr.

Trackability

  • 70μm/2gr.

Channel Separation

  • 25dB/1kHz

Frequency Response

  • 15~25,000Hz

Impedance

  • 30Ω/1kHz

Suggested Load Impedance

  • >400Ω

Cartridge Weight

  • 5 gr.

Body Color

  • Moss Green
