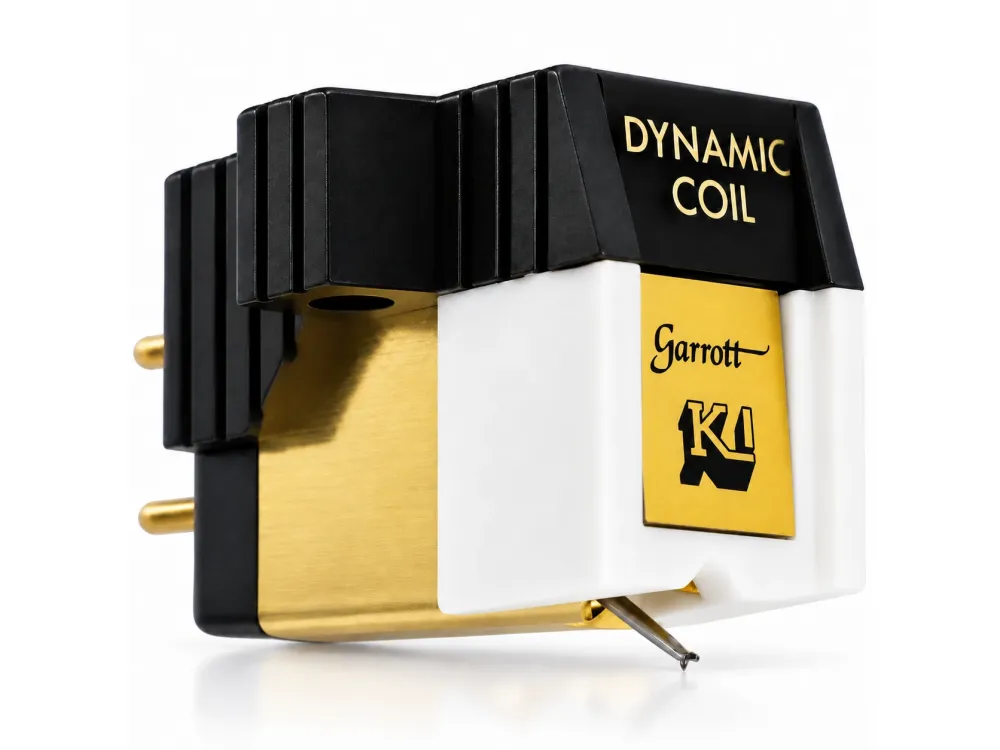

GARROTT BROTHERS K1 Moving Magnet Phono Cartridge

Classic Australian-designed moving magnet phono cartridge with Garrott Supertrack 1 stylus.

$239.00

Warranty Period : 1 year

Warranty Period : 1 year

The first of the Garrott cartridges has a conical stylus, which may seem a bit ordinary until you remember that even some classic cartridges had conical or even spherical stylus tips! The K1 is a very good step up from the common types of cartridge that many turntables came with, or even as a step up from those old Shures which, in their day, were "the step up." The K1 is compatible with most turntables/arms of the "detachable headshell" or one-piece tubular type and with the usual sort of MM (moving magnet) phono stages found in amplifiers.

Specification
CARTRIDGE AND PHONO SPECIFICATIONS
Cartridge Principle
  • MM (Moving Magnet)
Stylus
  • Garrott Supertrack 1
    • Conical Diamond
Frequency Response
  • 20Hz - 20kHz (±2dB)
Channel Separation
  • 25dB Typical (1kHz)
Compliance
  • 18µm/mN (Medium)
Output Voltage
  • 4mV (3.54cm/s)
Tracking Force
  • 1.5 ±0.2g
Weight
  • 5.8g
Stylus Replaceability
  • User-Replaceable
Replacement Stylus
  • Garrott KS-1
LOAD REQUIREMENTS
Recommended Load Resistance
  • 47kΩ
