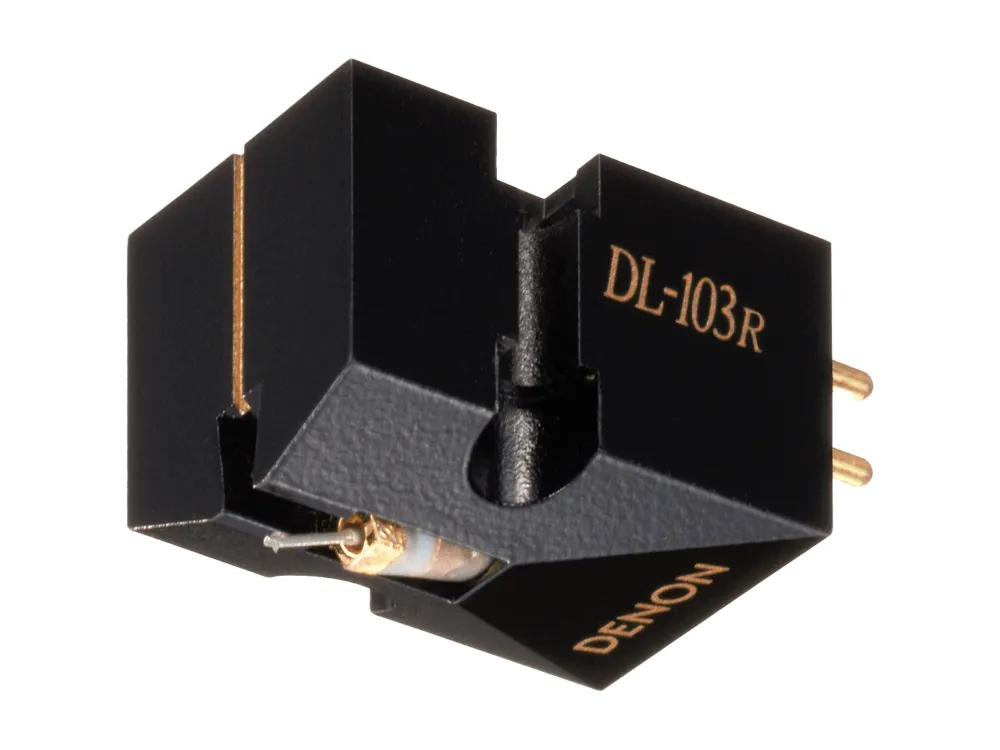

DENON DL-103R Moving Coil Cartridge

Flagship Moving Coil Phono Cartridge

The DL-103R is the evolved and reengineered version of Denon's original Moving Coil Cartridge. Designed to bring all your vinyl favourites to life for years to come.

  • Flagship sound
  • Moving coil (MC)
$749.00
Brand

Warranty Period : 2 years

Warranty Period : 2 years

It provides improved sound by using 6N copper coils wound with precision to the cantilever shaft. Sonic improvements over the DL 103 include heightened detail extraction, more bass depth, and enhanced clarity across the frequency range.

The sound of the DL 103R is outstanding. It has the characteristic of allowing the music to come across as a composition, and not as a group of disjointed parts.

Many other cartridges will give great separation of instruments and holographic imaging and detail, but they never seem to merge as a musical whole. The DL 103R excels in this area of making the parts merge into a full musical presentation, and still retains the detail and delineation of the instruments and voices.

This is one of the major reasons why the DL 103R is such a desirable cartridge.

Specification
GENERAL SPECIFICATIONS
Product Type
  • Phono Cartridge
Cartridge Principle
  • MC (Moving Coil)
Finish
  • Black
CARTRIDGE AND PHONO SPECIFICATIONS
Generator Coil
  • 6N (99.9999%) High-Purity Copper
  • 0.02mm Wire Diameter
Suspension
  • One-Point Suspension
Armature
  • Cross-Shaped Armature
Output Voltage
  • 0.25mV (1kHz, 50mm/s, horizontal direction)
Electrical Impedance
  • 14Ω ±20%
Compliance
  • 5 × 10^-3m/N (100Hz record)
Stylus Profile
  • Spherical (Conical)
Stylus Tip Radius
  • 16.5µm
Stylus Construction
  • 0.2mm Square Solid Diamond
Tracking Force
  • 2.5g ±0.3g
Stylus Replacement
  • Fixed Stylus
  • Whole Cartridge Replacement Required
PERFORMANCE
Frequency Response
  • 20Hz - 45kHz
Channel Balance
  • 1dB Maximum (1kHz)
Channel Separation
  • 25dB Minimum (1kHz)
LOAD REQUIREMENTS
Load Impedance
  • 100Ω Minimum
  • 40Ω (when using a transformer)
DIMENSIONS AND WEIGHT
Weight
  • 8.5g
Cartridge Height
  • 15mm
