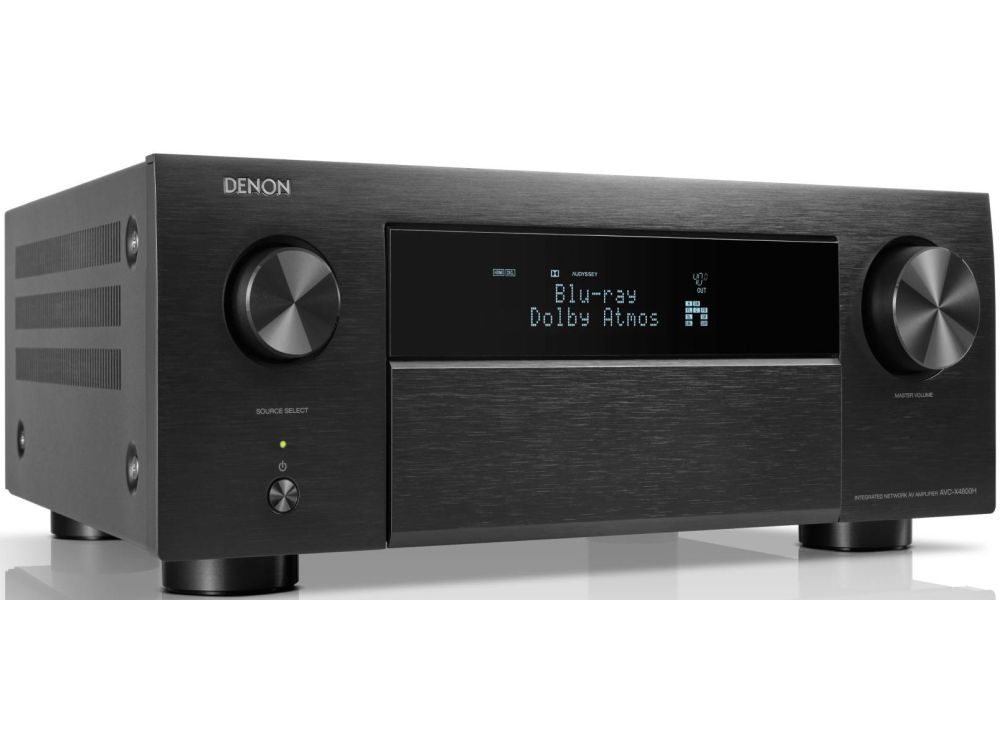

DENON AVC-X 4800H Home Theatre Amplifier

9.4 Ch. 125W 8K AV Receiver Powered by HEOS™

Designed and manufactured in Japan, the powerful AVC-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS Built-in, wirelessly stream your favorite music.

9.4 channels
125 watts per channel
8K Ultra HD
3D Audio
HEOS Built-in
7 HDMI inputs

$4,299.00

Brand

Denon

DESCRIPTION

Power and precision for dedicated home theaters

The 9.4-channel AVC-X4800H unleashes 125W per channel of refined power, immersive 3D audio, 8K video, and next-gen HDMI 2.1 for the ultimate big-room home theater experience.

Entertainment enhanced

Expertly engineered for cinematic sound

Built on Denon’s legacy of audio excellence, the AVC-X4800H delivers refined, high-fidelity sound for large home theaters. With immersive formats like Dolby Atmos, DTS:X Pro, and Auro-3D, experience every detail with stunning clarity, depth, and precision.

Your ultimate home entertainment hub

With 9.4 channels, 125W per channel, and a sleek, modern design, the AVC-X4800H delivers both power and elegance. Seven HDMI inputs and three outputs support 8K video and multiple zones for seamless connectivity and truly immersive experiences.

Why choose a Denon AVR?

For more than a century, Denon has been at the forefront of audio innovation—from introducing the first CD player to the first Dolby Atmos and 8K AVRs. We don’t just meet industry standards—we set them, delivering powerful, immersive sound that evolves with your home theater.

AVC-X4800H

Refined performance for large home theaters

Designed and built in Japan

At Denon’s state-of-the-art facility, traditional craftsmanship, modern innovation, and rigorous standards come together to create high-performance components built to last.

The ultimate 3D audio experience

Lose yourself in breathtaking 360-degree sound with Dolby Atmos, DTS:X Pro, Auro-3D, and IMAX Enhanced. Experience immersive audio that surrounds you from every direction, pulling you deeper into movies, music, and games.

Advanced 8K and HDMI support

With seven 8K-ready HDMI inputs and three outputs, enjoy stunning visuals with HDR10+ and Dolby Vision. Ultra-low latency ensures a smooth, lag-free gaming experience.

Optimize for your room

Enhance performance with room correction options from Audyssey (installed) or Dirac Live® Room Correction and Dirac Live® Bass Control (optional).

Precise room calibration

Perfect your sound with built-in Audyssey calibration, or dive deeper with optional Dirac Live for expert-level system tuning tailored to your space.

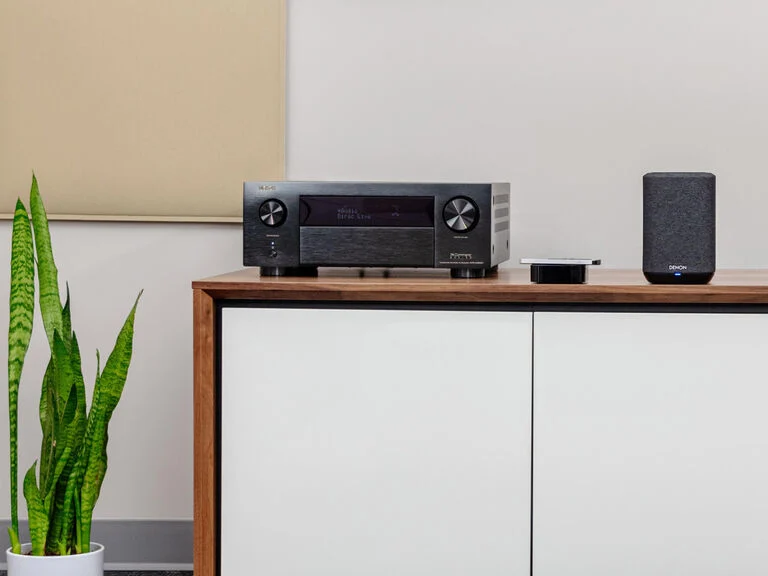

Wireless audio in every room

HEOS^® whole-home sound

Connect Powered by HEOS® speakers, sound bars, hi-fi systems, and receivers over Wi-Fi for easy whole-home audio. Stream high-res music from leading services, share sound from your connected devices, and control it all with the app or your voice. Play different music in each room or group rooms for seamless sound.

Features

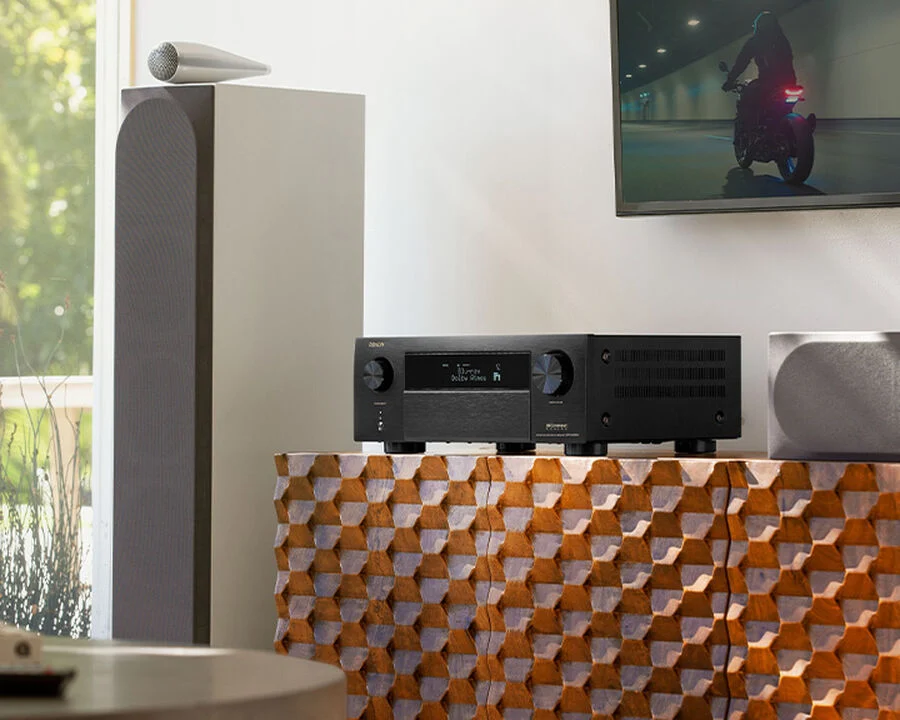

	Enveloping 3D audio Feel like you're in the centre of the action with enveloping 3D sound.

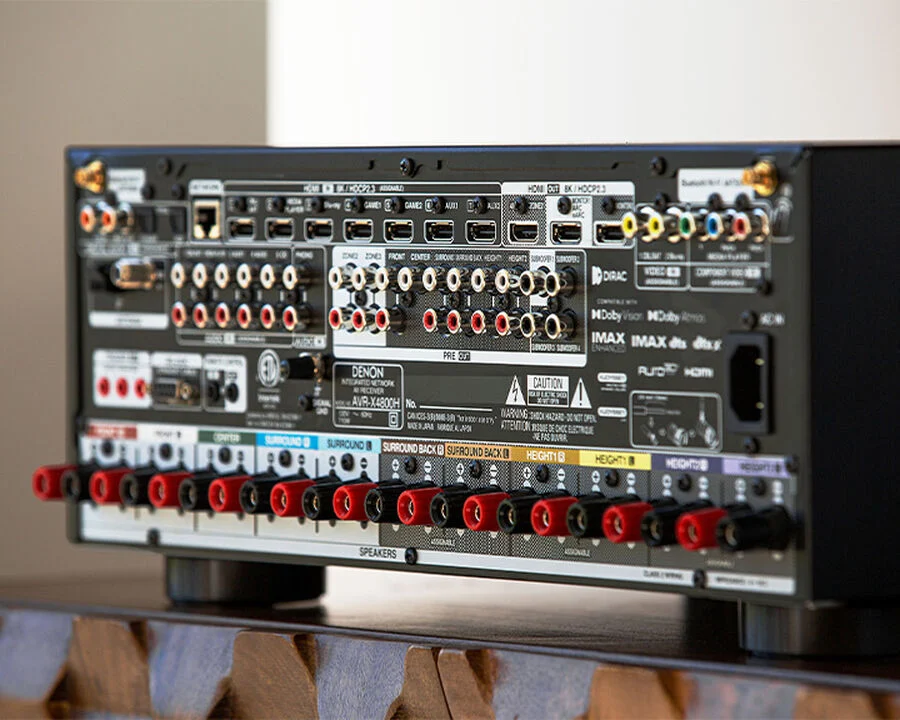

	Expert ready Take advantage of the wide variety of configuration options to best fit your space.

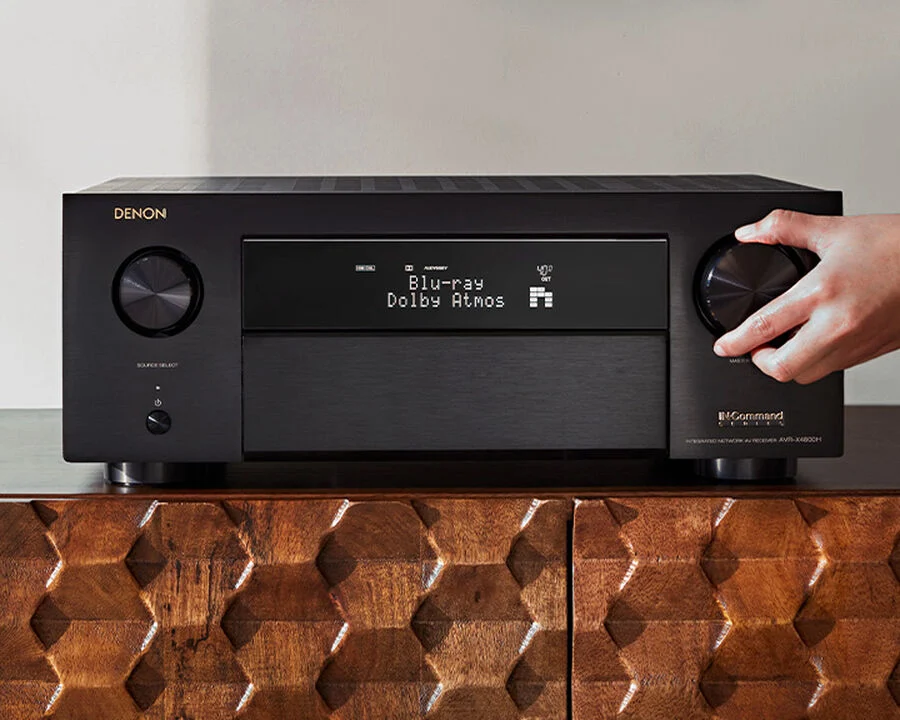

	Denon craftsmanship Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.
	Optimize your room Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional).

Specifications

Specification

Multichannel Surround
DTS	DTS HD Master DTS:X DTS Neural:X DTS Virtual:X
Dolby	Dolby TrueHD Dolby Atmos Dolby Atmos Height Virtualization Dolby Atmos Music Dolby Suround
Other	Auro 3D 360 Reality Audio MPEG H Multichannel Stereo
Maximum Number of Processing (pre-amp) Channels	11.4
Sound Enhancements
Enhancements	Mono Block Power Amp Construction Discrete Power Amplifier D.D.S.C. HD Digital (32bit) Pure Direct Clock Jitter Reducer AL32 Multichannel Alpha Processing DIRAC Live Upgradability Compressed audio restorer
Audyssey	Multi EQ XT32 Room Correction Dynamic EQ Dynamic Volume Low Frequency Control
Network
Network Features	Media Server RJ45 Ethernet Dual Band Wi-Fi Bluetooth Denon AVR Remote App for Smartphones HEOS App Control
Lossy Format Support	MP3 AAC WMA
Lossless Format Support	FLAC (Gapless, 24bit, 192kHz) ALAC (Gapless, 24bit, 192kHz) WAV (Gapless, 24bit, 192kHz) DSD (Gapless, up to 5.6MHz Stereo)
Streaming Service Support	Apple AirPlay 2 Spotify Connect Tidal Deezer Qobuz Amazon Music iHeartRADIO SoundCloud Internet Radio provided by TuneIn Stream Audio from USB Flash Drive Roon Tested
Digital Assistant Support	Amazon Alexa Apple Siri Google Assistant
HDMI
HDMI Feature Support	HDCP 2.3 HDMI 2.1 (8K 60Hz/4K 120Hz) HDR Auto Low Latency Mode (ALLM) Pass-Through for Gaming Variable Refresh Rate Quick Frame Transport 3D Signal Pass Through 8K Signal Pass Through 8K Scaling GUI Overlay on 8K DSD Audio over HDMI ARC and eARC (Audio Return Channel) Auto LipSync
HDR Support	HDR10+ HLG Dolby Vision Dynamic HDR
Inputs	7 Rear Inputs All inputs support 8K 60Hz All inputs support 4K 120Hz
Outputs	2 Main Zone Outputs 1 Second Zone Output
Multi-Room CI
Multi Romm Zones	3
Zone Source	HDMI (2ch Audio) Optical/Coaxial (2ch Audio) Network Streaming/USB Analogue Inputs
Zone Output	HDMI (2nd Zone Only) Pre-Out RCA (2nd and 3rd Zone) Speaker Outputs (assignable if channels aren't used by main zone)
Zone Control	HEOS App IP Control RS232 Control Web Control Denon AVR Remote App Control
Other Control Features	3.5mm Remote In/Out 3.5mm 12V DC Trigger Output HDMI Diagnostic system
Others
Auto Speakers Setup by Microphone	Audyssey MultEQ XT32 DIRAC Live (upgrade)
Front Display	2 Line FLD
GUI	Advanced Graphical User Interface 9 Languages Setup Assistant Quick Select Plus
Features	Sleep Timer Auto Power Off ECO Mode Bass Sync Optimized Bass Redirection Variable Crossover Metal Front Panel Made in Japan
Inputs / Outputs
HDMI	7 Rear Inputs 2 Main Zone Outputs 1 Second Zone Output
Multi Room Connectivity	HDMI Output (Zone 2) RCA Pre-Out (Z2+Z3) Speaker Output (Assignable if speaker channels aren't in use by main zone)
Analogue RCA	5 Stereo Inputs (assignable) 1 Phono MM Input
Digital Audio	2 Optical Inputs 2 Coaxial Inputs
Pre-Out	RCA 11 Channels 4 Independant Subwoofer Outputs 2nd Zone 3rd Zone
Speaker Terminals	11 screw terminals (+/-) (9 channels amplification)
Assingable Speaker Output Functions	Speakers A/B Height/Ceiling Channels Rear Surround Bi-Amp Drive Zone 2 Zone 3
Front Terminals	USB-A (Mass storage, accessible via HEOS App)
Specifications
Power Output	125W (8 Ohms, 20Hz-20kHz, 0.05% THD, 2ch Drive) 165W (6 Ohms, 1kHz, 0.7% THD, 2ch Drive) 200W (6 Ohms, 1kHz, 1% THD, 1ch Drive)
Amplification Channels	9 Discrete Amplifiers
General
System Remote Control	RC-1252
Power Consumption	710W PEAK 110W Idle (ECO Off) 65W (ECO On) 0.1W Standby 0.5W CEC Standby <2.0W Network Standby
Dimensions	434mm Width 389mm Depth 167mm Height (236mm With antennas up)
Weight	13.4kg

MULTICHANNEL SURROUND
Product Type	Integrated Network AV Amplifier 9.4 Channel AV Amplifier
Amplification Channels	9 Discrete Amplifiers
Processing Channels	11.4 Channels
DTS	HD Master X X Pro Neural:X Virtual:X
Dolby	TrueHD Atmos Surround Height Virtualization Atmos Music
Other Surround Formats	Auro-3D IMAX Enhanced 360 Reality Audio MPEG-H Multichannel Stereo
AUDIO PROCESSING AND CALIBRATION
Sound Enhancements	Monoblock Power Amplifier Construction Discrete Power Amplifier Design D.D.S.C. HD Digital AL32 Multichannel Processing Clock Jitter Reducer Pure Direct Compressed Audio Restorer Bass Sync Optimized Bass Redirection Tactile Transducer Support
Audyssey	MultEQ XT32 Sub EQ HT Dynamic EQ Dynamic Volume Low Frequency Containment
Dirac Live	Dirac Live Room Correction Ready Dirac Live Bass Control Ready Dirac Live Active Room Treatment Ready Optional Paid Upgrade Required
NETWORK AND STREAMING
Network Connectivity	RJ45 Ethernet Dual Band Wi-Fi 2.4GHz / 5GHz HEOS Built-in Media Server Support Internet Radio provided by TuneIn
Music Streaming	Apple AirPlay 2 Spotify Connect TIDAL Connect Qobuz Connect Amazon Music Deezer iHeartRadio SoundCloud Roon Ready
App Support	Denon AVR Remote App HEOS App
Voice Assistant Compatibility	Amazon Alexa Google Assistant Apple Siri
SUPPORTED AUDIO FORMATS
PCM	MP3 WMA MPEG-4 AAC WAV Up to 24-bit / 192kHz FLAC Up to 24-bit / 192kHz ALAC Up to 24-bit / 192kHz
DSD	DSD64 2.8MHz DSD128 5.6MHz
HDMI
HDMI Inputs	7 x Rear HDMI Inputs All Inputs Support 8K/60Hz All Inputs Support 4K/120Hz
HDMI Outputs	2 x Main Zone HDMI Outputs 1 x Zone 2 HDMI Output
HDMI Format Support	HDMI 2.1 HDCP 2.3 8K/60Hz 4K/120Hz HDR HDR10+ HLG Dolby Vision Dynamic HDR BT.2020 Colour 3D Signal Pass-Through DSD Audio over HDMI
HDMI Features	8K Pass-Through 8K Upscaling GUI Overlay on 8K eARC ARC Auto LipSync Auto Low Latency Mode Variable Refresh Rate Quick Frame Transport

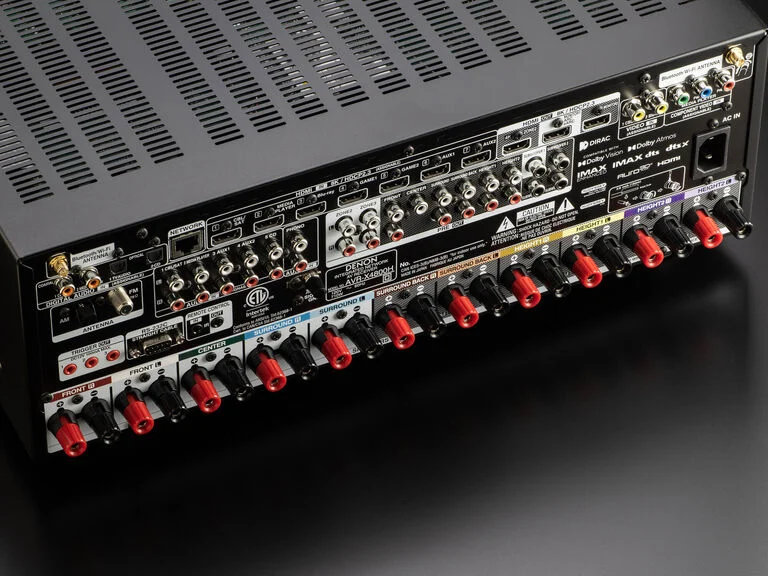

INPUTS AND OUTPUTS
Analogue Audio Inputs	5 x Stereo RCA Inputs 1 x Phono MM Input
Digital Audio Inputs	2 x Optical Digital Inputs 2 x Coaxial Digital Inputs Digital Audio Interface Format
Video Inputs	2 x Composite Video Inputs 1 x Component Video Input
Pre-Out	11 Channel RCA Pre-Out 4 x Independent Subwoofer Outputs Zone 2 RCA Pre-Out Zone 3 RCA Pre-Out
Speaker Outputs	11 Pair Screw-Type Speaker Terminals 9 Channels of Amplification Compatible Speaker Impedance 4 - 16 ohms
Assignable Speaker Output Functions	Speakers A/B Height Channels Ceiling Channels Dolby Atmos Enabled Channels Surround Back Bi-Amp Drive Zone 2 Zone 3
Front Panel Connections	1 x USB-A Mass Storage Playback 1 x Setup Microphone Input 1 x Headphone Output
BLUETOOTH
Bluetooth Functions	Bluetooth Receive Bluetooth Transmit Bluetooth Headphone Output Bluetooth + Speakers Output Mode Bluetooth Only Output Mode 1 Pair of Bluetooth Headphones at a Time
Bluetooth Profiles and Codec	A2DP AVRCP SBC Power Class 1 Approx. 30m Line of Sight Range
MULTI-ZONE AND CONTROL
Multi-Zone Support	Main Zone Zone 2 Zone 3 All Zone Stereo TV Audio Sharing
Zone Sources	HDMI Zone 2 2 Channel PCM Optical / Coaxial 2 Channel PCM Network Streaming USB Analogue Inputs
Zone Outputs	HDMI Output Zone 2 RCA Pre-Out Zone 2 Zone 3 Assignable Speaker Output Zone 2 Zone 3
Control	IP Control Web Control RS-232C Remote In / Out 3 x 12V Trigger Outputs 12V DC / 100mA Each 300mA Total Domotz Pro OvrC
DISPLAY AND INTERFACE
Front Display	2 Line FLD
GUI	Advanced Graphical User Interface GUI Overlay on 8K Setup Assistant Quick Select Plus 9 Languages
AMPLIFIER SPECIFICATIONS
Power Output	125W 8 ohms 20Hz - 20kHz 0.08% THD 2 Channels Driven 165W 6 ohms 1kHz 0.7% THD 2 Channels Driven 200W 6 ohms 1kHz 1% THD 1 Channel Driven
GENERAL SPECIFICATIONS
Power Requirements	AC 230V 50 / 60Hz IEC C13 Inlet
Power Consumption	710W PEAK 110W Idle (ECO OFF) 65W Idle (ECO ON) 0.1W Standby 0.5W Standby (CEC ON) <2.0W Standby (Network Control On)
Remote Control	RC-1252 2 x AAA Batteries
Dimensions	434mm Width 389mm Depth 167mm Height 236mm Height (Antennas Vertical)
Weight	13.4kg Net
