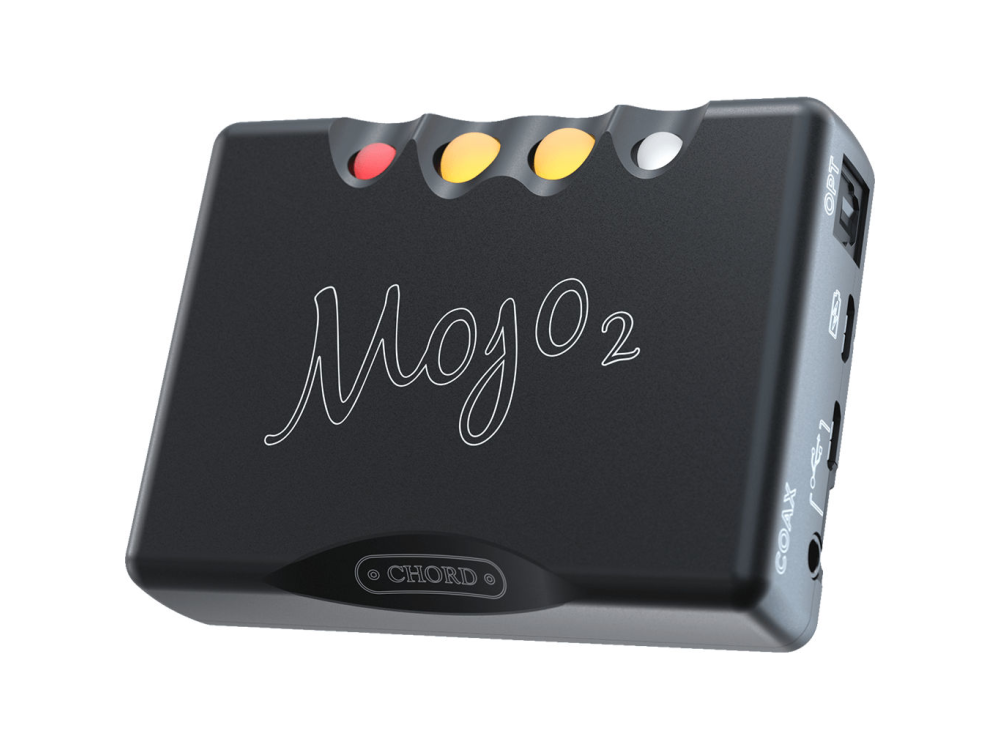

CHORD ELECTRONICS Mojo 2 Portable DAC

Portable DAC/Headphone Amplifier

Mojo 2 is the most advanced DAC/headphone amplifier in the world.  It plays your favourite music with class-leading detail and clarity, right up to studio-grade levels.

$799.00

Warranty Period : 1 Year (3 months on battery)

Warranty Period : 1 Year (3 months on battery)

The British designed and built Mojo 2 is the most advanced portable DAC and headphone amplifier in the world today.

Multiple winner of ‘Best DAC’ in the What Hi-Fi? Awards 2022, (and ’23, ’24 and ’25!) the Mojo 2 is entirely engineered around a powerful, custom-coded FPGA processor and benefits from several unique technologies.

Central to the new Mojo 2 is a new 4.4 m headphone output, switchable USB-C charging, plus the world’s first lossless DSP, an advanced ‘digital tone control’ without any degradation in sound quality. The ‘UHD DSP’ gives Mojo 2 unrivalled compatibility with today’s wide-ranging headphones, plus unparalleled flexibility with partnering equipment.

A further key feature is the new menu system, navigated via the new (fourth) control sphere, bringing mute, crossfeed, button-lock, switchable USB-C charging and tone control adjustment.

Mojo 2 offers greatly improved battery management, with faster charging rates, a huge 75 % reduction in power loss, plus a 9 % capacity gain.

The switchable USB-C data/charging input adds greater flexibility, transparency has been greatly boosted, thanks to an improved noise-shaper, lower distortion and greater neutrality, plus Mojo 2 can even be taken wireless with the Poly streamer/server.

Handmade in the UK with a robust CNC-milled aircraft grade aluminium chassis, Mojo 2 offers unrivalled performance, class-leading sound and peerless build quality.

Features
  • Improved FPGA: more resolution, power and efficiency

  • Improved battery: FPGA-controlled management plus improved capacity

  • New menu function

  • 'UHD' DSP: advanced EQ adjustment for headphones, file formats and personal taste

  • Improved WTA Filtering: 40 DSP cores for better transparency and lower noise

  • High-speed USB-C input

  • Two Headphone Outputs with independent volume control memory

    • 3.5mm Stereo Headphone Out
    • 4.4mm Balanced Stereo Headphone Out
  • Wireless-ready - simply add the Poly streamer/server

Specification

Dimensions

  • 83mm Width
  • 62mm Depth
  • 22.9mm Height

Weight

  • 185g

Digital Inputs

  • 3.5mm Coaxial Input, Dual-Data Coaxial
  • TOSLink Optical
  • Micro-USB
  • USB-C

Outputs

  • 1x 3.5mm Stereo Headphone Output
  • 1x 4.4mm Balanced Stereo Headphone Out

THD

  • 0.0003% @ 2.5V/300 Ω

Dynamic Range

  • 125.7dB A Weighted

Noise

  • 2.7 MicroVolts A Weighted
  • No measurable noise floor modulation

Distortion and Noise

  • 0.00027% at 2.5V, 300 Ohms

Power Output at 1% Distortion

  • 90mW at 300 Ohms (5.2V RMS)
  • 600mW at 30 Ohms (4.2V RMS)

Output Impedance

  • 0.06 Ohms

Stereo Separation

  • 118dB at 1kHz

Charging

  • Approx. 8 Hours battery life
  • 5V DC, 2A USB Power Supply required for charging
    • Micro USB Charging Port
    • USB-C Data and Charging Port
