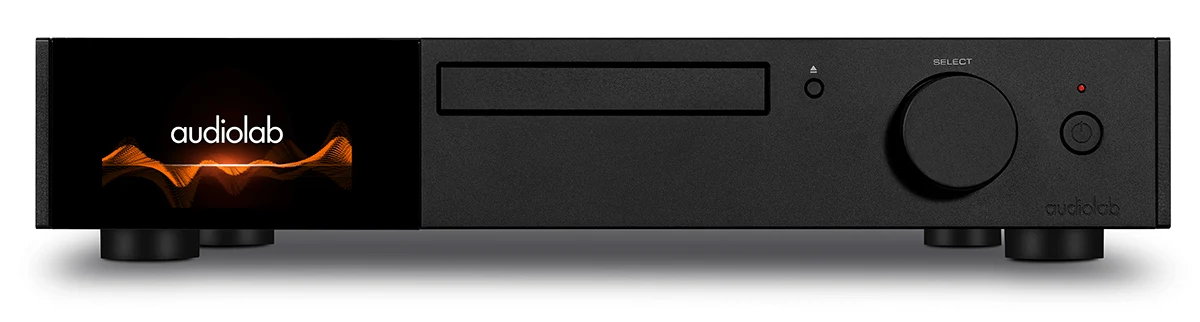

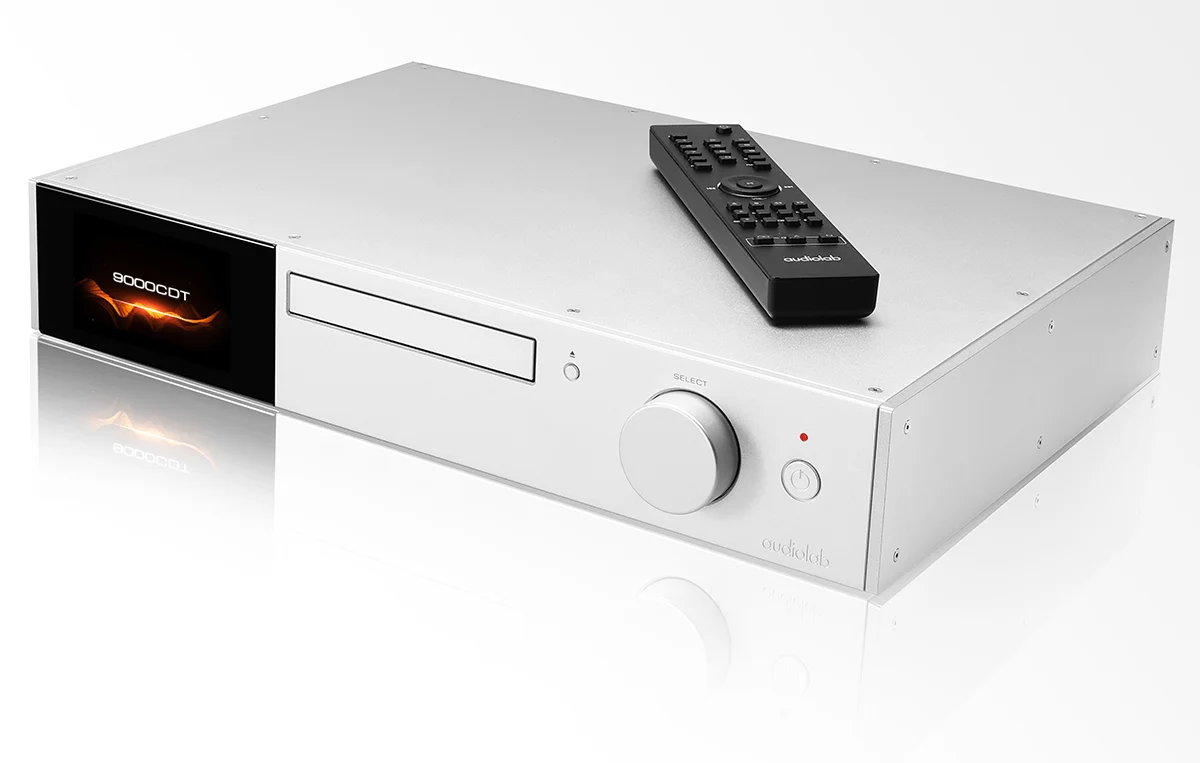

AUDIOLAB 9000CDT CD Transport

audiolab’s new 9000 Series represents a new standard in home audio for the connoisseur.

With CD still being a ‘go to’ medium for many audiophiles, the 9000CDT is a premium offering bringing digital music playback to match the beast that is the audiolab 9000A.

The 9000CDT is a dedicated CD transport that incorporates a high-end mechanism developed to suit the industry benchmarks set by audiolab performance philosophies.

$2,085.00 Regular Price $2,299.00
Brand

Warranty Period : 1 year (3 with registration)

CD for the Purist

Following in a long list of award-winning audiolab CD playback devices, the 9000CDT uses a high-precision optical system with an electronic data buffer for accurate and seamless CD playback. The read-ahead digital buffer to reduce disc-reading failures, helping the 9000CDT play scratched and damaged CDs that may be unreadable by conventional mechanisms.

Isolation from Vibration

To ensure a flawless signal reaches the accompanying DAC, the coaxial output of the 9000CDT is fed from a differential line driver. The master clock is controlled by a high-accuracy crystal oscillator, enabling the digital output from both coaxial and optical sockets to exhibit vanishingly low levels of jitter (digital distortion).

The low-friction loading tray, sturdy aluminium base and chassis of the 9000CDT work to tackle vibrations that are experienced due to the mechanics of a high-spin-velocity motor. Further, the transport is mounted in its own, electromagnetically shielded enclosure with a dedicated power supply. All of which contribute to the exemplary digital signal extraction, while the proven resonance reduction further improves performance and onward effect in ancillary Hi-Fi equipment and signal chains.

Digital Files in Any Format

In addition to the class-leading CD playback design, the 9000CDT also offers digital music file compatibly via a dedicated USB ‘Type A’ connection, to the rear of the unit. Every significant hi-res and lossless audio format is catered for, including WAV, AAC and WMA, as well as compressed legacy MP3 formats.

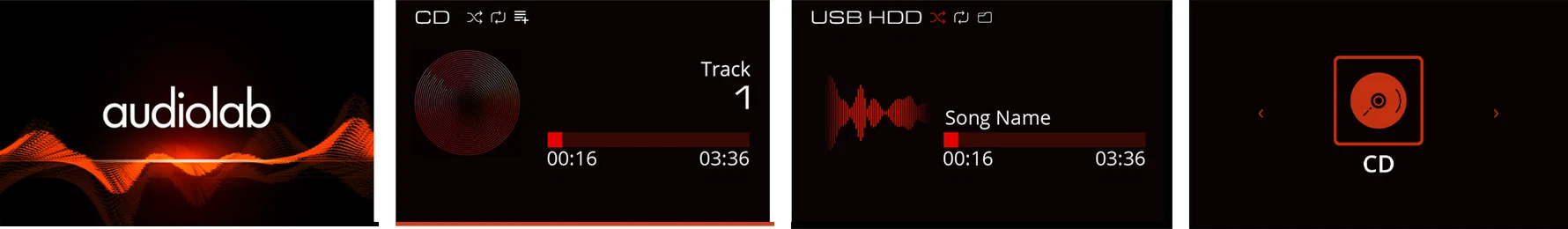

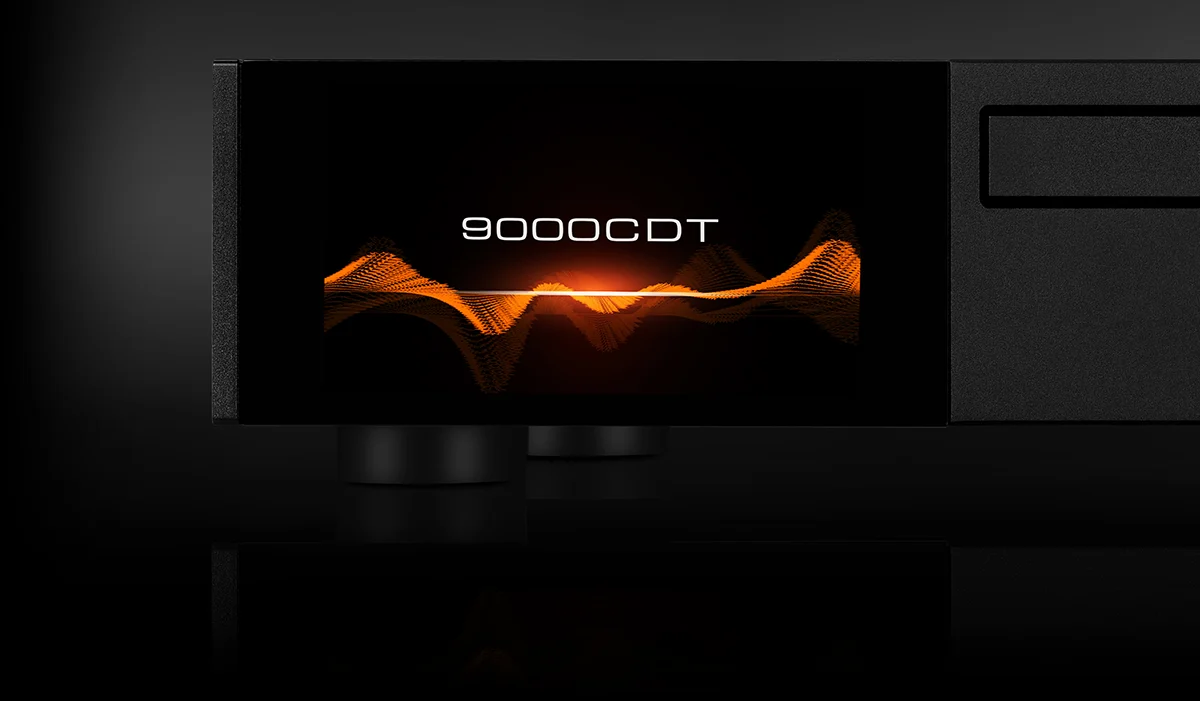

Sporting a 4.3” IPS LCD screen with a detailed but simple to use GUI, the 9000CDT offers a vivid representation of information including system settings, format, folder, track details and other data.

Specification

General Description

CD Transport

Design Philosophy And Core Technology

  • CD/CD-R/CD-RW compatible
  • USB storage device playback function
  • (MP3/WMA/WAV)
  • Full colour display
  • Interactive GUI
  • Auto-source selection

USB Storage Device Audio Format

  • WAV
  • MP3
  • WMA

USB Storage Device File System

  • FAT12
  • FAT16
  • FAT32

Digital Output Amplitude

  • 500 +/-50mVpp

Output Impedance

  • 75Ω

Frequency Response

  • -0.01 dB (20Hz-20kHz, ref.1 kHz)

Total Harmonic Distortion (THD)

  • < 0.002%

Sampling Rate

  • 44.1kHz

Digital Output Interface

  • 1 x Coaxial
  • 1 x Optical

Standby Power Consumption

  • < 0.5W

Power Requirements (according to region)

  • 220-240V - 50/60Hz
  • 100-120V - 50/60Hz

Product Dimensions

  • 444mm Width
  • 89mm Height
  • 322mm Depth

Carton Size

  • 512mm Width
  • 161mm Height
  • 470mm Depth

Net Weight

  • 5.74kg

Gross Weight

  • 7.6kg
GENERAL SPECIFICATIONS
Product Type
  • CD Transport
  • USB Mass Storage Audio Player
Transport System
  • High-Precision Optical System
  • Read-Ahead Digital Buffer
  • Low-Friction Loading Tray
USB FUNCTIONS
USB Mass Storage Input
  • 1 x USB-A
Supported Audio Formats
  • MP3
  • WMA
  • AAC
  • WAV
Supported File Systems
  • FAT12
  • FAT16
  • FAT32
DIGITAL OUTPUTS
Digital Audio Outputs
  • 1 x Coaxial Digital Output (RCA)
  • 1 x Optical Digital Output (TOSLink)
Digital Output Level
  • 500 ±50mVpp
Output Impedance
  • 75Ω
Sampling Rate
  • 44.1kHz
  • 48kHz USB Files
    • Resampled to 44.1kHz
Frequency Response
  • -0.01dB (20Hz - 20kHz, ref. 1kHz)
Total Harmonic Distortion
  • <0.002%
GENERAL SPECIFICATIONS
Power Requirements
  • 100 - 120V AC or 220 - 240V AC
  • 50/60Hz
Power Consumption
  • <0.5W Standby
DIMENSIONS AND WEIGHT
Dimensions
  • 444mm Width
  • 342mm Depth
  • 89mm Height
Weight
  • 5.74kg
