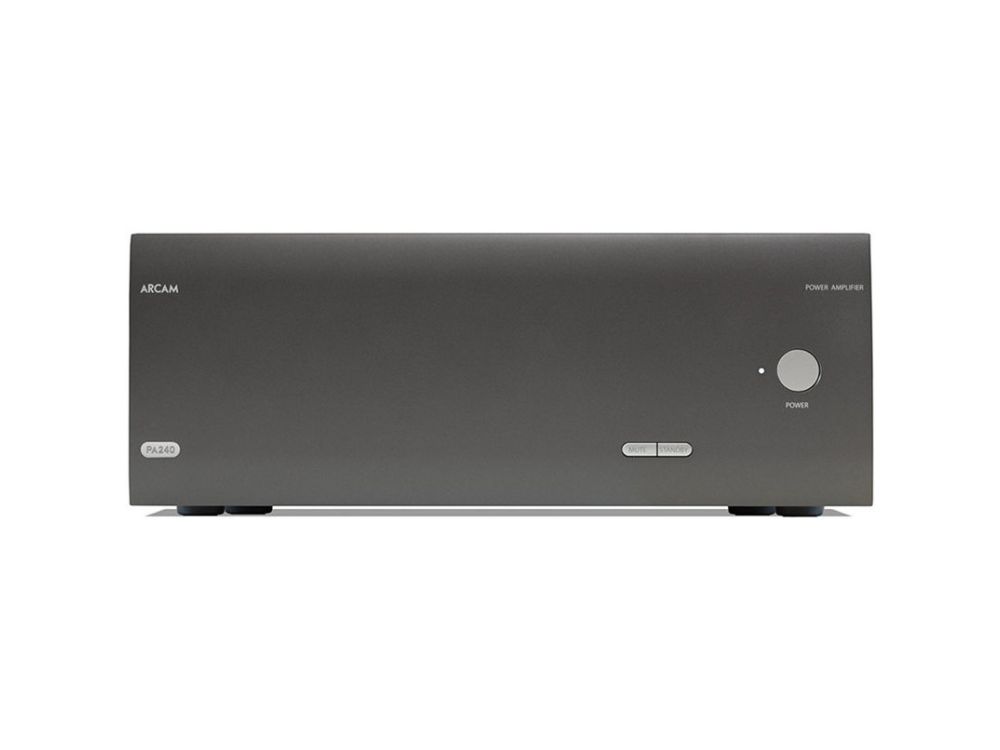

ARCAM PA240 2 Channel Class G Power Amplifier

$5,995.00

Brand

Arcam

DESCRIPTION

Exceptional Power, Immersive Sound

The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Features

Features
2 Channel Power Amplifier 2x 225W Class G Amplification (8ohm, 20Hz-20kHz, 0.2% THD) 1x 790W Class G Bridged Mode (8ohm, 20Hz-20kHz, 0.2% THD) Class G Amplification with 50W of class A operation Toroidal transformer Stereo, Dual Mono, or Bridged operation Ethernet, RS232 control Switchable RCA or Balanced XLR Inputs

Specifications

Specification

Continuous power output at 0.2% THD per channel	225W, 8ohm, 2ch Drive, 20Hz-20kHz 380W, 4ohm, 2ch Drive, 20Hz-20kHz 790W 8ohm BRIDGED 1ch Drive, 20Hz-20kHz 0.001% THD 8ohm, 1kHz, 80% Power
Inputs	Input Sensitivity: (200W, 8ohm) 1.15V RMS RCA 2.3V RMS XLR 110dB Signal to Noise Ratio (A-wtd), 50W / 8Ohm 10kOhm Input Impedance 20Hz - 20kHz =/-0.5dB Frequency Response
General	110-120V, or 220-240V, 50-60Hz Power Consumption: 1500W PEAK 90W Idle <0.5W Standby Dimensions: 433mm Width 420mm Depth 177mm Height 18kg

GENERAL SPECIFICATIONS
Product Type	Power Amplifier
Amplifier Channels	2
Amplifier Class	Class G
Operating Modes	Stereo Dual Mono Bridged Mono
Amplifier Features	Toroidal Transformer Paralleled Transistor Output Stages Acoustically Damped Chassis
AMPLIFIER SPECIFICATIONS
Power Output	225W (2 channels driven, 20Hz - 20kHz, 8Ω, 0.2% THD) 380W (2 channels driven, 20Hz - 20kHz, 4Ω, 0.2% THD) 790W (1 channel driven, Bridged Mono, 20Hz - 20kHz, 8Ω, 0.2% THD)
Class A Operation	50W
Harmonic Distortion	0.001% (80% power, 8Ω, 1kHz)
Speaker Load	4 - 16Ω
ANALOGUE INPUTS
Inputs	2 x RCA Unbalanced Inputs 2 x XLR Balanced Inputs
Input Selection	Switchable RCA or XLR
Input Sensitivity	1.15Vrms (RCA, 200W / 8Ω) 2.3Vrms (XLR, 200W / 8Ω)
Input Impedance	10kΩ
Signal-to-Noise Ratio	110dB (A-weighted, 50W / 8Ω)
Frequency Response	20Hz - 20kHz ±0.05dB
OUTPUTS
Speaker Outputs	2 x Speaker Terminal Pairs
Line Outputs	2 x RCA Passive Pass-Through Outputs Copies RCA Input Signal Only
CONNECTIVITY
Control Interfaces	Ethernet RS232 12V Trigger Input 12V Trigger Output
USB Port	USB Service Port Software Upgrades Only
GENERAL SPECIFICATIONS
Power Requirements	110 - 120V AC or 220 - 240V AC 50 - 60Hz
Power Consumption	1.5kW (Maximum) 90W (Idle, Typical) <0.5W (Standby) 2W (Network Standby)
Thermal Dissipation	Approximately 340 BTU/hour (Idle, Typical)
DIMENSIONS AND WEIGHT
Dimensions	433mm Width 425mm Depth 177mm Height
Weight	18kg
