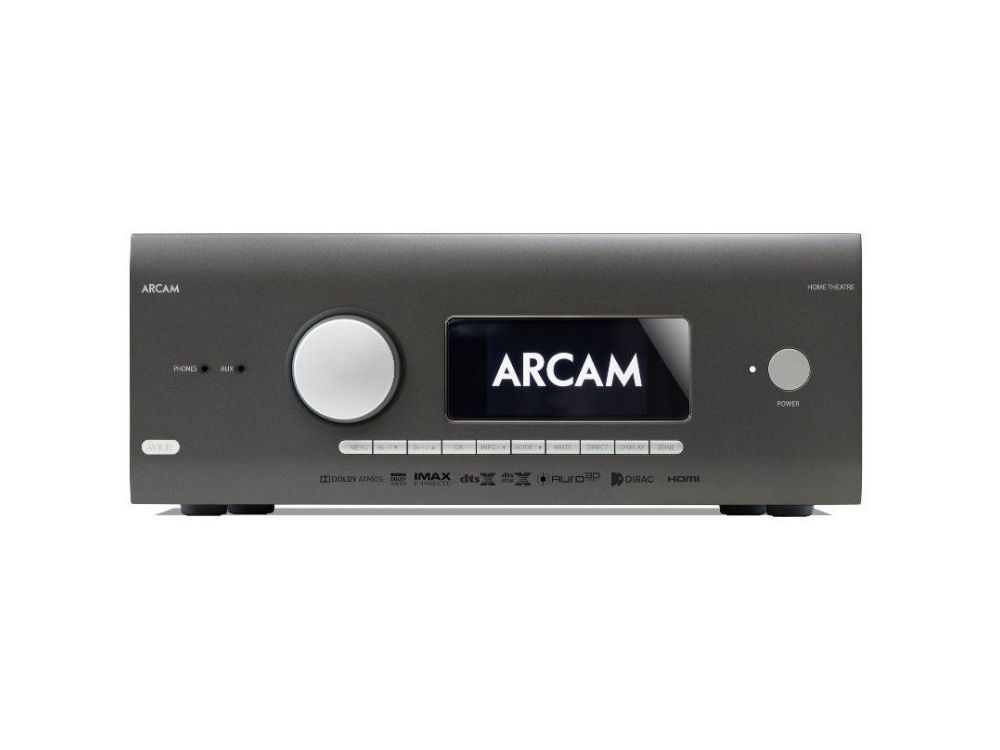

ARCAM AVR31 Home THeatre Receiver

HDMI 2.1 Class G AV Receiver

$13,995.00

Brand

Arcam

DESCRIPTION

Rich Musicality + Immersive Sound = Stunning Realism

The AVR31 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR31 can deliver incredible theatre experiences.

The Arcam AVR31 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR31 features an over engineered toroidal transformer for real world power with low noise. The 7 channels of Class G amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast® (AUDIO), Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr31/

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

Features

Features
16 Channels of Dolby Atmos, DTS:X, and AURO-3D Decoding 7 HDMI Inputs, 3 HDMI Outputs including Zone 2. eARC Compatible HDMI 2.1 with HDCP2.3 All inputs support 8K@60FPS, and 4K@120FPS Supports Dolby Vision, HDR10+, HDR10, and HLG Includes Dirac Live Room Correction Ready for Dirac Live Bass Control. _{Purchase a license at https://www.dirac.com/online-store/} Dual ESS 9026PRO Audiophile DACs with ESS Reference Voltage Regulators 7 Chanels of high power Class G Amplification Wi-Fi / Ethernet, RS232, and IR Control Google Chromecast built-in for streaming audio Apple Airplay2 Bluetooth aptX HD Free MusicLife iOS and Android UPnP app Supports MQA Roon Ready

Specifications

Specification

Continuous Power Output per channel
2 channels driven, 20Hz ‑ 20kHz, <0.02% THD	120W into 8 Ohms 200W into 4 Ohms
2 channels driven, 1kHz, 0.2% THD	140W into 8 Ohms 220W into 4 Ohms
7 channels driven, 1kHz, 0.2% THD	100W into 8 Ohms 180W into 4 Ohms
Residual noise & hum (A-wtd)	<0.15mV
Stereo Line Inputs
Maximum input	4.5V RMS
Nominal sensitivity (User Adjustable)	1V 2V 4V
Input impedance	47kΩ
Signal/noise ratio (A-wtd ref 100W)	100dB 110dB Stereo Direct
Frequency response	20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level	1V RMS (max. 5V RMS)
Output impedance	560Ω
THD+N (20Hz—20kHz)	–100dB
Headphone Output
Maximum output level into 32Ω	5Vrms
Output impedance	<100Ω
General
Mains Voltage	220-240V, 50Hz
Power Consumption	1500W PEAK (Thermal dissipation approx. 5200 BTU/Hour) 100W Idle (Thermal Dissipation approx. 350 BTU/Hour) <0.5W Standby
Dimensions	433mm Width 425mm Depth 171mm Height
Weight	18.1kg
Supplied Accessories	Mains Lead Remote Control 2x AAA Batteries Quick Start Guide (full manual online HERE) DAB/FM Antenna 3x Wi-Fi Bluetooth Antennas Calibration Microphone USB Cable

GENERAL SPECIFICATIONS
Product Type	AV Receiver HDMI 2.1 Class G AV Receiver
Powered Channels	7
Processing Channels	16
Tuner	FM DAB (market dependent)
AMPLIFIER SPECIFICATIONS
Amplifier Class	Class G
Power Output	120W (2 channels driven, 20Hz - 20kHz, 8Ω, <0.02% THD) 200W (2 channels driven, 20Hz - 20kHz, 4Ω, <0.02% THD) 140W (2 channels driven, 1kHz, 8Ω, 0.2% THD) 220W (2 channels driven, 1kHz, 4Ω, 0.2% THD) 100W (7 channels driven, 1kHz, 8Ω, 0.2% THD) 180W (7 channels driven, 1kHz, 4Ω, 0.2% THD)
Residual Noise and Hum	<0.15mV (A-weighted)
ANALOGUE INPUTS
Line Inputs	6 x Stereo RCA Line Inputs (Rear) 1 x 3.5mm Stereo Line Input (Front AUX)
Maximum Input Level	4.5Vrms
Input Sensitivity	1V 2V 4V User Adjustable
Input Impedance	47kΩ
Signal-to-Noise Ratio	100dB (Normal, A-weighted, ref. 100W) 110dB (Stereo Direct, A-weighted, ref. 100W)
Frequency Response	20Hz - 20kHz ±0.2dB
DIGITAL INPUTS
HDMI Inputs	7 x HDMI
Digital Audio Inputs	4 x Coaxial Digital Inputs (RCA) 2 x Optical Digital Inputs (TOSLink)
HDMI Version	HDMI 2.1
HDCP Version	HDCP 2.3
HDMI Input Resolution Support	Up to 8K, 60Hz Up to 4K, 120Hz
HDR Support	Dolby Vision HDR10+ HDR10 HLG
HDMI Features	eARC
AUDIO PROCESSING
Surround and Immersive Audio	Dolby Dolby Atmos Dolby TrueHD Dolby Digital Plus Dolby Digital 5.1 Dolby Surround DTS DTS:X DTS-HD Master Audio DTS 5.1 DTS-ES 6.1 Matrix DTS-ES 6.1 Discrete DTS 96/24 DTS Neural:X AURO-3D IMAX Enhanced
Room Correction	Dirac Live Dirac Live Bass Control Ready Optional Licence Required
DAC Configuration	2 x ESS 9026PRO DACs ESS Reference Voltage Regulators
Additional Audio Format Support	MQA
NETWORK AND STREAMING
Network Interfaces	Wi-Fi Ethernet
Streaming Support	Apple AirPlay 2 Google Chromecast Built-In Spotify Connect Tidal Connect UPnP Roon Ready
Network Application	MusicLife iOS Android UPnP Playback
CONNECTIVITY
Bluetooth	aptX HD
Control Interfaces	RS232 IR Control
USB Port	Firmware Update 5V / 0.5A
OUTPUTS
HDMI Outputs	2 x Main Zone HDMI Output 1 Supports eARC 1 x Zone 2 HDMI
Speaker Outputs	7 x Speaker Terminal Pairs
Preamplifier Outputs	15 x RCA Channel Outputs 2 x RCA Subwoofer Outputs
Digital Audio Output	1 x Optical Digital Output (TOSLink)
Preamplifier Output Level	1Vrms Nominal 5Vrms Maximum
Preamplifier Output Impedance	560Ω
Preamplifier THD+N	-100dB (20Hz - 20kHz)
Headphone Output	1 x 3.5mm Stereo 5Vrms Maximum Output (32Ω) <100Ω Output Impedance
MULTI-ZONE
Zone 2 Outputs	1 x HDMI 1 x Stereo RCA Line Output
Zone 2 Control	IR 12V Trigger
GENERAL SPECIFICATIONS
Power Requirements	110 - 120V AC or 220 - 240V AC 50/60Hz
Power Consumption	1.5kW (Maximum) 100W (Idle, Typical) <0.5W (Standby)
Thermal Dissipation	Approximately 5200 BTU/hour (Maximum) Approximately 350 BTU/hour (Idle, Typical)
Supplied Accessories	Mains Lead Remote Control 2 x AAA Batteries Quick Start Guide DAB/FM Aerial 3 x Wi-Fi/Bluetooth Antennas Calibration Microphone USB Cable
DIMENSIONS AND WEIGHT
Dimensions	433mm Width 425mm Depth (including speaker terminals) 171mm Height (including feet)
Weight	18.1kg
