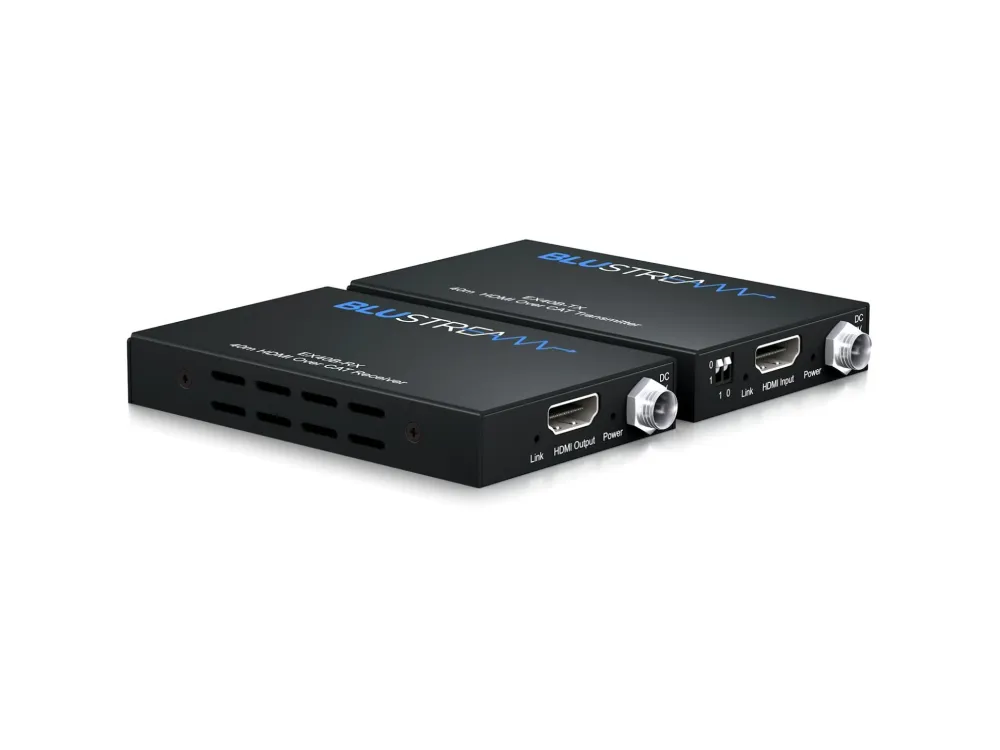

Blustream EX40B-Kit HDMI Extender Set

• Extends HDMI up to distances of 40m over a single CAT cable (1080i up to 50m)

• Supports video resolutions 480i-1080p*

• Supports bi-directional IR from input and output locations

• Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

• Supports full 3D signal display

• Supplied with Blustream IR receiver and emitter

• Requires local power at both transmitter and receiver

• EDID management

• HDCP 1.4 compliant

Box Contents

1 x EX40B-TX
1 x EX40B-RX
2 x 5V/1A DC Power Supply
1 x IR Emitter
1 x IR Receiver
2 x Mounting Brackets
1 x User Manual

• Video Input:

  - EX40B-TX: 1 x HDMI Type A, 19-pin, female

  - EX40B-RX: 1 x RJ45

• Video Output:

  - EX40B-TX: 1 x RJ45

  - EX40B-RX: 1 x HDMI Type A, 19-pin, female

• IR Input: 1 x 3.5mm stereo jack

• IR Output: 1 x 3.5mm mono jack

• Power Supply: 5V/1A DC, screw type connector, one per balun required

• Dimensions With Connections (W x H x D): 58 x 15 x 96mm

• Shipping Weight: 0.5kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Mounting Kit Included
