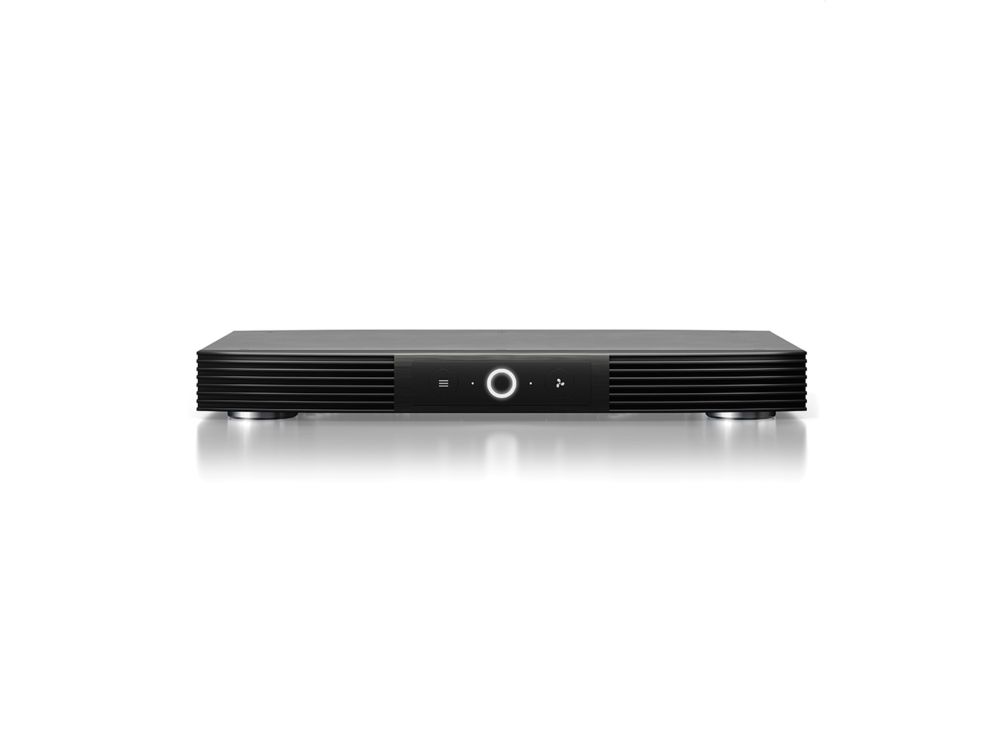

AIRCOM S6 AV Dual Fan Rear Exhaust Cooler

AIRCOM S6  - Receiver and AV Cooling Fan System

$219.00
Brand

Warranty Period : 2 years

Sold as : 1 Unit

Warranty Period : 2 years

Sold as : 1 Unit

Temperature Regulation

A low-noise cooling fan system designed to sit on top of AV equipment such as receivers, routers, game consoles, and other cabinet components. By maintaining optimal operating temperatures, it helps prevent overheating, ensures consistent performance, and prolongs the life of your devices.

The front-facing controller includes a smart thermostat trigger and adjustable fan speed settings for precise temperature management. Housed in a durable steel enclosure, the system uses two dual-ball bearing blowers to draw heat from the components and exhaust it through the top.

Thanks to the dual ball bearings, the unit can be mounted either horizontally or vertically. Its slim, low-profile design makes it ideal for use in tight or enclosed spaces. Comes with a corded power adapter for easy connection to a wall outlet.

Intelligent Programming

The system offers three programmable settings, including two temperature-activated trigger modes. The fans can also be set to run continuously or remain off entirely. Each active mode features four selectable fan speeds, allowing you to control how fast the fans operate when triggered. This provides a balance between optimal airflow and minimal noise, tailored to your specific needs.

Design and Construction
Each system features dual-ball bearing fans rated at 67,000 hours and are certified by CE and RoHS. Fans contain a PWM-controlled motor used to minimize noise during speed variations and are suspended in mid-air with silicone mounts to absorb vibrations. A low-profile design allows the unit to fit in applications with a limited height clearance. Aluminum and steel construction enables additional components up to 30 pounds to be stacked on top.
  • A quiet fan system designed for cooling receivers, routers, game consoles, and other AV components.
  • Protects components from overheating, performance issues, and shortened lifespans.
  • Programming features two thermal trigger modes and four speed control options.
  • Contains two dual-ball bearing blowers with PWM-controlled motors to minimize noise.
  • Dimensions: 11.6 x 6.3 x 1.5 in. | Exhaust: Rear | Airflow: 100 CFM | Noise: 20 dBA | Bearings: Dual Ball
Manufacturer

AC Infinity Inc

Product NameAIRCOM S6
ModelAI-ACS6
UPC Code854759004624
Dimensions30 x 16 x 4 cm
Cord Length1.8m
Number of Fans2
ExhaustRear
Total Airflow100 CFM
Total Noise20 dBA
Static Pressure1 mm- H20
Operating Voltage12V DC
Power5.2 W
Current0.43 A
Wall Adapter Input100 to 240V AC
Operating Humidity35 to 85% RH
Operating Temperature-17C to 70C
Fan BearingsDual Ball
Mounting PositionsHorizontal or Vertical
L10 Life Expectancy67,000 Hours (7+ years)
Top Weight Capacity14 KG
Unit Weight3 KG
